Garland GTGG24-GT24 Heavy-Duty Gas Griddle - 56,000 BTU

SKU
34000-071

Garland GTGG24-GT24 Heavy-Duty Gas Griddle

STANDARD FEATURES:

  • Thermostat-controlled models feature precise control from LOW: 200°F, (90°C) to 550°F, (290°C), and 28,000 BTU/h input per burner, natural or propane. There is an on-off valve for every thermostat
  • Valve-controlled models feature hi-lo valve control with approximate plate temperature range: 320°F, (160°C) to 730°F, (388°C), and 27,000 BTU/h input per burner, natural or propane gas
  • One burner and control (hi-lo or thermostat control) for every 12” linear width of griddle surface.
  • Piezo pilot ignition system
  • 3/4” NPT gas regulator with “T” gas manifold connection for straight-through rear or flush mount gas connections.
  • SS front, sides, and back
  • 4” SS adjustable legs
  • SS front rail; 4” (102mm) deep overall with 3 1/2” (89mm) top work surface
  • Models ordered with 4" (102mm) legs come with a deep 1.4 US gallon/5.3 litre capacity grease drawer(s) 201/2”(635mm) deep x 2 3/4”(70mm) high x 6”(152mm) wide.
  • Models ordered with optional S/S skirt for dais counter surface mounting come with large capacity S/S grease tray(s)
  • 1” thick polished steel griddle plate
  • 23” depth with 4” wide grease trough.

OPTIONAL FEATURES:

  • Chrome griddle plate
  • Full or half-grooved griddle plate
  • Stainless steel skirt for dias/counter surface mounting. The stainless steel skirt will reduce overall unit height by 1 3/4" (44.45mm)
  • Electric spark ignition; 120V/60Hz/1Ph 1 AMP; includes cord and NEMA 5-15P plug
  • Electric spark ignition; 208/240V (50/60Hz) cord and plug is NOT supplied with this voltage option
  • Stainless stand with solid top holding shelves, adjustable feet and casters (locking front)
  • Removable stainless steel attachment condiment rail with universal 1/9 or 1/3 food pan cut outs (pans supplied by others)

SPECIFICATIONS:

Garland heavy duty gas counter production griddles are designed for side-by-side matching with other models in the product line. Models are of nominal imperial widths from 24" (600mm) to 72"(1800mm), 13" (330mm) height, (w/std. legs), and 32" (814mm) depth. There is an even heat “U” shaped steel track burner for every 12" of linear griddle surface width. Each burner is individually controlled with a hi-lo valve or thermostat temperature control. Burner input is 27,000 BTU/h each on valve-controlled models, and 28,000 BTU/h each on thermostat controlled models. Thermostat control models are equipped with on-off valves for each control. Griddle plate is standard 1” thick polished steel with a 4” wide grease trough. Stainless steel front, sides and back with large capacity stainless steel grease tray(s).

Garland GTGG24-GT24 Heavy-Duty Gas Griddle - 56,000 BTU

SKU
34000-071
Have Questions? Talk to our experts.
Mon-Fri 8:30AM
- 5:30PM EST
Product Highlights
  • Thermostat-control models feature individual precise control from LOW: 175°F (79°C) to 525°F (274°C)
  • Stainless steel construction
  • Two 32,000 BTU heavy cast iron “H” burners
  • 32" griddle depth

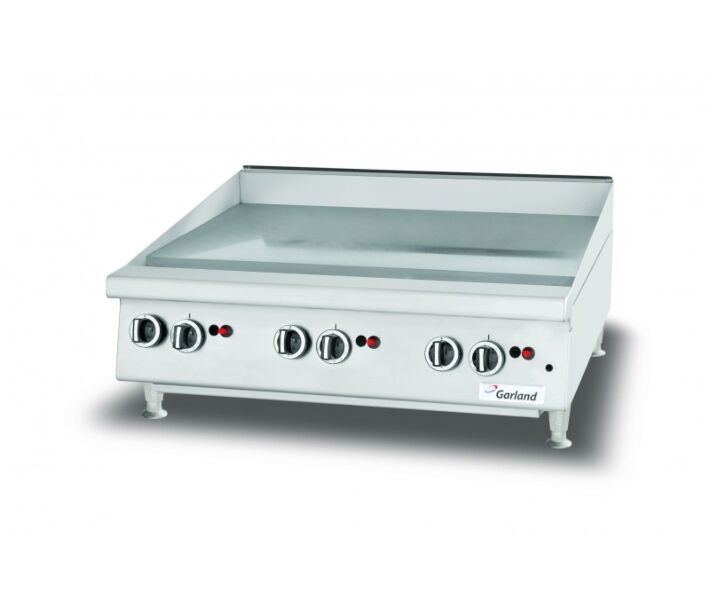

Model GTGG36-GT36M Shown

Specifications

More Information
BTU per Hour56,000
BrandGarland
MFR #GTGG24-GT24M

Resources and Download

SPECSHEET ( 345.21 kB)
