Vulcan SX36-6BN 36" 6-Burner Natural Gas Range with Standard Oven - 198,000 BTU
Vulcan SX36-6BN 36" 6-Burner Natural Gas Range with Standard Oven - 198,000 BTU
Product Highlights
Vulcan SX36-6BN 36" 6-Burner Natural Gas Range with Standard Oven - 198,000 BTU USA
- Six 28,000 BTU/hr open top burners with one 36" standard oven
- Rapid adjustment temperature controls
- Stainless steel front, sides, backriser, lift-off high shelf
LIMITED TIME OFFER: Extended 1 Year Parts and Labour Warranty
Product Files
Product Overview

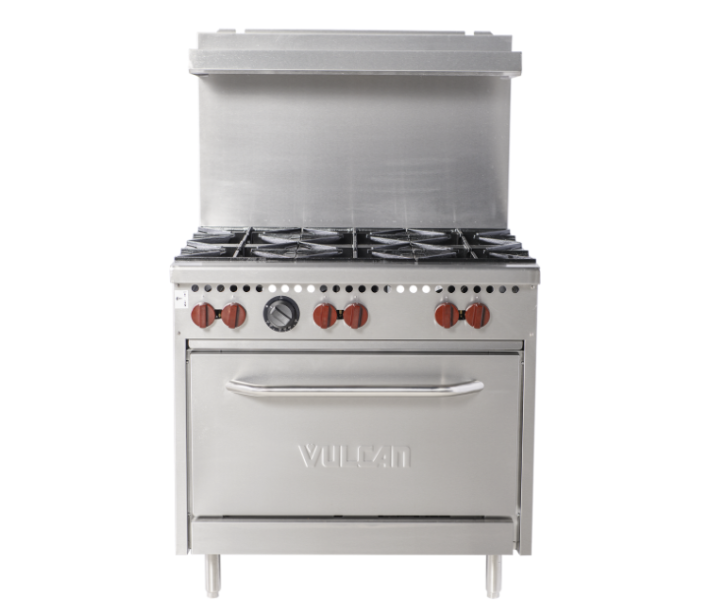

Vulcan SX36-6BN 36" 6-Burner Natural Gas Range with Standard Oven
Maintain your restaurant with excellent service and superbly cooked food by using the Vulcan SX36-6BN 36-inch 6-burner gas range with the standard oven! This commercial burner is constructed with a stainless steel material from its front, sides, back riser, and lift-off high shelf. It is built with six (6) open-top burners, each burner is 30,000 BTU per hour with lift-off burner heads. Designed with high-temperature burner T knobs with set screws and a porcelain door liner and oven bottom. Vulcan SX36-6B includes a standard oven and its oven thermostat adjusts from 250°F to 500°F. This is a new addition that will make any commercial kitchen come alive.
STANDARD FEATURES
- Fully MIG welded frame
- Stainless steel front, sides, back riser, lift-off high shelf
- 6" stainless steel adjustable legs
- Six open top burners, each burner is 30,000 BTU/hr. with lift-off burner heads
- Shrouded flash tube pilot system (one pilot per two burners)
- Heavy-duty cast grates, easy lift-off 12" x 12 1⁄2" in front and12" x 14 1⁄2" in the rear
- Extra deep pull out crumb tray with welded corners
- 35,000 BTU/hr. baker’s depth standard oven cavity; full-size sheet pans fit side-to-side or front-to-back
- The oven thermostat adjusts from 250°F to 500°F
- Two oven racks and four rack positions
- 35,000 BTU/hr. convection oven in place of a standard oven, 24"d x 26 3⁄8"w x 13 7⁄8"h (115v - 1 phase blower motor 4 amp, 6' cord, and plug); full-size sheet pans only fit side-to-side in a convection oven; convection oven motor requires field attachment
- One year limited parts and labor warranty
Specifications
Vulcan SX36-6BN 36" 6-Burner Natural Gas Range with Standard Oven - 198,000 BTU USA
| MFR # | SX36-6BN |
|---|---|
| Brand | Vulcan |
| Total Height | 58 |
| Total Width | 36 |
| Total Depth | 32 |
| BTU per Hour | 198,000 |
| Top Configuration | 6 open burners |
| Burner Style | Grates |
| Number of Burners | 6 |
| Number of Ovens | 1 |
| Gas Inlet Size | 3/4" |
| Base Style | Standard Oven |
| Warranty | 1-Year Limited Parts and Labor Warranty |
| Product Type | Commercial Gas Range |
Frequently Asked Questions
How many BTUs does the Vulcan SX36-6BN have?
The SX36-6BN delivers 198,000 BTU/hr total, with six 30,000 BTU open burners and a 35,000 BTU standard oven. Zanduco, an authorized Vulcan dealer, offers full U.S. support.
What fuel type does the Vulcan SX36-6BN use?
This model is a natural gas range, ideal for restaurants and commercial kitchens with a fixed gas line.
Does the Vulcan SX36-6BN have removable burner grates?
Yes, it has heavy-duty cast-iron lift-off grates, 12" × 12.5" in front and 12" × 14.5" in the rear, for easy cleaning and pot support.
How are the burners ignited on the SX36-6BN?
The range uses a shrouded flash-tube pilot system, with one pilot serving two burners for efficient ignition and reduced gas use.
Is the Vulcan SX36-6BN durable enough for busy commercial kitchens?
Yes, it includes a fully MIG-welded frame, stainless steel front, sides, and back riser, plus an extra-deep pull-out crumb tray.
What gas connection size does the SX36-6BN require?
It uses a 3/4" rear gas connection, compatible with commercial natural gas setups supplied through Zanduco.
Customer Reviews
Be the first to review this product
