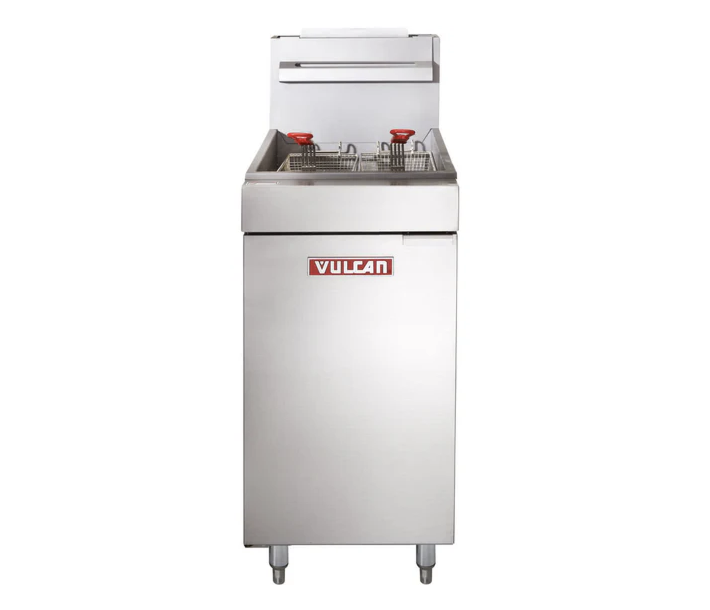

Vulcan LG400 Floor Fryer 45-50 lb. Capacity Natural Gas - 120,000 BTU
Vulcan LG400 Floor Fryer 45-50 lb. Capacity Natural Gas - 120,000 BTU
Product Highlights
Vulcan LG400 Floor Fryer 45-50 lb. Capacity Natural Gas - 120,000 BTU USA
- 45-50 lb oil capacity
- Stainless steel constructed fry tank
- 200° - 400°F (93°-204°C) temperature range
- Millivolt system requires no electric hook-up
- Twin fry baskets with plastic coated handles
- High-limit shut-off protector shuts off gas combination valve and standing pilot
- 120,000 BTU; Natural Gas
Product Files
Product Overview
Vulcan LG400 45-50 lb Gas Floor Fryer - 120,000 BTU - Natural Gas
The LG400 commercial fryer requires fewer BTUs resulting in lower operating costs for your restaurant.
This freestanding model fryer is available in 45-50 lb oil capacity with 120,000 BTU. It includes twin fry baskets with plastic coated handles and drain extension. This natural gas fryer has a large "V" shaped cold zone and 1 1/4" port ball valve that helps preserve oil used in the fryer by catching leftover food particles and cooling them, which prevents them from burning and tainting the oil. A door snap action millivolt thermostat control allows the temperature to be adjusted from 200° to 400°F. This helps in avoiding the requirement of an electric hook-up.
The LG400 is constructed with a stainless steel front top and reinforced door. The stainless steel fry tank has a five five-year limited tank warranty. To ensure the door is closed properly an earth magnet has been used. A door liner has also been added for added stability.
STANDARD FEATURES
- Stainless steel fry tank, 35-40, 45-50, and 65-70 lb. capacities.
- Large cold zone area.
- 11⁄4" full port ball type drain valve.
- Stainless steel reinforced door.
- G90 high-grade galvanized non-corrosive finish sides and back.
- Door liner for added stability.
- Set of four nickel-plated adjustable legs.
- Twin fry baskets with plastic coated handles.
- 90,000, 120,000 and 150,000 BTU’s/hr. input.
- Behind the door snap, action millivolt thermostat control adjusts from 200° to 400°F with standing pilot.
- Millivolt System - Requires no electric hook-up.
- Hi-limit shut-off protector shuts off gas combination valve and standing pilot.
- Built-in flue deflector.
- Nickel-plated tube rack.
- Earth magnet to secure closed door.
- Easily removable stainless steel basket hanger for cleaning.
- Vulcan-Hart (Vulcan) warrants the LG Series gas fryer to be free of defects in materials and workmanship for a period of 1 year from the date of original installation.
- The stainless steel fry tank has a five (5) year limited tank warranty. If during the first year only, the tank is found to have a leak and is verified by an authorized service agency, the entire LG Series fryer will be replaced.
Specifications
Vulcan LG400 Floor Fryer 45-50 lb. Capacity Natural Gas - 120,000 BTU USA
| Fuel Type | Natural Gas |
|---|---|
| MFR # | LG400 |
| Brand | Vulcan |
| Total Height | 34.6 |
| Total Width | 15.5 |
| Total Depth | 29.75 |
| BTU per Hour | 120,000 |
| Temperature Range | 200 to 400 degree F |
| Number of Fryer Baskets | 2 |
| Gas Inlet Size | 1/2" and 3/4" |
| Control Type | Thermostatic |
| Capacity | 45 to 50 lbs of oil |
| Product Type | Gas Floor Fryer |
Frequently Asked Questions
What is the oil capacity of the Vulcan LG400 fryer?
The Vulcan LG400 holds 45–50 lbs of oil in a stainless steel fry tank. Zanduco, an authorized Vulcan dealer, ships it ready for commercial use.
How many BTUs does the Vulcan LG400 fryer have?
This model delivers 120,000 BTU/hr, giving strong frying performance while keeping operating costs lower.
What temperature range does the Vulcan LG400 support?
The snap-action millivolt thermostat adjusts from 200°F to 400°F, offering full control for all fried menu items.
Does the Vulcan LG400 require electricity?
No. It uses a millivolt system with a standing pilot, so it requires no electric hook-up.
Is the Vulcan LG400 energy efficient?
Yes, its large V-shaped cold zone helps extend oil life by trapping debris and preventing oil burning.
