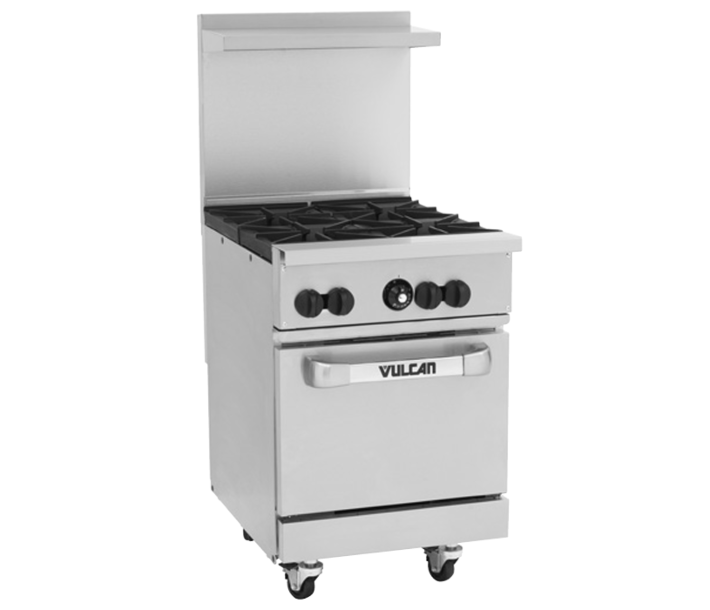

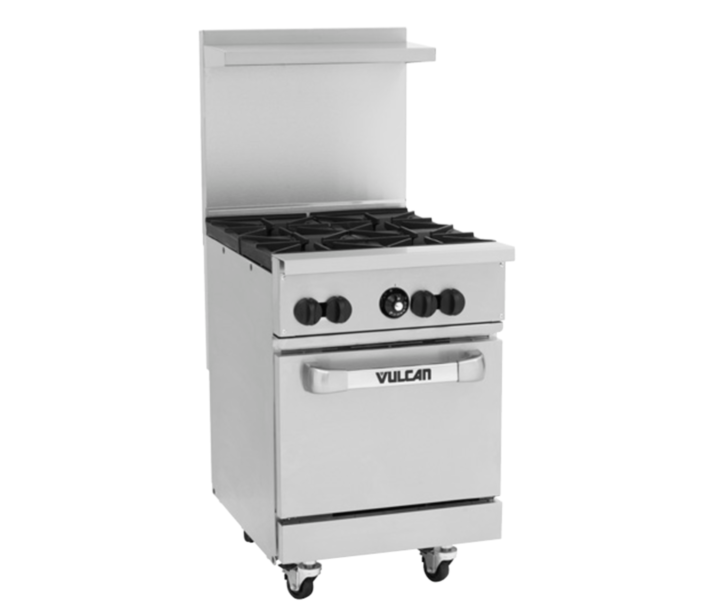

Vulcan 24S-4B Endurance Series 24" 4 Burner Range with Standard Oven and 143,000 BTU - Natural Gas/Liquid Propane
Vulcan 24S-4B Endurance Series 24" 4 Burner Range with Standard Oven and 143,000 BTU - Natural Gas/Liquid Propane
- Four 30,000 BTU/hr. burners, total 143,000 BTU/hr. output
- Heavy-duty cast iron grates with built-in aeration bowls
- Lift-off grates: 12" x 12½" (front), 12" x 14½" (rear)
- Shrouded flash tube ignition system one pilot per two burners
- Stainless steel front, sides, backriser, and high shelf
- MIG welded steel frame for long-lasting durability
Certifications



The Vulcan 24S-4B Endurance Series 24" 4 Burner Range with Standard Oven is a high-performance, space-saving solution for commercial kitchens operating with liquid propane and natural gas. This 24" wide gas restaurant range delivers a total input of 143,000 BTU/hr., featuring four 30,000 BTU/hr. open top burners with lift-off heads for easy cleaning and maintenance. Built for durability, it includes a fully MIG welded aluminized steel frame and a sleek stainless steel front, sides, backriser, and high shelf.
The heavy-duty cast iron grates feature built-in aeration bowls and are sized to handle large pans and stock pots—12" x 12½" in the front and 12" x 14½" in the rear. A shrouded flash tube ignition system ensures energy-efficient, reliable startup with one pilot per two burners. The 23,000 BTU/hr. standard oven has a porcelain-lined interior, fits full-size sheet pans front-to-back, and includes two racks with four rack positions.
The oven thermostat adjusts from 250°F to 500°F with a low setting. Additional features include a deep pull-out crumb tray, cool-touch high-temp knobs, 6" adjustable stainless steel legs, and a ¾" rear gas connection with a pressure regulator.
Specifications
Country of Manufacture | United States |
---|---|
More Options | Fuel Type |
MFR # | 24S-4B |
Brand | Vulcan |
Total Height | 58" |
Total Width | 24" |
Total Depth | 34" |
BTU per Hour | Total: 143,000 BTU | 30,000 BTU |
Top Configuration | Open Burners |
Temperature Range | 250°F - 500°F |
Burner Style | NG/LP |
Number of Burners | 4 Burners |
Number of Ovens | 1 Oven |
Gas Inlet Size | 3/4 Inches |
Exterior Material | Stainless Steel |
Product Type | Gas Range |
