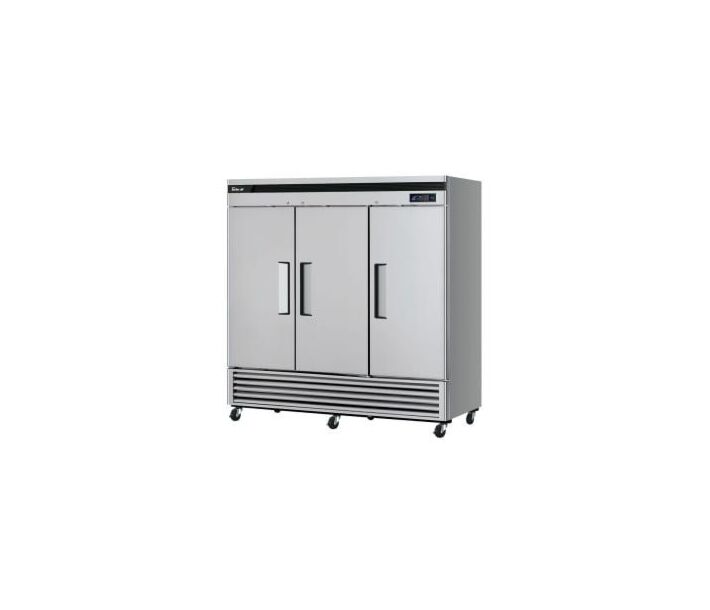

Turbo Air TSR-72SD-N Super Deluxe 82" Bottom Mounted Solid Door Reach-In Refrigerator with LED Lighting

SKU
16000-463
Free Shipping

Turbo Air TSR-72SD-N Super Deluxe 82" Bottom Mounted Solid Door Reach-In Refrigerator with LED Lighting

SKU
16000-463
USD $9,427.60
Have Questions? Talk to our experts.
chat-icon
Mon-Fri 8:30AM -
5:30PM EST
Product Highlights
  • Refrigeration system that maintains 33°F to 38°F (.5°C to 3.3°C)
  • Stainless steel interior and exterior
  • Energy efficient
  • R290 hydrocarbon refrigerant
  • Stainless steel shelves

Certifications

icon-0 icon-1 icon-2

Resources and Download

SPEC SHEET ( 290.76 kB)
Product Overview

Turbo Air TSR-72SD-N Super Deluxe 82" Bottom Mounted Solid Door Reach-In Refrigerator with LED Lighting

Super Deluxe Reach-in refrigerator, Three-section, Self-Cleaning Condenser equipped, Self-contained, Stainless steel interior and exterior (galvanized steel top, bottom, and back), (3) hinged solid door with recessed handle, (9) adjustable stainless steel wire shelves, exterior LED digital controller, Self-diagnostic monitoring system, Door-open alarm beeps, Turbo cooling, Automatic fan motor delays, Door pressure release device, LED interior lighting, Door locks, 4" dia. swivel casters, bottom mount compressor, Anti-corrosion coated evaporator, 64.1 cu.ft., 115v/60/1, NEMA 5-15P, 5.7 Amps, 1/2 HP, ETL-Sanitation, cETLus

Self-Cleaning Condenser
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to or disposal of the stored products in refrigerators. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.

Digital temperature control & monitor system

  • Keep food products safe by maintaining constant temperatures.
  • Alarms that sound when doors are not sealed shut; protect against food spoilage that originate from cold air leaks.
  • Early warning alarm program detects issues before a malfunction occurs.
  • Digital display allows for easy monitoring.
  • Programs interpret the condition of refrigeration systems by self-diagnosis.
  • Rapid cool-down function (Turbo cooling).
  • Automatic evaporator fan motor delays.

Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE's Energy Conservation Standards in 2017 and to use EPA's SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).
Stainless steel cabinet construction
The Turbo Air Super Deluxe model boasts a stainless steel interior and exterior (galvanized steel top, bottom and back). It guarantees the utmost cleanliness and long product life. Sharp corners and edges have been rounded to reduce the risk of injury. The Super Deluxe adds a touch of style to the most refined setting.

Sturdy, clean stainless steel shelving
Shelves are the most important part of cleanliness as they come in direct contact with food. After a while, PVC-coated wire shelves may peel, rust, and lead to unsanitary conditions. Only the Turbo Air Super Deluxe series uniquely provides stainless steel shelving.

Door pressure release device
Pressure relief doors are designed to eliminate vacuum pressure and allow easy instant door opening.

High-density polyurethane insulation
The entire cabinet structure and solid doors are foamed-in-place using high density, HCFC free polyurethane insulation.

LED Interior lighting

Bottom mount compressor

Refrigerator holds 33°F ~ 38°F for the best in food preservation

Standard Features

  • Anti-corrosion coated evaporator
  • Door locks standard
  • Positive seal self-closing doors
  • Easy replaceable one-piece magnetic door gaskets
  • Self-contained system
  • Solid and sturdy grille design
  • Standard 4" dia. swivel casters with locks on the front set

Optional Accessories

  • 5" caster, ½" diameter & 13 TPI: M726500100 (non-brake), M726500200 (w/ brake)
  • 6" stainless steel leg: 30221M0600
  • Additional stainless steel shelf: 30278Q0200
  • Half door bun tray rack: TSP-2224 (each holds up to six 18”L x 26”D sheet pans)
  • Full door bun tray rack: TSP-2250 (each holds up to fifteen 18”L x 26”D sheet pans)

Warning: This product can expose you to chemicals including Bisphenol A(BPA) and Di (2-Ethylhexyl) phthalate (DEHP) and Cobalt sulfate heptahydrate, which are known to the State of California to cause cancer, birth defects, or other reproductive harm.



Specifications

More Information
BrandTurbo Air
MFR #TSR-72SD-N
Voltage115V
Hertz60
Phase1
Capacity64.1 cu. ft.
Door StyleSolid Door
Horsepower0.5 HP
Number of Shelves9
Number of Doors3
RefrigerantR290
Temperature Range0.5 degree C to 3.3 degree C
NEMA5-15P
Amps5.7
Exterior MaterialStainless Steel
Interior MaterialStainless Steel
Interior Lighting LED
Total Width81.88
Total Height78.3
Total Depth30.38
Warranty3-year Parts & Labor/7-year Compressor
