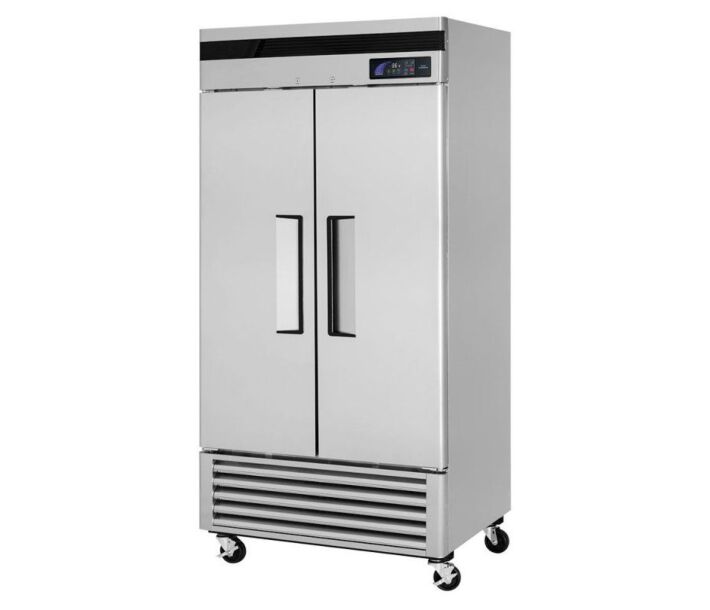

Turbo Air TSR-35SD-N6 Super Deluxe 40" Bottom Mounted Solid Door Reach-In Refrigerator with LED Lighting
Turbo Air TSR-35SD-N6 Super Deluxe 40" Bottom Mounted Solid Door Reach-In Refrigerator with LED Lighting
- Refrigerator holds 33°F ~ 38°F
- Anti-corrosion coated evaporator
- R600a refrigerant
- Stainless steel shelving
- LED interior lighting
Certifications



Resources and Download
Turbo Air TSR-35SD-N Super Deluxe 40" Bottom Mounted Solid Door Reach-In Refrigerator with LED Lighting
Super Deluxe series, Reach-in refrigerator (2) solid doors, self-cleaning condenser equipped, digital temperature control & monitor system, Hydrocarbon refrigerants (R-600a), Stainless steel interior and exterior (galvanized steel top, bottom, back), door pressure release device, high-density polyurethane insulation, LED interior lighting, door locks standard, self-contained system, 1/5 hp, 1.9 amps, 115/60/1, NEMA 5-15P, 29.19 cu.ft., cETLus, ETL-Sanitation
Self-cleaning condenser device only at Turbo Air
The accumulation of dust in the condenser causes the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to or disposal of the stored products in refrigerators. The self-cleaning condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.
Digital temperature control & monitor system
- Keep food products safe by maintaining constant temperatures.
- Alarms that sound when doors are not sealed shut; protect against food spoilage that originates from cold air leaks.
- Digital display allows for easy monitoring.
- Programs interpret the condition of refrigeration systems by self-diagnosis.
- Rapid cool-down function (Turbo cooling).
- Automatic evaporator fan motor delays.
Hydrocarbon refrigerants (R-600a)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE's Energy Conservation Standards in 2017 and to use EPA's SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have a very low contribution to global warming (ODP-0, GWP-3).
Stainless steel cabinet construction
The Turbo Air Super Deluxe model boasts a stainless steel interior and exterior (galvanized steel top, bottom, and back). It guarantees the utmost cleanliness and long product life. The sharp corners and edges have been rounded to reduce the risk of injury. The Super Deluxe can add a touch of style to the most refined setting.
Sturdy, clean stainless steel shelving only Turbo Air models
Shelves are the most important part of cleanliness as they come in direct contact with food. After a while, PVC-coated wire shelves may peel, rust, and lead to unsanitary conditions. Only the Turbo Air Super Deluxe series uniquely provides stainless steel shelving.
Door pressure release device only Turbo Air models
Pressure relief doors are designed to eliminate vacuum pressure and allows easy, instant door opening.
High-density polyurethane insulation
The entire cabinet structure and solid doors are foamed-in-place using high density, CFC-free polyurethane insulation.
LED interior lighting
Bottom mount compressor
Refrigerator holds 33°F ~ 38°F for the best in food preservation
Standard Features
- Anti-corrosion coated evaporator
- Door locks standard
- Positive seal self-closing doors
- Easy replaceable one-piece magnetic door gaskets
- Self-contained system
- Solid and sturdy grille design
- Standard 4” dia. swivel casters with locks on the front set
Optional Accessories
- 5” caster, ½” diameter & 13 TPI: M726500100 (non-brake), M726500200 (w/ brake)
- 6” stainless steel leg: 30221M0600
- Additional stainless steel shelf: 30278Q0600
Specifications
Brand | Turbo Air |
---|---|
MFR # | TSR-35SD-N6 |
Voltage | 115V |
Hertz | 60 |
Phase | 1 |
Capacity | 29.19 cu. ft. |
Door Style | Solid Door |
Horsepower | 0.2 HP |
Number of Shelves | 6 |
Number of Doors | 2 |
Refrigerant | R-600a |
Temperature Range | 0.5 degree C to 3.3 degree C |
NEMA | 5-15P |
Amps | 1.9 |
Exterior Material | Stainless Steel |
Interior Material | Stainless Steel |
Interior Lighting | LED |
Total Width | 39.5 |
Total Height | 78.3 |
Total Depth | 30.38 |
Warranty | 3-year Parts & Labor/7-year Compressor |
