Southbend HDG-72M Heavy Duty 72" Countertop Manual Griddle - 120,000 BTU
SKU
34000-078

Southbend HDG-72M Heavy Duty 72" Countertop Manual Griddle
Wide spatula-width front grease trough for easy cleaning. Stainless steel front and sides. Flame failure safety device standard. 4" Stainless steel legs standard. Fully insulated for zero clearance.
Standard Construction Specifications:
- Exterior Finish:
- The Front, sides, and vent are constructed of #3 polished 430 and 304 stainless steel. The bottom and rear are aluminized steel. Sides are reinforced and fully insulated. 5" rear and 4" side splash
- Griddle Plate:
- 18", 24", 36" 48", 60", 72", wide unit with one 30,000 BTU (NAT or LP) burners every 12" on thermostatic models and on e20,000 BTU (NAT or LP) burners every 12" on manual models. Fully welded, 1" thick polished steel griddle plate with side splash guards, and grease drawer
- Griddle Control:
- Independent, "Insta-on" thermostatic controls with a uniform temperature range of 200°F to 400°F (Thermostatic models ONLY)
- Legs:
- Stainless steel 4-inch adjustable legs
- Gas Heat Control System:
- Each foot of griddle is heated by a "U" shaped burner. Each burner is controlled by thermostatic control. For safety, each pilot has a flame failure device. A 3/4-inch rear gas connection is standard. Units over 48" wide are constructed of two bodies.
Standard Features of Thermostatic Griddle Models:
- "Insta-on" thermostatic controls for precise settings between 200°F and 400°F
- Embedded load sensing thermostat
- Flame failure safety device
Southbend HDG-72M Heavy Duty 72" Countertop Manual Griddle - 120,000 BTU
SKU
34000-078
USD $7,858.00
Have Questions? Talk to our experts.
Product Highlights
- Exclusive “NO COLD” Zone: uniform heat distribution across the surface
- Stainless steel and aluminized steel construction
- Six 20,000 BTU burners
- 1” thick polished rolled steel griddle plate

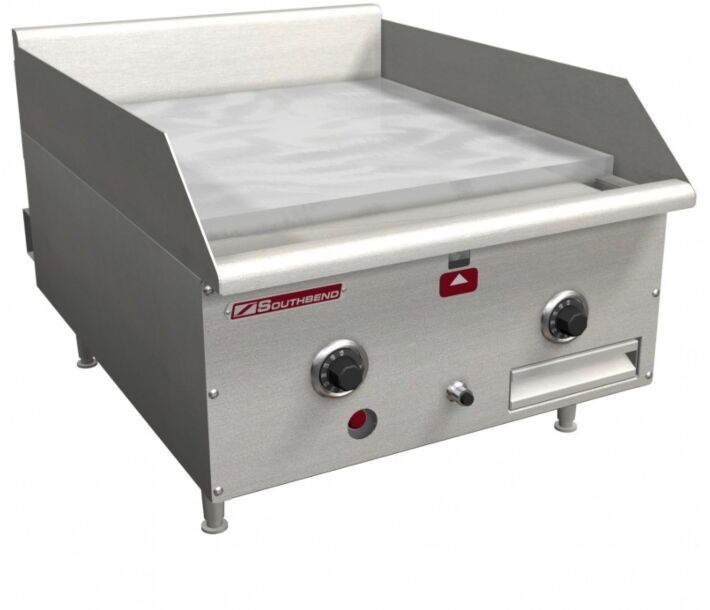

Model HDG-24 Shown
Specifications
Length in Inches | 33.75 |
---|---|
Width in Inches | 72 |
Height In Inches | 16.1 |
BTU per Hour | 120,000 |
Brand | Southbend |
MFR # | HDG-72M |
