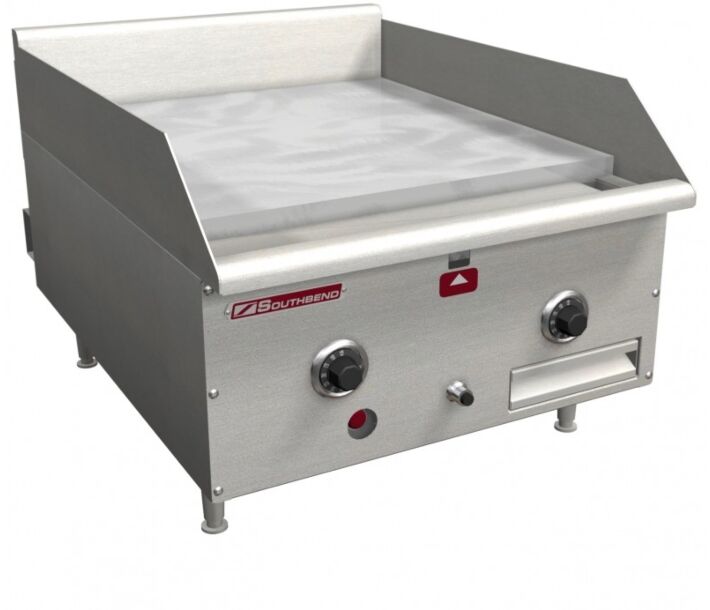

Southbend HDG-18M Heavy Duty 18" Countertop Manual Griddle

Standard Construction Specifications:

• Exterior Finish:
  • The Front, sides, and vent are constructed of #3 polished 430 and 304 stainless steel. The bottom and rear are aluminized steel. Sides are reinforced and fully insulated. 5" rear and 4" side splash
• Griddle Plate:
  • 18", 24", 36" 48", 60", 72", wide unit with one 30,000 BTU (NAT or LP) burners every 12" on thermostatic models and on e20,000 BTU (NAT or LP) burners every 12" on manual models. Fully welded, 1" thick polished steel griddle plate with side splash guards, and grease drawer
• Griddle Control:
  • Independent, "Insta-on" thermostatic controls with a uniform temperature range of 200°F to 400°F (Thermostatic models ONLY)
• Legs:
  • Stainless steel 4-inch adjustable legs
• Gas Heat Control System:
  • Each foot of griddle is heated by a "U" shaped burner. Each burner is controlled by thermostatic control. For safety, each pilot has a flame failure device. A 3/4-inch rear gas connection is standard. Units over 48" wide are constructed of two bodies.

Standard Features of Thermostatic Griddle Models:

• "Insta-on" thermostatic controls for precise settings between 200°F and 400°F
• Embedded load sensing thermostat
• Flame failure safety device
