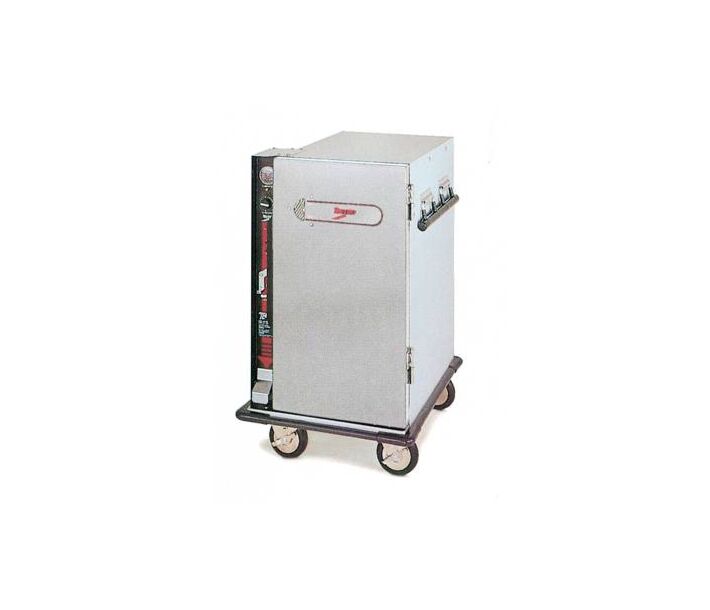

HALF-HEIGHT HEATED TRANSPORT CABINETS* TC90 FlavorHold™ Series

• Choice of Two Models: The TC90S holds up to nine 12" x 20" (305 x 508mm) steam table pans; the TC90B holds up to nine 18" x 26" (457 x 660mm) bun pans.
• Mobile: Five-inch (127mm), non-marking neoprene casters (two with brakes), and side-mounted lift handle provide ease of mobility. Both styles have a low center of gravity for safe transport or convenience under counter storage and use.
• High Performance: TC90S and TC90B hold hot prepared foods. A closed-loop thermal brake reduces heat transfer; the air vent provides moisture control. The double-walled heated cabinets are Energy Star rated.
• Analog Thermometer: Allows temperature monitoring at any time, even when the unit is not plugged in.
• Cleans Easily: Smooth stainless cabinet interior and removable slide racks make cleaning easy. The Control panel is also removable for cleaning or maintenance.
• Door Opens Easily; Latches Securely: A magnetic catch holds the door shut securely; travel latch prevents opening while in transit. Convenient kick latch provides easy “hands-free” opening

Specifications:

• Electrical: Operating range is from 120° to 180°F under normal room temperature conditions. 900W, 120V, 8AMP, 60 cycles controlled by an adjustable thermostat with indicator light. 6-foot (1829mm) radiant heating, 3-wire lead cord. NEMA 5-15P plug.
• Material: .063" (1.6mm) high-strength aluminum exterior; 18-gauge (.048) stainless interior.
• Slide Racks: Slide spacing is 2 5⁄8" (66mm) to accommodate pans. TC90S is lip-loaded; TC90B is bottom-loaded. Nickel-chrome plated.
• Casters: Two B5DN on the back - 5" (127mm) double ball bearing swivel, ball bearing axle, nickel-plated, non-marking neoprene tires, pre-lubricated, bolted through separate full0length angle-formed 1⁄8" (3mm) thick aluminum plates to the bottom of chassis. Two B5DNB on front - same as above, with wheel brake.
