Lincoln 2424-GUN Aperion 2424 Series Impinger Conveyor Oven Natural Gas
Lincoln 2424-GUN Aperion 2424 Series Impinger Conveyor Oven Natural Gas
Product Highlights
Lincoln 2424-GUN Aperion 2424 Series Impinger Conveyor Oven Natural Gas USA
- Dual blower motors and high-output heating elements reduce bake times by up to 30% for faster, higher-volume output.
- Independent top and bottom airflow controls ensure an even bake across the entire conveyor width.
- The easyTouch interface offers 20 recipe presets, belt reversal, and ECO mode for energy efficiency during slower periods.
- A front-removable door and universal finger assemblies simplify cleaning, with stainless steel construction throughout.
- The 24″ × 48″ conveyor is front-removable and stackable, with options for split belts and half-pass doors to enhance flexibility.
- Must pair with stack kit
Product Files
Product Overview

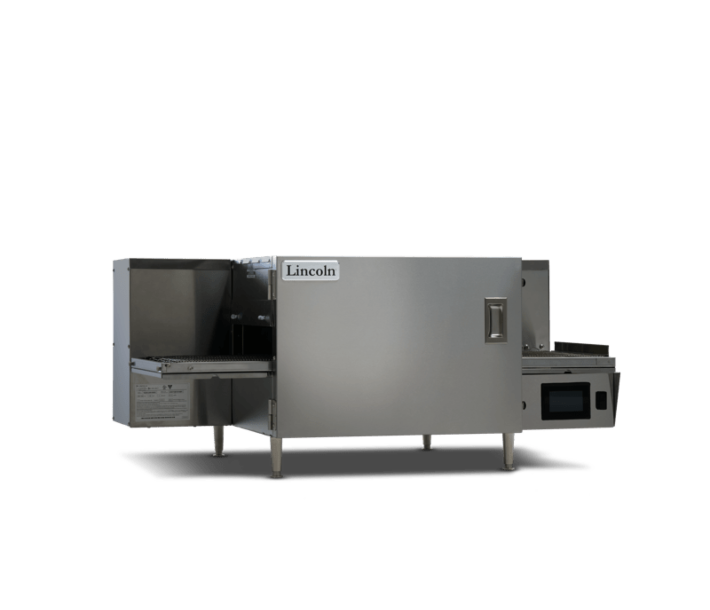

The Lincoln Aperion 2424 is a high-performance commercial conveyor oven engineered to deliver fast, consistent baking in demanding foodservice environments. 2424-GUN is the model number for gas-specific operations, the model also comes in electric operation (including ventless electric models), it brings efficiency, control, and reliability to your kitchen.
General Specification
- Stainless steel design
- Audible noise targeted at <70 dB Front-of-House (FOH) application
- Front removable door and universal finger assemblies
- Double-stackable in ventless operation
- Triple stackable in non-ventless operation
Cooking
- 20 sec to 30 minute cook time
- 20 recipe pre-sets for easy operation
- Independent, adjustable top and bottom air flow control
- Vented Models:
- Temperature range 250°F - 600°F [121°C - 316°C]
- 100% top and bottom fan speed
- Ventless Models:
- Temperature range 250°F - 550°F [121°C - 288°C]
- Maximum 70% top and 100% bottom fan speed
Conveyor
- Conveyor is 24” wide x 48” long
- Front removable
- Includes end stop
Required Application
- Countertop legs or floor standing legs with casters - Please contact sales for further details
Optional Configuration
- Electric ovens available with triple catalysts for VENTLESS operation
- Optional front-loading half pass glass door with cool touch handle
- 6” or 12” entry and exit shelves
- 50/50 [12”/12”] split belt
- 30/70 [8”/16”] split belt
- Single and three phase cord sets with plug
Important
** NOTE: For proper operation, the gas valve requires a nominal inlet pressure of 7 inches of W.C. for natural gas. A minimum inlet pressure of 1.0 inch of W.C. column above the manifold setting (NAT. manifold 4” W.C.) must be maintained with no pressure drop from the no load to full load condition. The maximum inlet pressure must be maintained at or below 1/2 PSIG (14.5 inches W.C.)
*Gas supply pressures are dependent on local gas type and on all applicable local codes. Agency approved flexible connection
to each oven must be minimum ¾” (19 mm) NPT and length must not exceed six (6) feet (1829 mm).
*All ovens require separate electrical service and breaker.
*Oven requires use of a dedicated neutral.
UPC: 62828915340004815
Specifications
Lincoln 2424-GUN Aperion 2424 Series Impinger Conveyor Oven Natural Gas USA
| Manufacturing origin | United States |
|---|---|
| MFR # | 2424-GUN |
| NEMA | Barewire - 3 wire, L + N + G |
| Brand | Lincoln |
| Total Width | 24 3/4" |
| Total Depth | 39 3/4" |
| Net Weight | appx 400 lbs per oven with stacking kit |
| BTU per Hour | 60,000 BTU max Input rate (NG / LP) |
| Number of Ovens | 1 |
| Gas Inlet Size | Minimum ¾” (19 mm) NPT and length must not exceed six (6) feet (1829 mm). |
| Control Type | easyTouch Control |
| Voltage | 120V |
| Hertz | 60 |
| Amps | 9 |
| Warranty | 24-month parts and labor warranty provided by Lincoln (CA - Garland ; US: Lincoln / Welbilt authorized serivce provider) - North America Region only |
| Product Type | Gas Powered Impinger Conveyor Oven |
