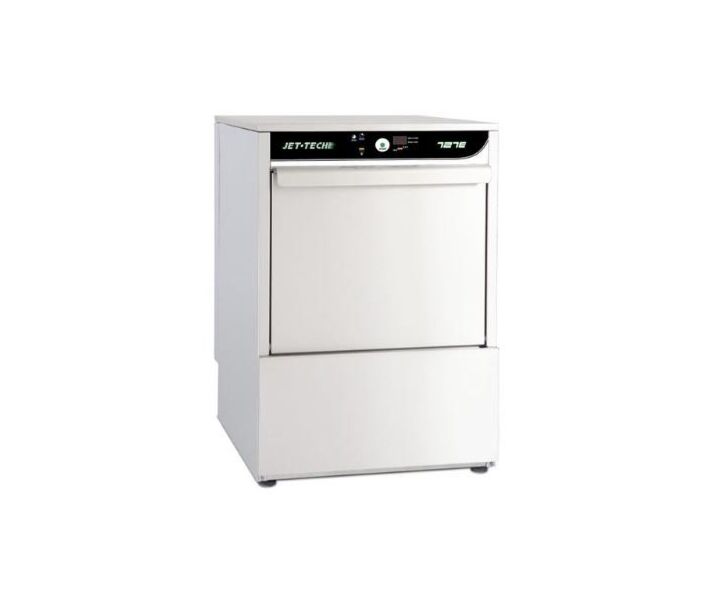

Jet-Tech 727E High Temp Undercounter Cup & Glasswasher - 30 Racks/hr

SKU
16000-810
Free Shipping

Jet-Tech 727E High Temp Undercounter Cup & Glasswasher - 30 Racks/hr

SKU
16000-810
USD $4,260.38
Have Questions? Talk to our experts.
chat-icon
Mon-Fri 8:30AM -
5:30PM EST

Certifications

icon-0 icon-1 icon-2 icon-3

Resources and Download

SPECSHEET ( 1.40 MB)
INSTRUCTION MANUAL ( 1.28 MB)
Product Overview

Whether you operate a bakery, hotel, supermarket, school, meat department, hospital, or laboratory, these highly productive dishwashers will ensure perfect kitchen ware hygiene; specially designed to effectively ensure total coverage and contribute to an impeccable cleanliness. Ensure washing of every kind of wares with these dishwashers. That is how the Total Clean Concept will make your life a whole lot easier!



PRODUCT DESCRIPTION:

  • ThermoStop™ System – Guarantees 185F (85C) final rinsing temperature, regardless of incoming water temperature
  • OneGO™ – Our electronic control system featuring intelligent software LED interface and multiple function analysis. OneGO™ soft touch buttons allows you to run a selection of three different cycles, all in one easy touch!
  • SmartSelf diagnostics – have all necessary advanced service diagnostics information at your fingertips!
  • EasyGO – Our ‘soft-start’ washing system protects your valuable dishes and glassware from any chippage or breakage
  • EnergyStar qualified – extremely low water and electrical consumption maximizing your profits
  • Model 727E is fully equipped with a built-in booster for high temperature rinse water, automatic peristaltic pumps for both liquid detergent and rinse-additive, and an automatic drain pump that has the exclusive ‘wash-down’ feature at the end of the work day for a self-cleaning operation.



CONSTRUCTION FEATURES:

  • Body, external housing, wash tank, and all chassis components in brushed stainless steel 304 18/10
  • Noise 58 dBa due to utilization of double-wall insulated panels
  • Upper and lower wash and rinse jets on revolving arms constructed of stainless steel; easy to remove and clean without the need for tools
  • Integrated AISI 18/10 stainless steel booster with insulated lining
  • Safety micro-switch on the door to interrupt wash pump action
  • Reinforced door hinge system
  • Independently operated heating elements alternating between booster and wash tank
  • Alternating heating resistors reducing maximum absorption thereby reducing energy costs
  • Possibility of built-in or free-standing installation
  • Wash pump protected with filter plus additional filter for overflow tube
  • Inner washing chamber with coved corners and one-piece stamped wash tank provides user with the most sanitary environment.
  • Door-opening with overall clearance of 10.8” (273
  •  mm)
  • Automatic fill and water level regulation of the wash tank
  • Slide out integrated front control panel provides easy access for technical service
  • Standard equipment includes: One 16 open compartment (4x4)angles section glassware rack and one open combination rack for cups, bowls, and assorted wares



TECHNICAL FEATURES:

  • Rack capacity: 15.75” 15.75” (400 mm x 400 mm)
  • Complete operating cycle: 2-3-4 minutes
  • Hourly production: 30/20/15 racks/hr (1080/720/540 glasses/hr)
  • Wash tank capacity: 2.96 US gallons (11 litres)
  • Final rinse temperature: 185° - 194° F (85° – 90° C)
  • Wash temperature:  150°F (65°C)
  • Booster capacity: 0.79 U.S gallon (3.0 litres)
  • Booster element: 2.4 KW
  • Tank heating element: 2.8 KW
  • Washing pump power: 0.4 HP
  • Power supply: 208/60HZ
  • Maximum power rating: 2.8 KW – 13.5 amps
  • Recommended  pressure: 30 p.s.i (2 bar)
  • Shipping weight: 118 lbs (53.6 kg)
  • Machine weight: 106 Lbs (48.4 kg)
  • Water consumption per cycle @ 30 psi: 0.52 US gallons (2.8 litres)
  • Incoming water temperature: Minimum 122 °F (50° C)



OPTIONAL ACCESSORIES:

  • Pressure reducing valve (PRV) kit
  • Drain water tempering kit

Specifications

More Information
MFR #727E
BrandJet-Tech
Total Depth20.5
Total Width20.25
Total Height29.5
Capacity15.75" x 15.75" (rack)
Horsepower0.4 HP
Hertz60
Voltage208V
Phase1
Door StyleSolid Door
Booster Heater IncludedYes
Water Usage0.52 US gal/cycle
Warranty1-Year Parts & Labour
Product TypeDishwashing Equipment
Meat Slicer Size297.3
