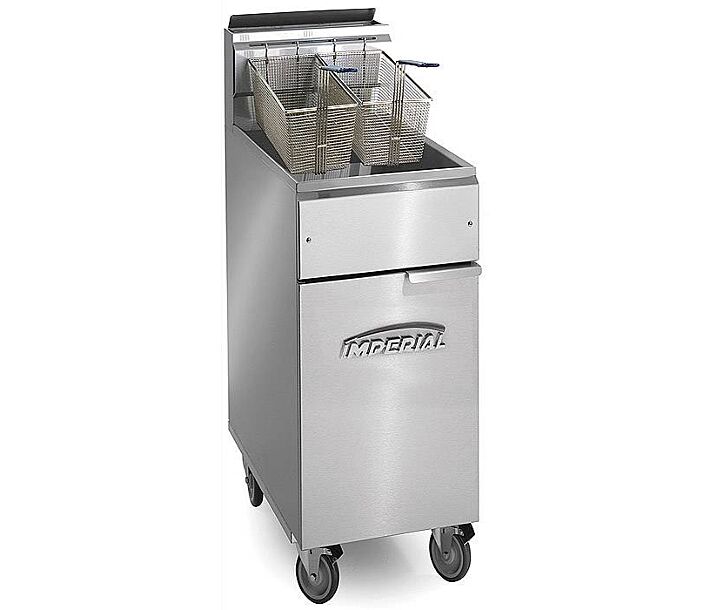

Imperial Gas - Open Pot Fryers - IFS-50-OP

OPEN POT BURNERS

• Flame transfers heat to plates located strategically outside of the frypot.
• Intense heat rapidly heats the stainless steel sides and the oil inside of the frypot.
• Snap-acting thermostat has a 200ºF - 400ºF. (93ºC - 204ºC) the temperature range that extends oil life and produces a uniformly cooked product.
• No tube-fired burners and no air shutter adjustments are needed.
• 100% safety shut-off valve

LARGE COLD ZONE

• Captures and holds particles out of the fry zone.
• Reduces taste transfer.

STAINLESS STEEL FRYPOT

• Open Pot Frypots are easy to clean with no obstruction to clean around.
• Large 14” x 14” (356 x 356 mm) frying area on 40 and 50 lbs. 18” x 18” (457 x 457 mm) on 75 lbs.
• Frypots are robotically welded stainless steel.
• Fine mesh wire crumb is included.
• Deep drawn bottom facilitates draining, slants toward the drain.
• 1-1/4” (32 mm) full port drain valve empties frypot quickly and safely.
• Two large, nickel-plated fry baskets with vinyl-coated, heat protection, handles are included.
• Basket hangers are stainless steel.

EXTERIOR FEATURES

• Stainless steel front, door, sides, basket hanger, and frypot.
• Welded and polished stainless steel seams.
• Full heat shield protects control panel.
• Full bottom chassis provide structural support.
• Plate mounted 6” (152 mm) heavy-duty stainless steel legs or optional casters assure secure support.
• One-year parts and labor warranty. Limited warranty on frypot, stainless steel frypot is five years pro-rated

OPTIONS AND ACCESSORIES

• Extra fry baskets with vinyl coated handles
• Gas shut off valve, 3/4” N.P.T.
• Quick disconnect and flexible gas hose, 3/4” N.P.T.
• 20-1/2” (521 mm) stainless steel backguard
• Stainless steel tank cover
• Stainless steel joiner strip
• Stainless steel drain shelf
• Heat lamp for IRF-DS
• 6” (152 mm) casters
