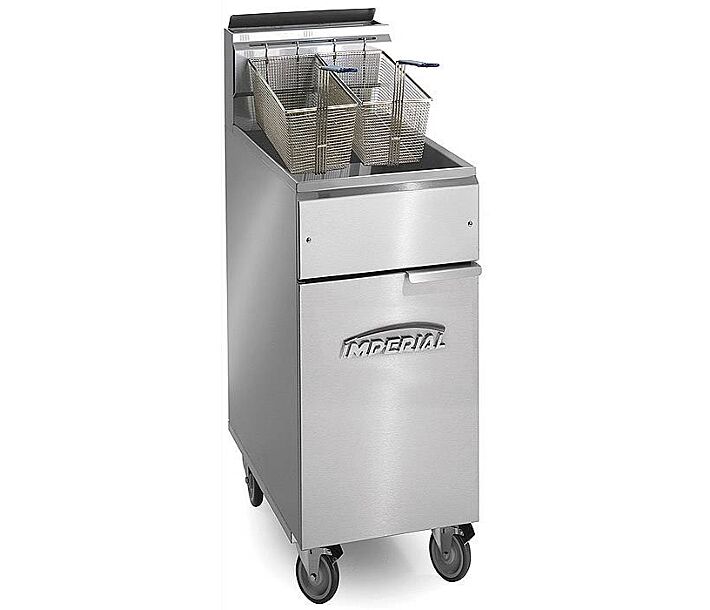

Imperial IFS-40-OP Open Pot Floor Fryers 40 lb. Capacity Natural Gas or Liquid Propane - 105,000 BTU

SKU
24000-098

Imperial Gas - Open Pot Fryers - IFS-40-OP

OPEN POT BURNERS

  • Flame transfers heat to plates located strategically outside of the frypot.
  • Intense heat rapidly heats the stainless steel sides and the oil inside of the frypot.
  • Snap-acting thermostat has a 200ºF - 400ºF. (93ºC - 204ºC) the temperature range that extends oil life and produces a uniformly cooked product.
  • No tube fired burners and no air shutter adjustments needed.
  • 100% safety shut-off valve

LARGE COLD ZONE

  • Captures and holds particles out of the fry zone.
  • Reduces taste transfer.

STAINLESS STEEL FRYPOT

  • Open Pot Frypots are easy to clean with no obstruction to clean around.
  • Large 14” x 14” (356 x 356 mm) frying area on 40 and 50 lbs. 18” x 18” (457 x 457 mm) on 75 lbs.
  • Frypots are robotically welded stainless steel.
  • Fine mesh wire crumb is included.
  • Deep drawn bottom facilitates draining, slants toward the drain.
  • 1-1/4” (32 mm) full port drain valve empties frypot quickly and safely.
  • Two large, nickel-plated fry baskets with vinyl-coated, heat protection, handles are included.
  • Basket hangers are stainless steel.

EXTERIOR FEATURES

  • Stainless steel front, door, sides, basket hanger and frypot.
  • Welded and polished stainless steel seams.
  • Full heat shield protects control panel.
  • Full bottom chassis provide structural support.
  • Plate mounted 6” (152 mm) heavy-duty stainless steel legs or optional casters assure secure support.
  • One-year parts and labor warranty. Limited warranty on frypot, stainless steel frypot is five years pro-rated

OPTIONS AND ACCESSORIES

  • Extra fry baskets with vinyl coated handles
  • Gas shut off valve, 3/4” N.P.T.
  • Quick disconnect and flexible gas hose, 3/4” N.P.T.
  • 20-1/2” (521 mm) stainless steel backguard
  • Stainless steel tank cover
  • Stainless steel joiner strip
  • Stainless steel drain shelf
  • Heat lamp for IRF-DS
  • 6” (152 mm) casters

Imperial IFS-40-OP Open Pot Floor Fryers 40 lb. Capacity Natural Gas or Liquid Propane - 105,000 BTU

SKU
24000-098
USD $3,121.57

Free Shipping
Have Questions? Talk to our experts.
Mon-Fri 8:30AM
- 5:30PM EST
Product Highlights
  • Oil Capacity: 20 L / 18.14 kg / 40 lbs
  • Two fryer baskets with snap action thermostatic control from 200 - 400°F
  • 105,000 BTU
  • Stainless steel exterior, full bottom structural support, plate mounted legs

Specifications

More Information
MFR #IFS-40-OP
BrandImperial
Height In Inches 44.1
Width in Inches15.5
Depth In Inches34
BTU per Hour105,000
Temperature Range200 to 400 degree F / 93 to 204 degree C
Number of Fryer Baskets2
Capacity40 lbs / 22L of oil
Warranty1-Year Parts & Labor Warranty / 5-Year Frypot Pro-Rated
Product TypeGas Floor Fryer
Certifications
icon-0 icon-1 icon-2 icon-3

Resources and Download

SPECSHEET ( 826.86 kB)
INSTRUCTION MANUAL ( 211.85 kB)
