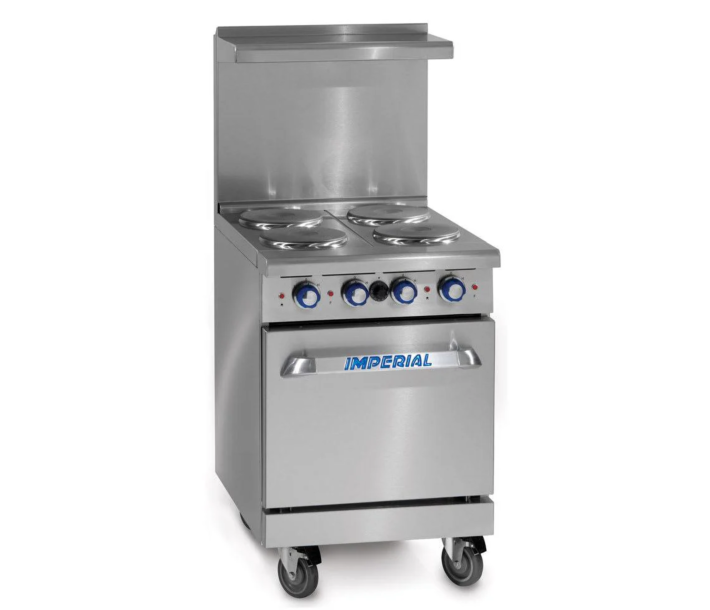

Imperial Electric Range - 24" wide IR-4-E

SKU
24000-101

Imperial Electric Range - 24" wide IR-4-E

ROUND PLATE ELEMENTS

  • 2 KW round plate elements with an easy-to-clean flat surface.
  • Provides a solid flat surface for fast, even heating.
  • Plates are 9" (229) in diameter for maximum pan contact.
  • A solid top prevents spills from entering the unit making clean-up easy.
  • Infinite heat controls for maximum cooking flexibility.

GRIDDLE TOPS

  • A highly polished griddle plate provides even heat across the entire surface.
  • 3 KW serpentine elements are located under the entire griddle plate.
  • A thermostat maintains selected temperatures during peak hours.
  • 4" (102 mm) wide grease gutter and large grease can with 1 gallon (3.8 L) capacity

SPACE SAVER OVEN

  • High performance 5.3 KW element provides even heating throughout the oven interior.
  • Unique baffle above the element distributes heat flow to provide even cooking temperatures throughout the oven.
  • Splatter screen protects the element from spills.
  • Space saver oven interior accommodates standard 18" x 26" (457 x 660 mm) sheet pans front-to-back.
  • Oven is 20" w x 26" d x 14" h (508 w x 660 d x 356 h mm).
  • Heavy-duty thermostat with a temperature range from 150ºF to 500ºF (65ºC to 260ºC).
  • Porcelainized sides, rear, deck, and door lining.
  • Stamped inner door liner provides extra strength while optimizing heat retention.
  • One chrome oven rack is included.

EXTERIOR

  • Stainless steel front, sides, backguard, shelf, landing ledge, and kick plate
  • Welded and polished stainless steel seams
  • Large 5" (127 mm) stainless steel landing ledge
  • Control knobs are durable cast aluminum with a heat protection grip
  • 6" (152 mm) heavy-duty legs with adjustable feet
  • One year parts and labor warranty

OPTIONS AND ACCESSORIES

  • 6" (152 mm) or 11" (279 mm) stainless steel stub back, in lieu of standard backguard
  • Chrome griddle top
  • Reinforcement channels for mounting cheese melter or salamander
  • Extra oven racks
  • 6" (152 mm) casters
  • 480 volts, 3 phase

*This item is built for restaurant applications. In case of residential or non-commercial use of any Commercial Equipment, the warranty shall not be honored.*

Imperial Electric Range - 24" wide IR-4-E

SKU
24000-101
USD $6,004.42

Free Shipping
Have Questions? Talk to our experts.
Mon-Fri 8:30AM
- 5:30PM EST
Product Highlights
  • 24" Electric Range, four solid flat 2 KW round plate elements, one 20" 5.3 KW space-saver oven
  • Porcelainized oven sides, rear, deck, and door lining
  • Large, 5" stainless steel landing ledge for convenient plating

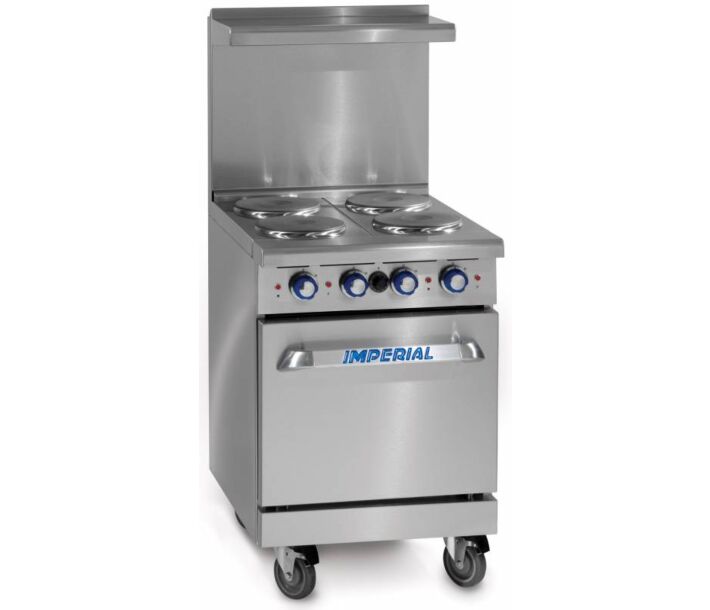

  • Shown with optional casters (not included)

Specifications

More Information
BrandImperial
MFR #IR-4-E
Number of Shelves1
Wattage 13.3 KW
Product TypeCommercial Electric Range
Door StyleSolid Door
Temperature Range150 to 500 degree F / 65 to 260 degree C
Amps17 to 64
Phase1 or 3
Voltage208V or 240V
Depth In Inches31.25
Width in Inches24
Height In Inches 36
Warranty1-Year Parts & Labor Warranty
Certifications
icon-0 icon-1 icon-2

Resources and Download

SPECSHEET ( 567.94 kB)
INSTRUCTION MANUAL ( 161.43 kB)
PARTS ( 205.93 kB)
WARRANTY ( 48.51 kB)
