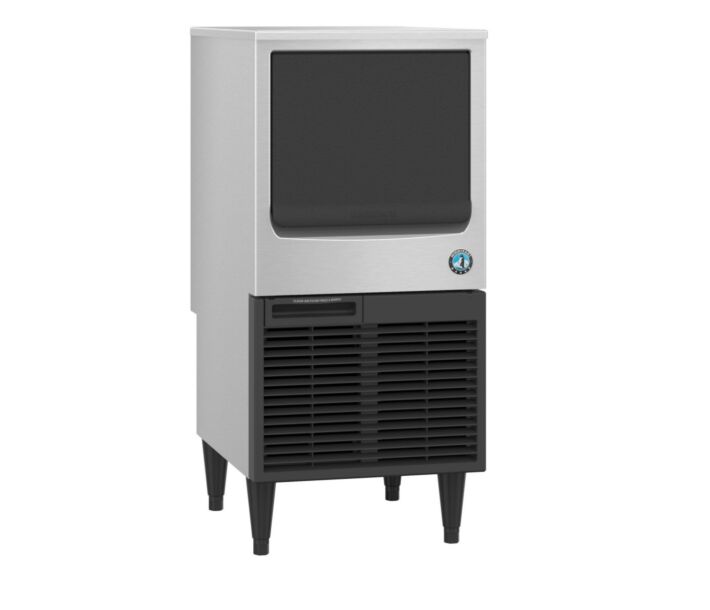

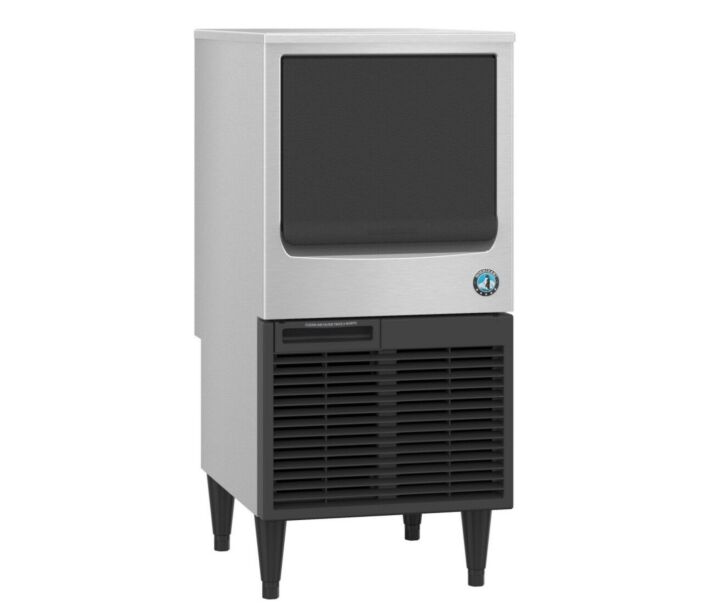

Hoshizaki KM-81BAJ 17 3/4" Air Cooled Undercounter Crescent Cube Ice Machine - 78 lb.

SKU
12000-683
Free Shipping

Hoshizaki KM-81BAJ 17 3/4" Air Cooled Undercounter Crescent Cube Ice Machine - 78 lb.

SKU
12000-683
USD $3,435.65
Have Questions? Talk to our experts.
chat-icon
Mon-Fri 8:30AM -
5:30PM EST
Product Highlights
  • Produces 78 lbs of crescent cubed ice per day
  • Stores up to 38 lbs of ice
  • Ideal for small bars, hotel lobbies, and office break rooms
  • Features CycleSaver™ design and EverCheck™ alert system

Certifications

icon-0 icon-1 icon-2 icon-3

Resources and Download

INSTRUCTION MANUAL ( 883.46 kB)
SPECS SHEET ( 1.14 MB)
PARTS MANUAL ( 1.21 MB)
WARRANTY ( 0.98 MB)
Product Overview

17 3/4" Air Cooled Undercounter Crescent Cube Ice Machine - 78 lb.

The KM-61BAH is capable of producing approximately 71 lbs of crescent cubed ice. This Undercounter Air-cooled, Self Contained, Built-in Storage Bin icemaker stores up to 38 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-61BAH requires a Single phase, 115v/60/1 6.5 ft cord with NEMA 5-15 plug electrical connection. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.

FEATURES:

  • The ice production per 24 hours is up to 78 lbs.
  • Has built-in storage with a capacity of 1.3ft | 38 lbs
  • Constructed with a durable stainless steel exterior
  • Front in and front out airflow
  • Equipped with a slide indoor
  • Its air filter is removable
  • Power switch accessible without panel removal
  • Built-in installation without legs is 33” H
  • Uses an R-134a refrigerant

Specifications

More Information
BrandHoshizaki
Product TypeAir Cooled Undercounter
MFR #KM-81BAJ
Voltage115V
Hertz60
Phase1
Capacity1.3 cu. ft. / 38 lbs
Production CapacityUp to 71 lbs. of ice production per 24 hours
Horsepower10.6 used per 100 lbs.
RefrigerantR134A
Temperature Range45 to 90 degree F
NEMA5-15P
Amps3.5A
Exterior MaterialStainless Steel
Total Width17.75
Total Height39
Total Depth24.25
Warranty3-year Parts & Labor/5-year Compressor and Evaporator
