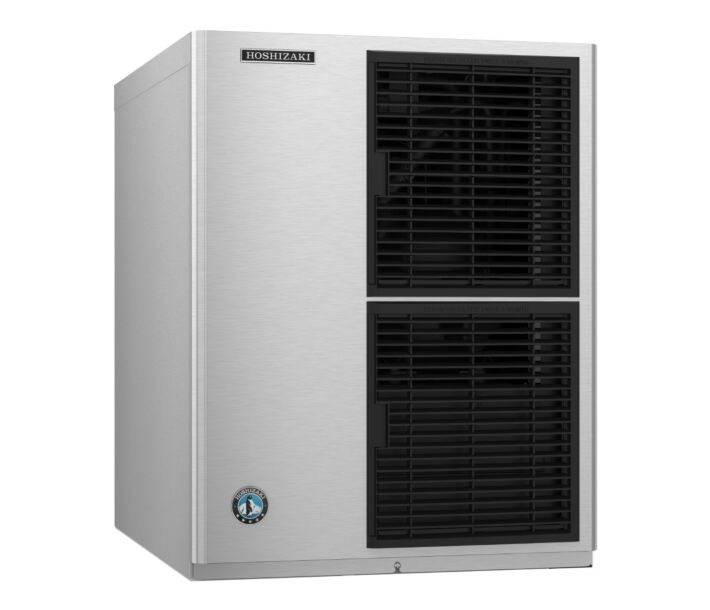

Hoshizaki Air-Cooled Crescent Cuber Icemaker

The KM-520MAJ is capable of producing approximately 556 lbs of crescent cubed ice. Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Air-cooled, Slim Line Modular icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-520MAJ requires a Single phase, 115v/60/1, 3 wires, including ground. Must be hardwired at the site, no cord/plug included. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details. Replaces KM-515MAJ.

FEATURES:

• Dimensions: 22″ W x 27-3/8″ D x 28″ H
• Up to 556 lbs of ice produced per 24 hours
• Mount 2 units side-by-side for 2x the ice production
• Produces crescent-shaped ice cubes
• Durable stainless steel exterior
• Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
• EverCheck™ alert system
• CycleSaver™ design
• Protected by H-GUARD Plus Antimicrobial Agent
• R-404A refrigerant (1 lbs. 10.8 oz. / 760 g)
• Heat Rejection:7000 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 10.6 amps (20 Amp Max fuse)
• 4.68 kwh/100 lbs.@ 90/70
• Single-phase, 115v/60/1, 3 wire, including ground. Must be hardwired at the site, no cord/plug included
• ENERGY STAR® qualified
• Three Years: Parts & Labor warranty on the entire machine.
• Five Years: Parts & Labor warranty on evaporator
