Hobart LXnH-30 High-Temp Low Amp (30A) Undercounter dishwasher Up to 32 Racks per Hour 120V/ 208-240V / 60 / 1
SKU
27000-080
New
Free Shipping
Hobart LXnH-30 High-Temp Low Amp (30A) Undercounter dishwasher Up to 32 Racks per Hour 120V/ 208-240V / 60 / 1
SKU
27000-080
USD $9,300.90
Have Questions? Talk to our experts.
Product Highlights
Hobart LXnH-30 High-Temp Low Amp (30A) Undercounter dishwasher Up to 32 Racks per Hour 120V/ 208-240V / 60 / 1 USA
- Racks per hour – Light 32 / Normal 15
- .62 gallons of water per cycle
- Two-level racking capability
- High temperature sanitization unit

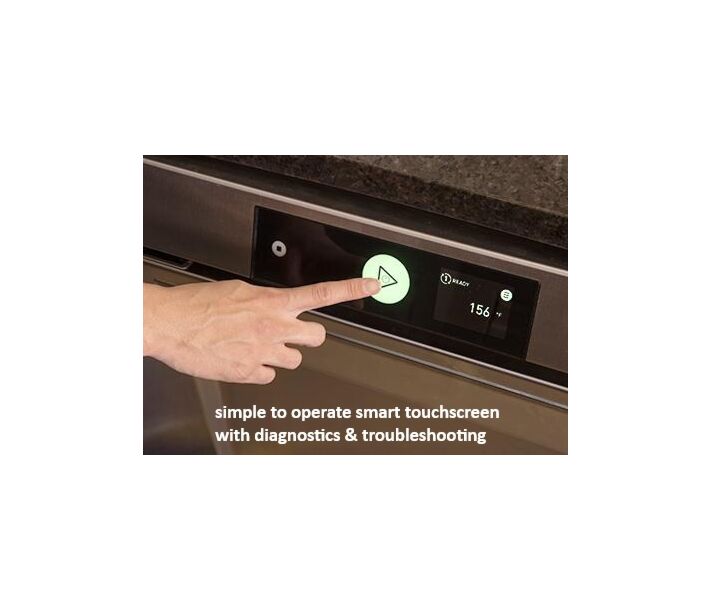

- User-friendly smart touchscreen controls
- Wi-Fi connectivity
- SmartConnect App with machine status, temperature logs, error code reporting, and usage analysis
- AutoClean cycle washes down inside of machine at shutdown
- 17" door opening
- Temperature and chemical alerts (lockouts available)
- Sense-A-Temp™ 70°F rise electric booster heater
- Delime notification with cycle
- Chemical pumps with auto-prime for detergent and rinse aid
- Soft start to protect glassware
- Advanced diagnostics and service connection
- Deep drawn stainless steel tank
- Revolving upper and lower anti-clogging interchangeable wash arms
- Revolving upper and lower interchangeable rinse arms
- 2-stage wash tank filtration
- Energy saver mode
- Automatic pumped rinse and drain
- Automatic fill
- Electric tank heat
- Combination rack
- Peg rack (excludes LXnH-2L)
Product Files
Product Overview

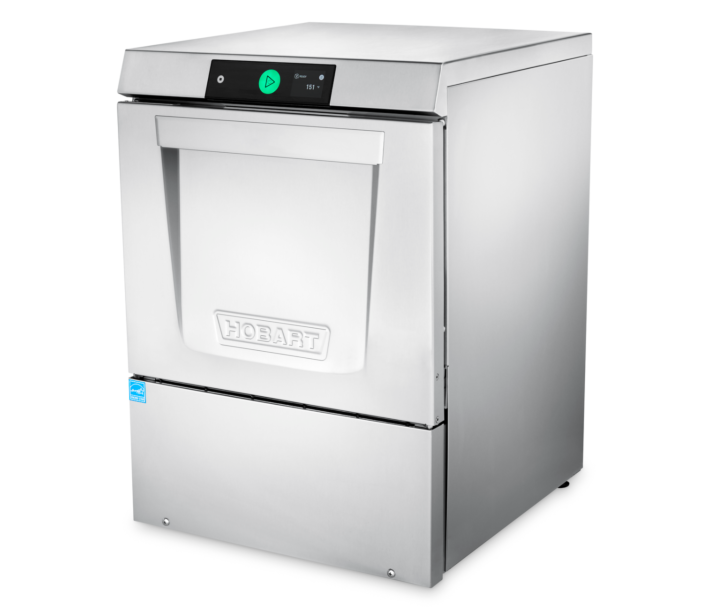

The Hobart LXnH-30 is a high-temperature undercounter dishwasher with lower Amperage than standard models, built for commercial kitchens that demand fast throughput and high sanitation standards and restricted electrical set up. It’s designed to operate solely on a hot water supply and deliver high-temperature sanitizing with a streamlined footprint.
For operations looking for a compact undercounter dishwasher that doesn’t compromise on performance or sanitation, the LXnH-30 offers a smart choice. Its high rack-throughput, intelligent diagnostics, and efficient water usage make it well-suited for cafés, smaller restaurants or any back-of-house environment where space is at a premium but performance matters.
Options & Accessories (Available at extra cost)
- Hobart exclusive two-level racking kit boosts capacity up to 48 racks per hour
- Power cord kit
- 6" stainless steel stand
- 17" stainless steel stand with storage
- External height adjustable casters
- Internal height adjustable casters (3")
- Drain water tempering kit
- Water hammer arrestor kit
- Splash reduction panel
- Trim strip
- Pressure regulator valve
Important Information (More details are available in the spec sheet)
- All vertical machine dimensions taken from floor may be increased by 1".
- Moist air escapes from the door.
- Use only moisture resistant materials adjacent to dishmachine sides and top.
- A vent hood is not recommended above the undercounter dishmachine since it does not produce excessive vapors.
Plumbing Notes (More details are available in the spec sheet)
- Water hammer arrestor (meeting ASSE-1010 Standard or equivalent) to be supplied (by others) in common water supply line at service connection.
- Recommended water hardness to be 3 grains or less for best results.
Electrical Notes (More details are available in the spec sheet)
- For supply connections, use copper wire only rated at 90°C minimum.
- This system requires three power wires which includes a current carrying neutral, an additional fourth wire must be provided for machine ground.
- Dishmachine not provided with internal GFCI protection.
UPC: 62828801270000808
Specifications
Hobart LXnH-30 High-Temp Low Amp (30A) Undercounter dishwasher Up to 32 Racks per Hour 120V/ 208-240V / 60 / 1 USA
| Manufacturing origin | United States |
|---|---|
| MFR # | LXnH-30 |
| Brand | Hobart |
| Net Weight | appx. 180 lbs |
| Total Depth | 25 9/16" (43 1/2" with front door open) |
| Total Width | 23 15/16" |
| Total Height | 33 3/4" |
| Capacity | Tank Capacity 2.9 U.S. Gallons |
| NEMA | Power Cord Kit not included, to be purchased separately |
| Amps | 30A |
| Horsepower | 0.85 (Wash); 0.19 (Rinse) |
| Hertz | 60 |
| Voltage | 120V / 208-240V |
| Phase | 1 |
| Door Style | Solid Door |
| Door Type | Swing down |
| Drain Size | 5/8" barb fitting with 6' long hose supplied with machine. |
| Flow Rate | Peak Dran Flow Rate 4.0 U.S. Gallon per Minute |
| Water Inlet Size | 3/4" female garden hose fitting on 6' long hose supplied with machine |
| Booster Heater Included | Yes - Tank Heater 2000W |
| Number of Wash Cycles | 2 |
| Wash Cycle Time | Light 108 / Normal 238 |
| Racks Per Hour | Light 32 / Normal 15 |
| Water Usage | 0.62 U.S. Gallon (per Cycle); 19.8 U.S. Gallon (per Hour) |
| Warranty | One year parts and labor warranty provided by Hobart |
| Product Type | Undercounter Dishwasher, High Temp |
| Style | High-Temp Sanitizing |
| Electrical | 120V / 208-240V / 60 / 1 |
