Hobart LXGnR-4 Advansys Steam Elimination High-Temp Undercounter Dishwasher Up to 30 Racks per Hour 120V / 208-240V / 60 / 1 ADA Compliant
Hobart LXGnR-4 Advansys Steam Elimination High-Temp Undercounter Dishwasher Up to 30 Racks per Hour 120V / 208-240V / 60 / 1 ADA Compliant
Product Highlights
Hobart LXGnR-4 Advansys Steam Elimination High-Temp Undercounter Dishwasher Up to 30 Racks per Hour 120V / 208-240V / 60 / 1 ADA Compliant USA
- Racks per hour – Light 30 / Normal 24
- .62 gallons of water per cycle
- High temperature sanitization unit
- Steam elimination and energy recovery
- AutoClean cycle washes down inside of machine at shutdown
- User-friendly smart touchscreen controls
- Wi-Fi connectivity
- SmartConnect App with machine status, temperature logs, error code reporting, and usage analysis
- Temperature and chemical alerts (lockouts available)
- Sense-A-Temp™ 70°F rise electric booster heater
- Chemical pumps with auto-prime for detergent and rinse aid
- Soft start to protect glassware
- Complete Delime™ with Delime Notification, Auto Dispensing and Booster Guard™
- Advanced Diagnostics and Service Connection
- Deep drawn stainless steel tank
- Revolving upper and lower anti-clogging interchangeable wash arms
- Snap-in revolving upper and lower interchangeable rinse arms
- 2-stage wash tank filtration
- Energy saver mode
- Automatic pumped rinse and drain
- 12" door opening
- Automatic fill
- Electric tank heat
- One glass/wine rack
Product Files
Product Overview
The Hobart Advansys LXGnR-4 redefines efficiency and performance in glasswashing. Engineered to meet the needs of busy bars, restaurants, and hospitality operations, this NSF-rated undercounter glasswasher delivers powerful, high-temperature sanitization in a sleek, compact, and energy-efficient design.
Built to be ADA-compliant, the LXGnR is designed to meet the Americans with Disabilities Act (ADA) height and accessibility requirements, ensuring it can be comfortably and safely operated by individuals of all abilities. The lower profile makes it ideal for installation beneath ADA-height countertops—without sacrificing capacity, power, or performance.
With ENERGY STAR® certification, steam elimination, and energy recovery technology, the LXGnR reduces operating costs while supporting sustainability in a sleek, durable stainless-steel design perfect for any bar or restaurant.
Options & Accessories (Available at extra cost)
- Power cord kit
- Drain water tempering kit
- Splash reduction panel
- Door lock (prevents door from opening until completion of cycle)
- Trim strip
- External height adjustable casters
- Internal height adjustable casters (3")
- Water hammer arrestor kit
- Pumped drain air gap kit

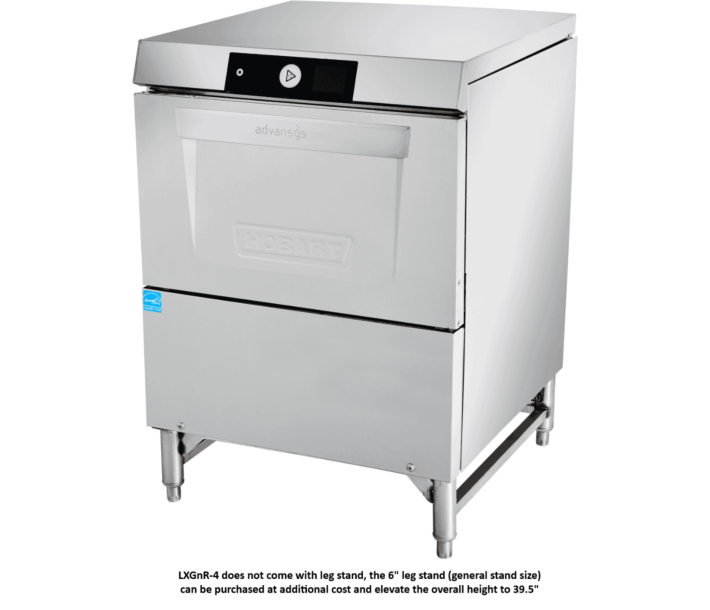

- 6" Leg Stand (overall height = 39.5")
Electric Note
- For supply connections, use copper wire only rated at 90°C minimum.
- This system requires three power wires which includes a current carrying neutral, an additional fourth wire must be provided for machine ground.
- Dishmachine not provided with internal GFCI protection.
UPC: 62828801270000884
Specifications
Hobart LXGnR-4 Advansys Steam Elimination High-Temp Undercounter Dishwasher Up to 30 Racks per Hour 120V / 208-240V / 60 / 1 ADA Compliant USA
| Manufacturing origin | United States |
|---|---|
| MFR # | LXGnR-4 |
| Brand | Hobart |
| Net Weight | appx 200 lbs |
| Total Depth | 26 13/16" (39 11/16" when door is fully extended) |
| Total Width | 23 15/16" |
| Total Height | 27.4" |
| Capacity | 2.9 U.S. Gallon Tank Capacity |
| NEMA | Needs a certified eletrician to set up on field; or purchase a power cord supply kit |
| Amps | 34 A |
| Horsepower | 0.85 HP (Wash); 0.19 HP (Rinse) |
| Hertz | 60 |
| Voltage | 120V / 208-240V |
| Phase | 1 |
| Door Style | Solid Door |
| Door Type | Swing down |
| Drain Size | 5/8" barb fitting with 6' long hose supplied with machine. |
| Flow Rate | Peak Dran Flow Rate 4.0 U.S. Gallon per Minute |
| Water Inlet Size | 3/4" female garden hose fitting on 6' long hose supplied with machine; 55‑85°F (cold) recommended for LXGnR |
| Booster Heater Included | Yes - Tank Heater 1800 W; Electric Booster 4900 W |
| Number of Wash Cycles | 2 |
| Wash Cycle Time | Light 119 / Normal 148 |
| Racks Per Hour | Light 30 / Normal 24 |
| Water Usage | 0.62 U.S. Gallon (per Cycle); 19.8 U.S. Gallon (per Hour) |
| Warranty | One year parts and labor warranty provided by Hobart |
| Product Type | Undercounter Glasswasher, High Temp |
| Style | High-Temp Sanitizing |
| Electrical | 120V / 208-240V / 60 / 1 |
