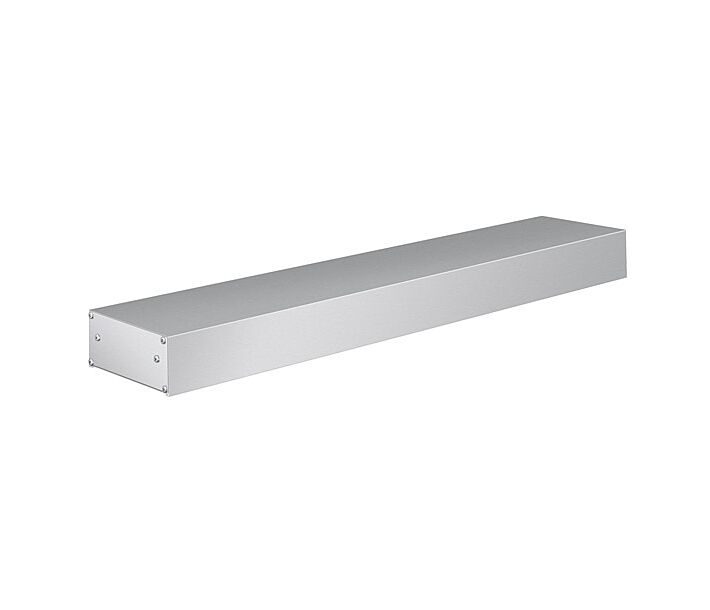

Hatco GRAH-60 Glo-Ray Infrared Strip Heater

SKU
32000-016

GRAH-60 Glo-Ray Infrared Strip Heater

Hatco Glo-Ray® Infrared Foodwarmers safely keep all hot foods at optimum serving temperatures longer. Foods do not dry out or become discolored; even the most delicate dishes hold that “just-prepared” look. The Glo- Ray pre-focused heat pattern directs heat from a tubular element to bathe the entire holding surface.

Features:

  • Prefocused heat pattern covers the entire holding surface
  • Consistent holding temperatures with no "cold spots"
  • Sturdy extruded aluminum housings that do not sag, in widths from 18" to 144" (457 to 3658mm)
  • Standard and high watt models are available
  • Reflector does not blacken, maintaining a consistent heat pattern
  • Protective wire guards under the heating element
  • Insulation minimizes heat loss
  • Factory assembled with mounting tabs, ready to install quickly and easily
  • All units single phase only

Specification:

Standard Watt

  • Volts: 120 | Watt: 1050 | Amps: 8.8 | Plug: NEMA 5-15P
  • Volts: 208 | Watt: 1050 | Amps: 5.0
  • Volts: 240 | Watt: 1050 | Amps: 4.4
  • Volts: 200 | Watt: 971 | Amps: 4.9
  • Volts: 220 | Watt: 1050 | Amps: 4.8
  • Volts: 240 | Watt: 1050 | Amps: 4.4 | Plug: CEE 7-7, Schuko BS - 1363
  • Volts: 220 - 230 (CE) | Watt: 1050 - 1148 | Amps: 4.8 - 5.0 | Plug: CEE 7-7, Schuko BS - 1363
  • Volts: 230 - 240 (CE) | Watt: 964 - 1050 | Amps: 4.2 - 4.4 | Plug: CEE 7-7, Schuko BS - 1363

High Watt

  • Volts: 120 | Watt: 1400 | Amps: 11.7 | Plug: NEMA 5-15P
  • Volts: 208 | Watt: 1400 | Amps: 6.7
  • Volts: 240 | Watt: 1400 | Amps: 5.8
  • Volts: 200 | Watt: 1400 | Amps: 6.5
  • Volts: 220 | Watt: 1400 | Amps: 6.4 | Plug: CEE 7-7, Schuko BS - 1363
  • Volts: 240 | Watt: 1400 | Amps: 5.8 | Plug: CEE 7-7, Schuko BS - 1363
  • Volts: 220 - 230 (CE) | Watt: 1400 - 1530 | Amps: 6.4 - 6.7 | Plug: CEE 7-7, Schuko BS - 1363
  • Volts: 230 - 240 (CE) | Watt: 1286 - 1400 | Amps: 5.6 - 5.8 | Plug: CEE 7-7, Schuko BS - 1363

Hatco GRAH-60 Glo-Ray Infrared Strip Heater

SKU
32000-016
USD $329.99
Have Questions? Talk to our experts.
Mon-Fri 8:30AM
- 5:30PM EST
Product Highlights
  • Unit is configured for hard wire installation
  • No plug provided
  • Consistent holding temperatures and consistent heat pattern
  • Sturdy extruded aluminum housings
  • Insulation minimizes heat loss
  • Ready to install quickly and easily



Specifications

More Information
BrandHatco
MFR #GRAH-60
NEMA5-15P | CEE 7-7, Schuko BS-1363
Wattage 1050W
Product TypeInfrared Strip Heater
Exterior MaterialAluminum
Amps4.2 - 11.7 AMP
Phase1Ph
Hertz60Hz
Voltage120V
Net Weight14 lbs. | 7 kg.
Depth In Inches6
Width in Inches60
Height In Inches 2.5
Certifications
icon-0 icon-1 icon-2

Resources and Download

SPECSHEET ( 723.68 kB)
INSTRUCTION MANUAL ( 2.16 MB)
PARTS ( 636.00 kB)
EXPLODED VIEW ( 680.11 kB)
