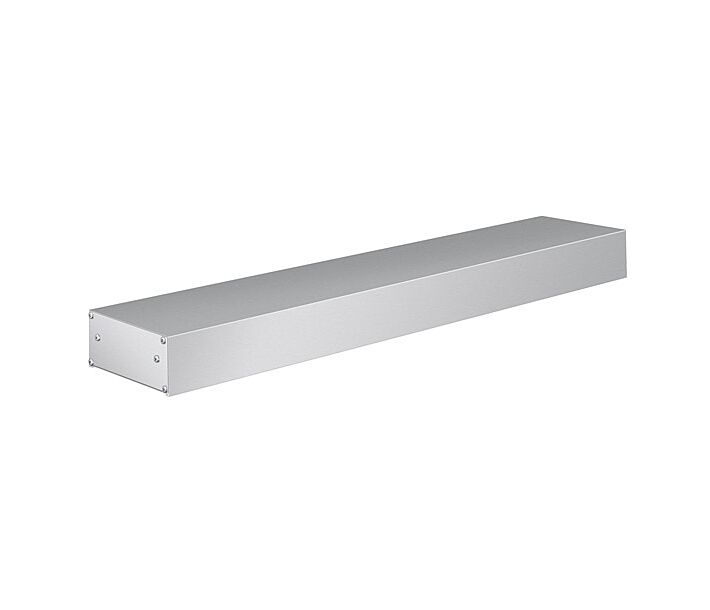

GRAH-48 Glo-Ray Infrared Strip Heater

Hatco Glo-Ray® Infrared Foodwarmers safely keep all hot foods at optimum serving temperatures longer. Foods do not dry out or become discolored; even the most delicate dishes hold that “just-prepared” look. The Glo- Ray pre-focused heat pattern directs heat from a tubular element to bathe the entire holding surface.

Features:

• Prefocused heat pattern covers the entire holding surface
• Consistent holding temperatures with no "cold spots"
• Sturdy extruded aluminum housings that do not sag, in widths from 18" to 144" (457 to 3658mm)
• Standard and high watt models are available
• Reflector does not blacken, maintaining a consistent heat pattern
• Protective wire guards under the heating element
• Insulation minimizes heat loss
• Factory assembled with mounting tabs, ready to install quickly and easily
• All units single phase only

Specification:

Standard Watt

• Volts: 120 | Watt: 800 | Amps: 6.7 | Plug: NEMA 5-15P
• Volts: 208 | Watt: 800 | Amps: 3.8
• Volts: 240 | Watt: 800 | Amps: 3.3
• Volts: 200 | Watt: 740 | Amps: 3.7
• Volts: 220 | Watt: 800 | Amps: 3.6
• Volts: 240 | Watt: 800 | Amps: 3.3 | Plug: CEE 7-7, Schuko BS - 1363
• Volts: 220 - 230 (CE) | Watt: 800 - 874 | Amps: 3.6 - 3.8 | Plug: CEE 7-7, Schuko BS - 1363
• Volts: 230 - 240 (CE) | Watt: 735 - 800 | Amps: 3.2 - 3.3 | Plug: CEE 7-7, Schuko BS - 1363

High Watt

• Volts: 120 | Watt: 1100 | Amps: 9.2 | Plug: NEMA 5-15P
• Volts: 208 | Watt: 1100 | Amps: 5.3
• Volts: 240 | Watt: 1100 | Amps: 4.6
• Volts: 100 | Watt: 1100 | Amps: 11.0
• Volts: 200 | Watt: 1017 | Amps: 5.1
• Volts: 220 | Watt: 1100 | Amps: 5.0 | Plug: CEE 7-7, Schuko BS - 1363
• Volts: 240 | Watt: 1100 | Amps: 4.6 | Plug: CEE 7-7, Schuko BS - 1363
• Volts: 220 - 230 (CE) | Watt: 1100 - 1202 | Amps: 5.0 - 5.2 | Plug: CEE 7-7, Schuko BS - 1363
• Volts: 230 - 240 (CE) | Watt: 1010 - 1100 | Amps: 4.4 - 4.6 | Plug: CEE 7-7, Schuko BS - 1363
