HABCO ESM49HCTD 54" Double Swing Glass Door Cold Space Merchandiser 49 cu.ft. - 115V, 0.25HP
Rent-Try-Buy™ from just USD $59.65/wk
Learn more
Product Highlights
HABCO ESM49HCTD 54" Double Swing Glass Door Cold Space Merchandiser 49 cu.ft. - 115V, 0.25HP USA
- Uses R134a refrigerant
- Finless Free&Clear Condenser Coil maximizes airflow over the compressor
- Designed to hold 34°F to 39°F/1°C to 4°C
- Automatic and stainless steel condensate control system
*ESM49: Designed to optimize the merchandising experience to the highest standards of quality and performance*
Product Files
Product Overview

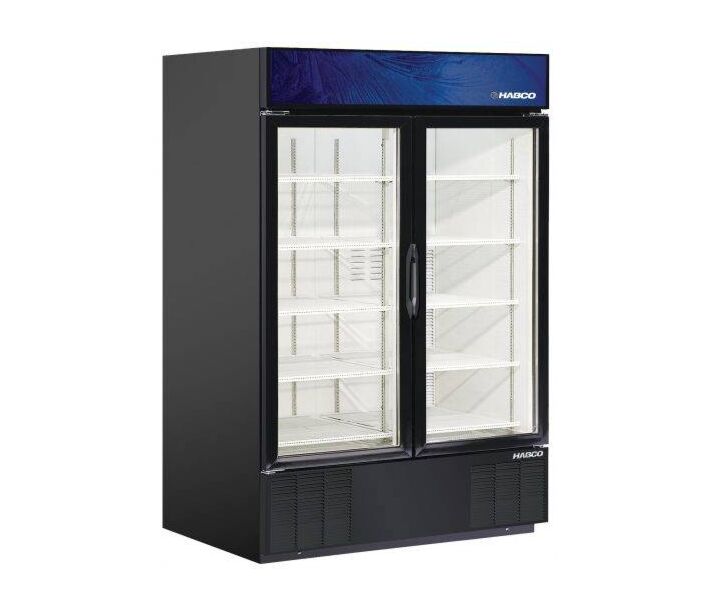

HABCO ESM49HCTD Cold Space Merchandiser Double Swing Door
Premium swing door Cold Space Merchandiser® provides added capacity with sparkling LED merchandising impact. Ideal for retail floor or anywhere where maximum product facings are vital. Authentically front-breathing this model can be built-in top, bottom, rear, and both sides.
Refrigeration:
- Self-contained Cassette® forced-air refrigeration employs R-134a refrigerant within a sealed capillary tube system.
- Cassette® refrigeration is bottom-mounted and removable from the front for ease of maintenance. Refrigeration may be exchanged or upgraded without a mechanic. Designed to hold 34°F to 39°F (1°C to 4°C).
- Priority, directed airflow provides optimum cooling and energy efficiency within the cabinet and exclusively at front of the unit for optimized heat exchange ventilation.
- Finless, Free&Clear™ Condenser Coil maximizes air-flow over the compressor, reduces energy consumption, and is non-clogging.
- Automatic, stainless steel condensate control system.
- Quality, self-lubricating, and sealed motors with streamlined air-flow provide quieter yet robust refrigeration
Cabinet:
- Exterior – durable textured black.
- Interior – NSF-approved white aluminum liner with stainless steel floor.
- Ergonomic raised interior floor.
- Space-Saving Design – air ventilation exclusively from the front of the unit.
- Insulation – the cabinet is foamed-in-place with eco-conscious, polyurethane insulation.
- Heavy-duty thread-in leveler legs.
Doors:
- Self-Closing Swing Doors feature a hold-open position and spring-back protection.
- Magnetic gaskets are single-piece bead-mount construction easily removable for cleaning.
- Heat Reflecting HABCO Insulated Safety Glass with black extruded frame.
- Integrated, injection-molded pocket handle(s).
Lighting:
- Energy Efficient LED Lighting System for crisp Illuminated Signage and Interior Display, on Switch.
Storage:
- Ten (10) white coated shelves 24 1/2"W x 21 1/2" D (623mm x 547mm), are NSF approved.
- Heavy-duty aluminum shelving pilasters will not peel or chip adjustment of 1/2" (13mm) increments.
- NSF-7 is compliant with the storage or display of pre-packaged aseptic products.
Electrical:
- Factory power cord installed for connection to a sole-use (dedicated) 115V/60Hz/1-Phase, 15 Amp circuit.
Specifications
HABCO ESM49HCTD 54" Double Swing Glass Door Cold Space Merchandiser 49 cu.ft. - 115V, 0.25HP USA
| Brand | Habco |
|---|---|
| MFR # | ESM49HCTD |
| Voltage | 115V |
| Hertz | 60 |
| Phase | 1 |
| Door Style | Glass Door |
| Horsepower | 0.25 HP |
| Number of Shelves | 12 |
| Number of Doors | 2 |
| Refrigerant | R290 |
| Temperature Range | 34 to 39 degree F / 1 to 4 degree C |
| NEMA | 5-15P |
| Amps | 4.3 |
| Exterior Material | Durable Textured Black |
| Interior Material | White Aluminum |
| Interior Lighting | LED |
| Net Width | 54" |
| Net Height | 78" |
| Net Depth | 31" |
| Warranty | 3 years limited parts and labor, 5 years on compressor provided by Habco (note that Habco may change without notice) |
Frequently Asked Questions
What sets the refrigeration in the HABCO ESM49HCTD Double Swing Glass Door Cold Space Merchandiser apart?
It runs on R290 natural hydrocarbon refrigerant through a front-removable Cassette system, so the HABCO ESM49HCTD Double Swing Glass Door Cold Space Merchandiser uses an eco-friendly charge and can be serviced from the front without a mechanic. It holds a steady 33°F to 38°F.
How much display space does the HABCO ESM49HCTD Double Swing Glass Door Cold Space Merchandiser give?
At 49 cubic feet behind two swing glass doors, the HABCO ESM49HCTD Double Swing Glass Door Cold Space Merchandiser nearly doubles the merchandising face of a single-door unit. LED-lit adjustable NSF shelving suits high-volume grab-and-go retail. Browse the wider HABCO refrigeration lineup for sizing.
Does the HABCO ESM49HCTD Double Swing Glass Door Cold Space Merchandiser include warranty coverage?
Coverage runs 3 years parts and labor with 5 years on the compressor, provided by Habco. Warranty terms on the HABCO ESM49HCTD Double Swing Glass Door Cold Space Merchandiser are set by Habco and can change without notice, so verify them at the time of purchase.
Which upkeep keeps the HABCO ESM49HCTD Double Swing Glass Door Cold Space Merchandiser efficient?
Cleaning the front-mounted Free&Clear condenser and the removable magnetic gaskets handles most of it. Because the condenser on the HABCO ESM49HCTD Double Swing Glass Door Cold Space Merchandiser is finless and non-clogging, it resists dust buildup and needs less frequent coil service.
Are there setup rules that keep the HABCO ESM49HCTD Double Swing Glass Door Cold Space Merchandiser under warranty?
Installation matters for both performance and coverage. Protect the HABCO ESM49HCTD Double Swing Glass Door Cold Space Merchandiser by: Wiring it to a dedicated 115V circuit Keeping front ventilation clear, since airflow is front-only Leveling the cabinet on its legs before stocking
Why choose the HABCO ESM49HCTD Double Swing Glass Door Cold Space Merchandiser over a single-door unit?
Two doors mean wider product visibility and fewer restock trips during peak traffic. The HABCO ESM49HCTD Double Swing Glass Door Cold Space Merchandiser fits busy stores that need one big, well-lit cold display instead of two separate cabinets.
Can the HABCO ESM49HCTD Double Swing Glass Door Cold Space Merchandiser anchor a front-of-house display?
Yes, its wide lit face is built to pull customers in at high-traffic retail spots. Line it up with other glass door merchandiser refrigerators to plan a full cold merchandising wall.
