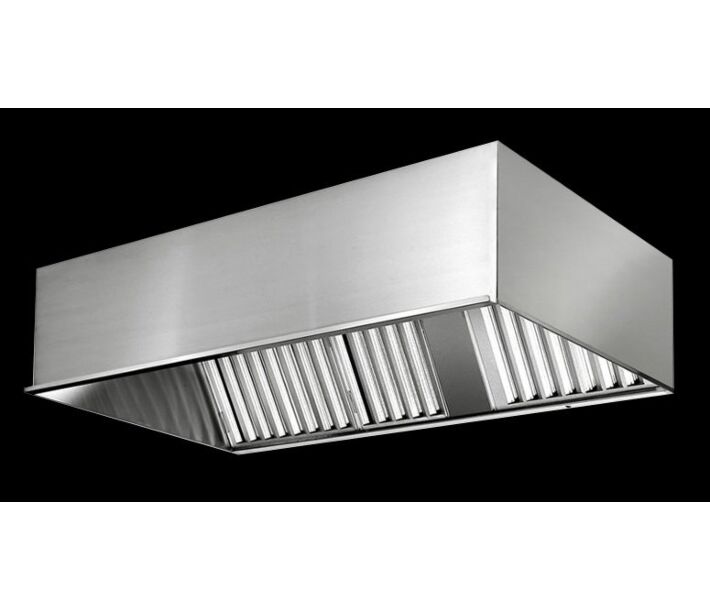

Description: FAST wall-type exhaust hood model PS-LP-SSH complete with baffle filters. For heavy cooking applications (woks, char broilers, live charcoal, etc.) and low-ceiling kitchen

Construction: Exposed hood surface: type 430 stainless steel (304 optional) with #4finish (brushed). Non-exposed hood surface: stainless steel with #2Bfinish. Minimum 18-gauge (1.2 mm) thickness. All visible welded joints arepolished to match original finish. To meet NFPA- 96 requirements.

Installation: Suspension (recommended height).The hood should be installed 6’ 6” (1,981 mm) from the floor.Semi-combustible materials.A clearance of 3” (76 mm) is required when the hood is in contact withsemi-combustible materials. As per NFPA-96 standards, a stainless steelspacer will be required.

Electrical:Junction box and pre-wiring for lighting system may be factory installed if required.

Specifications:
• Constructed of sturdy 18-gauge (1.2 mm) stainless steel.
• Available in lengths of 3’ 0” to 16’ 0” (914 mm to 4,877 mm)
• Washable baffle filters
• Specially designed for low-ceiling kitchens
• Easy installation
• Listed NSF, ETL and
• Many options available (see reverse)
• Quick delivery

Enclosure panels (optional): The space between the top of the hood and the ceiling may be closed with stainless steel panels in the same finish as the hood.
