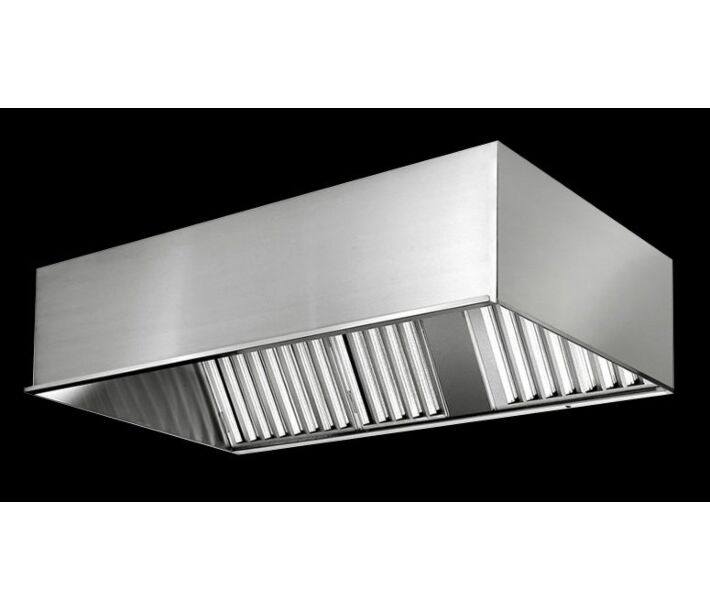

Description: FAST wall-type exhaust hood model SSH complete with baffle filters.

Construction: Exposed hood surface: type 430 stainless steel (304 optional) with #4 finish (brushed). Non-exposed hood surface: stainless steel with #2B finish. Minimum 18-gauge (1.2 mm) thickness. All visible welded joints are polished to match original finish. To meet NFPA-96 requirements.

Installation: Suspension (recommended height) The lower front edge of the hood can be installed up to 26” max over thecooking surface.Semi-combustible materials. A clearance of 3” (76 mm) is required when the hood is in contact with semi-combustible materials. As per NFPA-96 standards, a stainless steel spacer will be required.

Specifications:

• Constructed of sturdy 18-gauge (1.2 mm) stainless steel

• Available in lengths of 3’ 0” to 16’ 0” (914 mm to 4,877 mm)

• Washable baffle filters

• Easy installation

• Listed NSF, ETL and

• Many options available (see reverse)

• Quick delivery

Enclosure panels (optional):The space between the top of the hood and the ceiling may be closed with stainless steel panels in the same finish as the hood.
