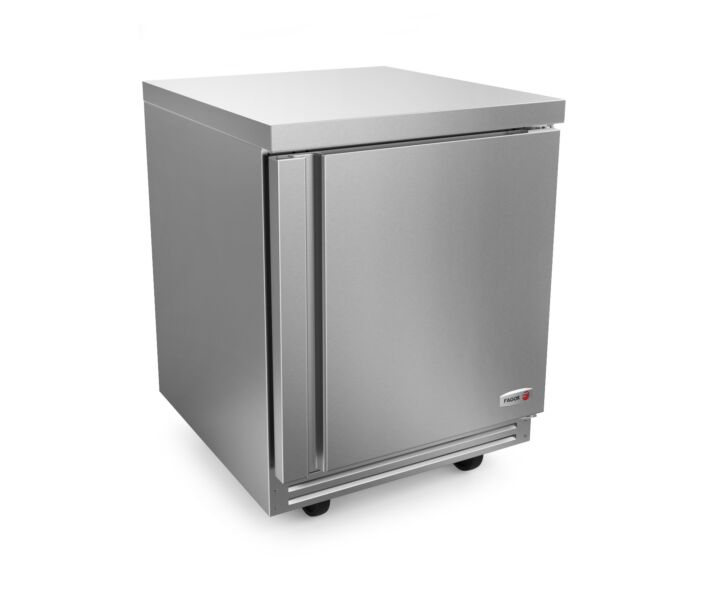

Fagor FUF-27-N 27" Undercounter Freezer, 7 Cu. Ft. – 115V/1
Fagor FUF-27-N 27" Undercounter Freezer, 7 Cu. Ft. – 115V/1
Product Highlights
Fagor FUF-27-N 27" Undercounter Freezer, 7 Cu. Ft. – 115V/1 USA
- Redesigned “Next Generation” undercounters maintain proper temperature even in 100°F environments.
- Exclusive base design provides 30% more interior capacity than most comparable models.
- All-stainless-steel interior and exterior with NSF-compliant coved-corner floor.
- Heavy-duty stainless steel door with full-length recessed handle and insulated step-design interior.
- Factory-balanced system using eco-friendly R-134A (refrigerators) and R-290 (freezers).
- Front-breathing refrigeration suitable for built-in installations.
- Standard 36" height; optional 3" casters for 34" applications.
Product Files
Product Overview
The FUR/FUF lineup provides a premium range of undercounter refrigerators and freezers ideal for professional kitchens with limited space. These cabinets are crafted to sustain reliable temperature control, even under extreme ambient conditions, by utilizing an advanced refrigeration layout. A specially designed base increases interior capacity significantly — over 30% more than typical competitors.
Constructed from rugged stainless steel, both the inside and outside preserve a sanitary environment, while the rounded corner flooring aligns with NSF guidelines. Doors are engineered for durability and thermal efficiency, featuring recessed handles for ease of use and a stepped interior that boosts insulation and protects the gasket. Magnetic seals are tool-free to remove, and doors self-close or remain open at 120° for flexibility.
The Undercounter Freezer (FUF) series offered in single- and double-door sizes (e.g., 27”, 48”, 60”) with robust cooling and efficient insulation to keep contents frozen.
Options & Accessories
- Epoxy coated shevles with clips
- 3” casters (set of 4, front 2 w/ brakes)
- Removable 4” back splash.
- Single & Double tier overshelf
- 220 volts / 50 cycles / 1 phase
Specifications
Fagor FUF-27-N 27" Undercounter Freezer, 7 Cu. Ft. – 115V/1 USA
| Manufacturing origin | Mexico |
|---|---|
| Style | Standard |
| Brand | Fagor |
| Product Type | Undercounter Freezer |
| MFR # | FUF-27-N |
| Voltage | 115V |
| Hertz | 60 |
| Phase | 1 |
| Capacity | 9.5 cu.ft |
| Door Style | Solid Door |
| Door Type | Swing |
| Horsepower | 1/4 HP |
| Number of Shelves | 2 |
| Number of Doors | 1 |
| Refrigerant | R290 |
| Temperature Range | 0˚ to -5˚ F |
| Casters | Standard 5 diameter casters, front 2 with brakes. |
| NEMA | 5-15 P |
| Amps | 2.5 A |
| Construction | Stainelss Steel |
| Total Width | 27 3/4" |
| Total Height | 35 3/4" |
| Total Depth | 30 1/8" |
| Net Weight | appx. 170 lbs |
| Warranty | Three Year warranty provided by Fagor Commericals |
