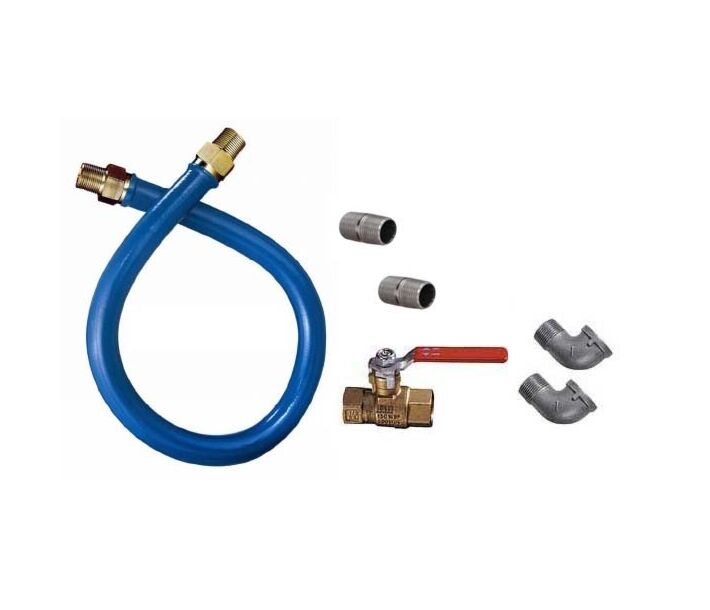

1675KIT48PS Safety System Stationary Gas Connector Kit

3/4 IN ID, 48 IN Length, Stainless Steel Moveable Connector, Braided, Coated - This 3/4 IN ID, 48 IN long moveable grade gas connector is composed of a 304 stainless steel corrugated tube covered with a tight weave stainless steel braid. The outside hose coating is an antimicrobial PVC coating that inhibits the growth of bacteria, mold, and mildew on the connector. Rotational technology fittings on both ends of the connector rotate 360 degrees, greatly reducing stress at both connector's ends.

Features

• Coating: Blue antimicrobial PVC, melts at 350°F (177°C), the  coating will not hold a flame
• Stress Guard®: 360° rotational end fitting at both ends
• End Fittings: Carbon steel; zinc trivalent chromate

Specifications

• Tubing: Annealed, 304 stainless steel
• Braiding: Multi-strand, stainless steel wire

Approvals & Certifications

• NSF/ANSI 169 – Special-purpose food equipment and devices ANSI Z21.69/CSA 6.16 – Connectors for moveable gas appliances
• Meets requirements of ANSI Z223.1/NFPA 54 National Fuel Gas Code Not for use in temperatures less than 32°F (0°C). For indoor use only. Max operating pressure 1/2 psi.
• The ANSI Z21.69 Standard section 1.7.4 states: Connectors when used on caster-mounted equipment shall be installed with a res raining device, which prevents transmission of the strain to the connector.
