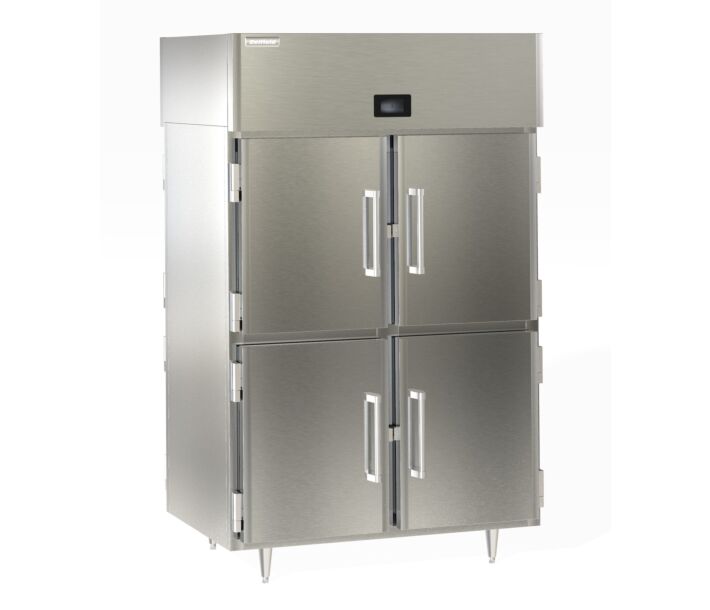

Delfield DSLFPT2-SH 66" Wide Double Section Pass Through Freezer with Solid Half Doors
Delfield DSLFPT2-SH 66" Wide Double Section Pass Through Freezer with Solid Half Doors
-
The Pass-Thru Design Facilitates secure material transfer between rooms
-
Low-Profile Build: Space-saving design fits under counters or in areas with limited vertical clearance.
-
Maintains precise frozen temperatures for sensitive materials.
-
Improves operational efficiency by reducing the need to manually transport frozen items across zones.
-
Ideal for Controlled Environments.
Product Files
The DSLFPT Pass-Thru Freezer is specifically designed to meet the rigorous demands of commercial food production environments that require both strict temperature control and contamination prevention. Its double-sided, pass-thru configuration allows for the efficient transfer of frozen goods between production zones without compromising air quality or workflow. Ideal for batch processing operations, this unit helps maintain cold chain integrity during staging, storage, or packaging.
The low-profile design ensures it fits into space-constrained areas, making it an excellent solution for facilities with limited clearance or where layout flexibility is important. In addition to food applications, the freezer is also suitable for laboratories and pharmaceutical facilities handling temperature-sensitive items such as biological samples, reagents, and vaccines—supporting compliance with regulatory and safety standards.
Standard Features
• Stainless steel exterior and interior
• EasyTouch Control with remote monitoring capability
• Stay-open door feature for easy product loading and unloading
• Stainless steel door(s)
• Door activated interior LED light
• Heavy-duty cylinder lock
• Stainless steel interior door liner
• One piece, snap-in door gaskets
• Stainless steel breaker caps
• 3 silver freeze wire shelves
• 6” high adjustable stainless steel legs
• 8’ cord and plug
• R-290 refrigerant
• Hot gas condensate evaporator
• Adaptive defrost
• Freezer capable of maintaining product temperature -10°F to 0°F
Options
• Stainless steel case back
• Stainless steel kick plate
• Exterior door laminate
• Door swing orientation (at time of order)
• Additional shelves
• Tray slides (type A & A/C)
• 3”, 6” casters or 6” seismic legs
• Correctional package
NOTE: 12” top clearance is required.
NOTE: This unit utilizes variable speed compressor technology. The compressor can experience nuisance tripping on Class A GFCI outlets which have a trip limit of 4 mA to 6 mA. To avoid this issue in a location that requires GFCI circuit protection, Delfield recommends using either an Eaton SGF20 or HUBBELL Model Number GFRST83W 20A Heavy Duty Hospital Grade Self-Test GFCI Receptacle.
UPC: 62828801700008473
Specifications
| Manufacturing origin | United States |
|---|---|
| Style | Pass Thru |
| Brand | Delfield |
| MFR # | DSLFPT2-SH |
| Previous Model | GAFPT2P-SH |
| Voltage | 115V |
| Hertz | 60 |
| Phase | 1 |
| Capacity | 48.33 cu. ft. |
| Door Style | Solid Door |
| Door Type | Swing / Half, Pass-thru |
| Horsepower | 3/4 |
| compressor location | Self-contained, top mounted |
| Number of Shelves | 6 |
| Number of Doors | 4 |
| Refrigerant | R290 |
| Temperature Range | -10°F to 0°F |
| Casters | No, can be purchased separately |
| NEMA | 5-20P |
| Amps | 13.9 |
| Construction | Stainless Steel |
| Exterior Material | Stainless Steel |
| Interior Lighting | LED Lighting |
| Total Width | 51.9" |
| Total Height | 83.9" |
| Total Depth | 40.7" |
| Net Weight | appx. 620 lbs |
| Warranty | Three year parts and labor warranty and additional 4 year compressor parts provided by Delfield |
