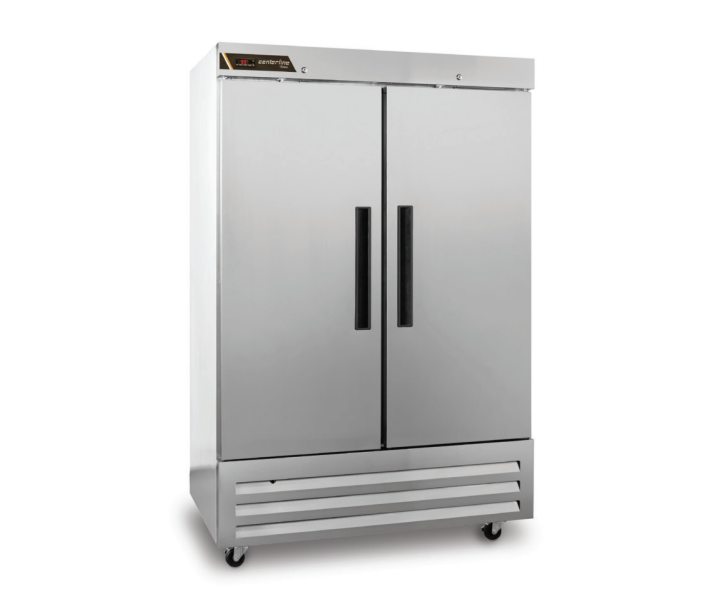

Centerline CLBM-49R-FS-LR 54" Reach-In Two Solid Door Refrigerator with Left/Right Hinged Doors
Centerline CLBM-49R-FS-LR 54" Reach-In Two Solid Door Refrigerator with Left/Right Hinged Doors
- Stainless Steel Door(s) & Louver
- Anodized Aluminum Sides & Interior
- Positive Seal Self-Closing Door with Stay Open Feature at 110°
- LED Display Control for Accuracy and Easy Monitoring
- Capillary Tube Metering Device
- Three (3) Adjustable, Heavy Duty Epoxy Coated Shelves Per Section
- Field Reversible Door(s)
Certifications


Resources and Download
54" Reach-In Two Solid Door Refrigerator with Left/Right-Hinged Doors - CLBM-49R-FS-LR
Exterior & Interior Construction, Hardware, Insulation
Cabinet louver assembly and door(s) are constructed of stainless steel. Cabinet sides (including returns), front, interior, and door liners are constructed of anodized aluminum. The exterior cabinet top, back, and bottom are constructed of galvanized steel. A set of four (4) 4" high casters are included. Doors are equipped with a gasket protecting retainer and removable plug cylinder locks. Both the cabinet and door(s) are insulated with an average of 2-3/8" thick high density, non-CFC, foamed in place polyurethane insulation.
Refrigeration System
A bottom-mounted, self-contained, balanced refrigeration system using environmentally friendly, non-flammable R-450A refrigerant is conveniently located behind the one-piece louver assembly. It features an easy-to-clean front-facing condenser, capillary tube metering device, and an air-cooled hermetic compressor. A 9’ cord and plug are provided. The standard operating temperature is 36°F to 41°F.
Electronic Digital Control
The easy-to-use electronic digital control is supplied standard. It includes a 3-Digit LED display, and a Fahrenheit or Celsius temperature scale display capability.
Interior
Standard interior arrangements include three (3) epoxy coated wire shelves per section, mounted on pins. Recommended load limit per shelf should not exceed 150 lbs.
Features:
- Stainless Steel Door(s) & Louver
- Anodized Aluminum Sides & Interior
- Positive Seal Self-Closing Door with Stay Open Feature at 110°
- LED Display Control for Accuracy and Easy Monitoring
- Capillary Tube Metering Device
- Three (3) Adjustable, Heavy Duty Epoxy Coated Shelves Per Section
- Field Reversible Door(s)
- Set of Four (4) 4" High Casters With Locks Standard on Front Casters
- Gasket-Protecting Retainer
- Bottom-Mounted Refrigeration System
- High-Density, Non-CFC Foamed in Place Polyurethane Insulation
- Easily Accessible Condenser Coil for Cleaning
- Ergonomically Friendly Lower Shelf
- Storage on Top of Cabinet
Specifications
Brand | Centerline |
---|---|
Product Type | Reach-In Refrigerator |
MFR # | CLBM-49R-FS-LR |
Voltage | 115V |
Hertz | 60Hz |
Phase | 1Ph |
Capacity | 43.88 cu. ft. |
Door Style | Solid Door |
Door Type | Swing door |
Horsepower | 1/2 HP |
compressor location | Bottom Mounted |
Number of Shelves | 6 Shelves |
Number of Doors | 2 |
Refrigerant | R-450A |
Temperature Range | 36°F to 41°F |
Casters | 4 x 4" Casters |
NEMA | 5 - 15P |
Amps | 6.7 AMPS |
Construction | Stainless Steel / Aluminum Construction |
Exterior Material | Stainless Steel Doors and Anodized Aluminum Sides |
Interior Material | Anodized Aluminum Interior |
Total Width | 53.75 |
Total Height | 78 |
Total Depth | 33.5 |
Warranty | 6-Year Parts and Labor; 7-Year Compressor Warranty |
