Biro Meat Grinder 3 HP 50/60 hz
Biro Meat Grinder 3 HP 50/60 hz
Price Match Guarantee
Zanduco Restaurant Equipment & Supplies is committed to providing you with the best prices everyday. That is why we are proud to offer a Price Match Guarantee on qualifying products. If you find the same product on another site, we will try our best to match or offer you an even better price.
To inquire about Price Match Guarantee, just send us a message through chat, give us a call at 1-855-926-3826 or email us at sales@zanduco.com. Please be prepared to provide us with the URL of the product page with the lower price.
We do not price match private sales, auctions, stock liquidations, coupon offers, or stores that are not located in the United States or Canada. Additional restrictions may apply.
- 85 lbs / 38.5 kg capacity feed pan
- 3 HP drive motor
- Reliable efficiency, durability and low maintenance
Resources and Download
MODEL 346SS MANUAL FEED GRINDER

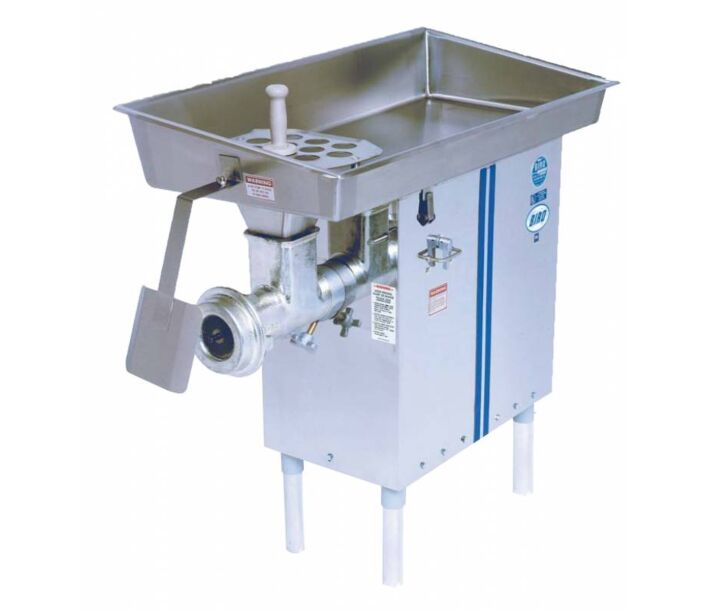

The Biro 346SS is a compact stainless steel manual feed grinder that is well suited to today’s smaller meat rooms. Its 3 HP motor has plenty of power, and the size 32 head and square throat bowl ensure plenty of productivity. The single reduction roller chain drive ensures maximum power, and the tapered bearings mean trouble-free operation. The bowl assembly and feed tray are easily removed without tools, so cleanup is a snap. Efficiency, durability, and low, low maintenance all help make the Biro 346SS Meat Grinder a reliable workhorse you can depend on.
SPECIFICATIONS
MODEL
Model 346SS
MOTORS
| HP | TYPE | KW | VOLTS | AMPS | HERTZ | PHASE | CODE |
|---|---|---|---|---|---|---|---|
| 3 | ODP | 2.2 | 208-230/460 | 15-14/7 | 60 | 3 | STD |
| 3 | ODP | 2.2 | 208-220 | 18-17 | 60 | 1 | EC |
| 3 | ODP | 2.2 | 200 | 11.5 | 60 | 3 | EC |
| 3 | ODP | 2.2 | 575 | 3.7 | 60 | 3 | EC |
| 3 | ODP | 2.2 | 220/380 | 12.1/7 | 50 | 3 | EC |
| 3 | ODP | 2.2 | 220-230 | 19-18 | 50 | 1 | EC |
ODP=Open Drip Pan STD=Standard NC=No Charge EC=Extra Charge
CONSTRUCTION
Stainless steel feed pan and polished stainless steel case, cast iron hot tin-dipped bowl assembly, size 32.
SWITCH
Watertight enclosure, magnetic, thermal overload type, automatic resetting, switch controlled by a rocker rod arrangement projecting outside both sides of machine activated by switch rod handle.
POWER CORD
Available option at extra cost.
CAPACITY FEED PAN
Approximately 85 lbs. (38.5 kg).
GRINDING CAPACITY
1st grind 3/8” (9.5 mm) plate output is 45 lbs. (20 kg) per minute.
2nd grind 1/8” (3.2 mm) plate output is 29 lbs. (13 kg) per minute.
NOTE: Outputs are approximate depending on product temperature, fat-lean ratio, feed speed, texture, sharpness of knife and plate.
DRIVE SYSTEM
Pre-lubricated chain drive.
SAFETY
Magnetic safety interlock so machine will not operate when feed pan with welded bowl guard is removed.
STANDARD FEATURES
11” (280 mm) aluminum legs • splash guard • stomper • ring wrench • welded bowl guard on feed pan • operating and safety manual.
OPTIONS (EC)
Size 32 knife and plate • longer legs • power cord • 220/380-50-3 • 220-50-1 • stainless steel bowl assembly (enterprise or unger) • solid stomper • right hand feed pan.
CERTIFICATION
U.S.D.A., N.S.F., U.L. – 3 phase.
WEIGHT
1 phase uncrated: 344 lbs. (156 kg.) approximate.
1 phase crated: 432 lbs (196 kg.) approximate.
3 phase uncrated: 345 lbs. (157 kg.) approximate.
3 phase crated: 435 lbs (198 kg.) approximate.
DIMENSIONS CRATED
L = 30” (762 mm), W = 59” (1499 mm), H = 41” (1041 mm).
UPC: 690207397050
Specifications
| Total Length | 59 |
|---|---|
| Total Width | 30 |
| Total Height | 41 |
| Brand | Biro |
| MFR # | 39705 |
