Biro AFMG 48 Auto Feed Mixer/Grinder 7.5Hp
Biro AFMG 48 Auto Feed Mixer/Grinder 7.5Hp
Price Match Guarantee
Zanduco Restaurant Equipment & Supplies is committed to providing you with the best prices everyday. That is why we are proud to offer a Price Match Guarantee on qualifying products. If you find the same product on another site, we will try our best to match or offer you an even better price.
To inquire about Price Match Guarantee, just send us a message through chat, give us a call at 1-855-926-3826 or email us at sales@zanduco.com. Please be prepared to provide us with the URL of the product page with the lower price.
We do not price match private sales, auctions, stock liquidations, coupon offers, or stores that are not located in the United States or Canada. Additional restrictions may apply.
- 200 lbs / 91 kg hopper
- 7.5 HP drive motor
- High productivity that requires low maintenance
Comes Standard 208V 60Hz Three Phase
Special Order Item Only Available in Canada.
Resources and Download
MODEL AFMG-48 MIXER GRINDER.

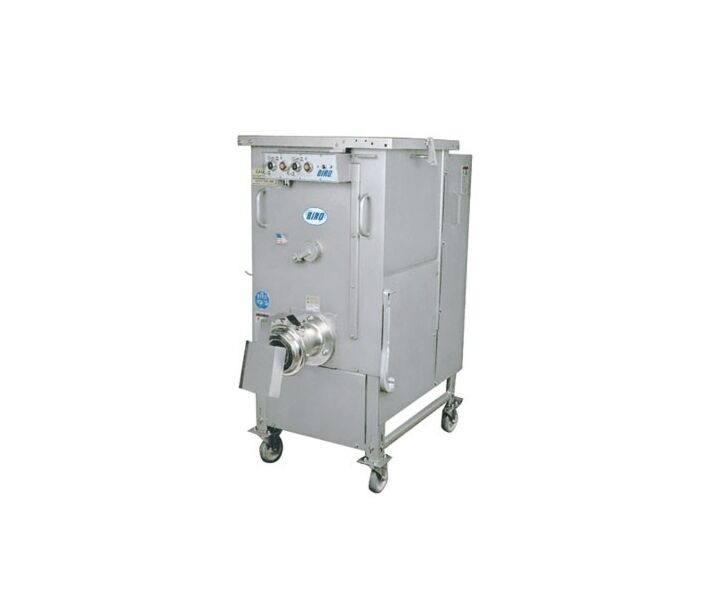

The BIRO Model AFMG-48 is a workhorse mixer grinder for the medium volume meat operation. Its 7.5 hp (5.6 kw) auger motor and size 32 head can give an output of over 65 pounds (30 kg) per minute for the productivity you need. Separate auger and mixer motors mean there is no clutch to wear out or break, which means much lower maintenance costs and higher profits. The single reduction heavy duty roller chain auger drive with tapered roller bearings is the most efficient drive system, so you get maximum power to the auger. The heavy duty stainless steel 200 pound (91 kg) hopper, frame, and legs can stand up to years of daily washdown and still resist corrosion, so your mixer grinder lasts longer and you get a better return on your investment. Power, durability, and low maintenance.
SPECIFICATIONS
MODEL
AFMG-48-II AUTO-FEED MIXER-GRINDER
CONSTRUCTION
HEAVY DUTY STAINLESS STEEL HOPPER, LID, PADDLE, FRAME AND LEGS. CAST IRON HOT TIN DIPPED BOWL, RING AND AUGER (USES SIZE 32 KNIFE/PLATE.)
MOTORS
| MOTOR | HP | KW | TYPE | VOLTS | AMPS | CYCLE | PH | CODE |
|---|---|---|---|---|---|---|---|---|
| AUGER | 7.5 | 5.6 | TEFC | 208-230/460 | 24-21/11 | 60 | 3 | STD |
| MIXER | 1.75 | 1.3 | TEFC | 208-230/460 | 5.7-5.2/2.6 | 60 | 3 | STD |
| AUGER | 10 | 7.5 | TEFC | 208-230/460 | 31-28/14 | 60 | 3 | EC |
| AUGER | 7.5 | 5.6 | TEFC | 575 | 8.8 | 60 | 3 | EC |
| MIXER | 1.75 | 1.3 | TEFC | 575 | 2.4 | 60 | 3 | EC |
| AUGER | 10 | 7.5 | TEFC | 575 | 11 | 60 | 3 | EC |
| AUGER | 7.5 | 5.6 | TEFC | 220/380-415 | 22/12.7-11.6 | 50 | 3 | STD |
| MIXER | 1.75 | 1.3 | TEFC | 220/380-415 | 5.9/3.4-3.1 | 50 | 3 | STD |
| AUGER | 10 | 7.5 | TEFC | 220/380-415 | 28/16.2-14 | 50 | 3 | EC |
TEFC= TOTALLY ENCLOSED FAN COOLED STD=STANDARD EC=EXTRA COST NC=NO CHARGE
SWITCH
WATERTIGHT MAGNETIC WITH THERMAL OVERLOAD AND UNDER VOLTAGE PROTECTION.
POWER CORD
12’ #10 GA- 4 STRAND CORD WITH PLUG 7.5 HP, U.S., 12’ #10 GA – 4 STRAND CORD NO PLUG 7.5 HP INTERNATIONAL(50 HZ/575V) 12’ #8 GA – 4 STRAND CORD WITH PLUG 10 HP U.S., 12’ #8 GA – 4 STRAND CORD NO PLUG 10 HP INTERNATIONAL(50 HZ/575V).
HOPPER CAPACITY
HOPPER 200 LBS. (91 KG).
GRINDING CAPACITY
OUTPUT – UP TO 65 LBS. (30 KG) PER MINUTE.
DRIVE SYSTEM
AUGER: SINGLE REDUCTION (35 PITCH – 4 ROW) ROLLER CHAIN DRIVE WITH TAPERED ROLLER BEARINGS. MIXER: HEAVY DUTY MIXER MOTOR INTERFACE DRIVE SYSTEM.
SAFETY
MAGNETIC SAFETY INTERLOCK ON HOPPER LID.
STANDARD FEATURES
STAINLESS STEEL 2ND GRIND PADDLE WITH CENTER ARMS, 5” DIA. TOTAL LOCK SWIVEL CASTERS WITH ANTI-MICROBIAL WHEELS, SPURT GUARD, EXTRA ROD FOR FRONT, LEFT OR RIGHT SIDE OPENING LID, POWER CORD (SEE ABOVE), RING WRENCH, BOWL NUT WRENCH, TWO SHEAR PINS WITH SCREWS, RECEPTACLE FOR ELECTRIC FOOTSWITCH ,OPERATING AND SAFETY MANUAL.
OPTIONS (EC)
SIZE 32 PLATE AND KNIFE, SINGLE-REDUCTION “EAGLE” SELF-CENTERING, NO STRETCH, NO LUBRICATION, POLY BELT AUGER DRIVE, ELECTRICAL OR PNEUMATIC FOOTSWITCH, ACCESSORY CLEANING AND STORAGE RACK, EXTRA LONG STAINLESS STEEL LEGS (33”(838 MM) TO 42”(1067 MM)) FROM FLOOR TO BOWL CENTER, SIZE 52 LEFT HAND 35° HOPPER FEED INLET, CONNECTIONS FOR TANDEM OPERATIONS, 10 HP (7.5 KW) AUGER MOTOR, STAINLESS STEEL BOWL, RING AND AUGER (ENTERPRISE OR UNGER STYLE).
OPTIONS (NC)
SIZE 52 RIGHT HAND 35° HOPPER FEED INLET (SEE DRAWING).
CERTIFICATION
U.S.D.A., U.L., N.S.F., C.S.A. ON 7.5 208/230/460-60-3
WEIGHT
UNCRATED: 683 LBS. (310 KG) APPROXIMATE. CARTON PACKED: 789 LBS. (358 KG) APPROXIMATE. WOOD CRATED: 887 LBS. (402 KG) APPROXIMATE.
DIMENSIONS CRATED
L=50” (1270MM), W=36” (914.4MM), H=66” (1676MM)
UPC: 690207396473
Specifications
| Total Length | 35 |
|---|---|
| Total Width | 52 |
| Total Height | 64 |
| Brand | Biro |
| MFR # | AFMG-48 7.5HP |
