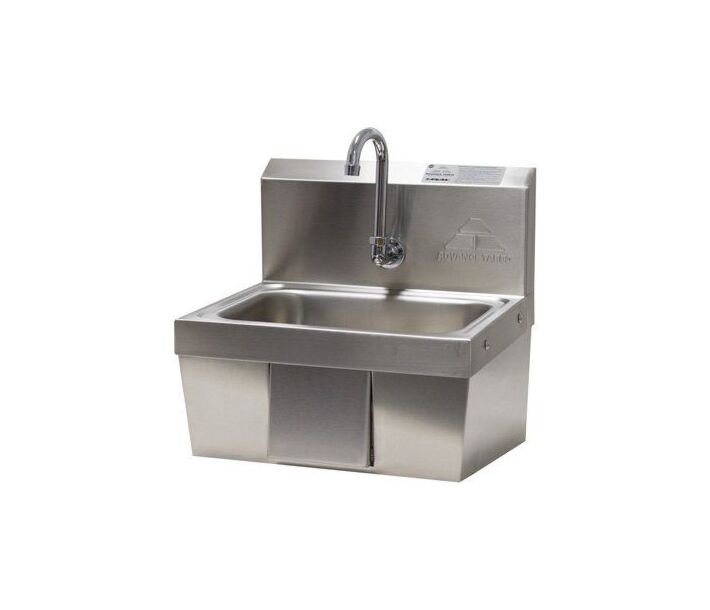

Advance Tabco 7-PS-44 Wall Mount Hand Sink with Hands-Free Push Actuated Faucet
SKU
16000-494
Advance Tabco 7-PS-44 Wall Mount Hand Sink with Hands-Free Push Actuated Faucet
SKU
16000-494
Have Questions? Talk to our experts.
Product Files
Product Overview
Hand Sink, wall mounted, 14" wide x 10" front-to-back x 5" deep bowl, 18 gauge 304 stainless steel, splash mounted gooseneck faucet, knee operated push panel, basket drain, wall bracket, NSF, cCSAus
Bowl Size: 10" x 14" Overall: 17-1/4" x 15-1/4" x 12-3/4"
Weight: 30 Gauge: 18 Cubes: 2
FEATURES:
- One piece Deep Drawn sink bowl design.
- Sink bowl is 10” x 14” x 5” deep.
- Stainless steel Apron bolts to sink.
- Apron conceals plumbing on all three sides.
- Faucet activated by push of front panel.
- Hot water adjustment valve accessed by raising front of panel.
- All sink bowls have a large liberal radii with a minimum dimension of 2” and are rectangular in design for increased capacity.
- “Hands Free” splash mounted gooseneck faucet furnished with aerator.
- Stainless steel basket drain 1-1/2” IPS.
CONSTRUCTION:
- All TIG welded.
- Welded areas blended to match adjacent surfaces and to a satin finish.
- Die formed Countertop Edge with a 3/8”
- No-Drip offset.
- One sheet of stainless steel - No Seams.
MATERIAL:
- Heavy gauge type 304 series stainless steel.
- Wall mounting bracket is galvanized steel and of offset design.
- All fittings are brass / chrome plated unless otherwise indicated.
MECHANICAL:
- Spout supply is 1/2” IPS male thread.
- Faucet Flow Rate: 1.0 GPM/3.8 LPM aerator.
- 60 PSI.
- Valve is barrel type and is activated by pushing the front of panel. (Contractor on site must connect faucet to knee operated valves).
Specifications
Advance Tabco 7-PS-44 Wall Mount Hand Sink with Hands-Free Push Actuated Faucet USA
| MFR # | 7-PS-44 |
|---|---|
| Brand | Advance Tabco |
| Total Depth | 15.25" |
| Total Width | 17.25" |
| Total Height | 17.3" |
| Backsplash Height | 8.25" |
| Bowl Depth | 10" |
| Bowl Height | 5" |
| Bowl Width | 14" |
| Sidesplash | Without Sidesplash |
| Faucet Included | Yes |
| Gauge | Heavy |
| Stainless Steel Type | 304 |
| Material | Stainless Steel |
| Number of Bowls | 1 |
| Number of Drainboards | 0 |
| Product Type | Wall Mount Hand Sink |
