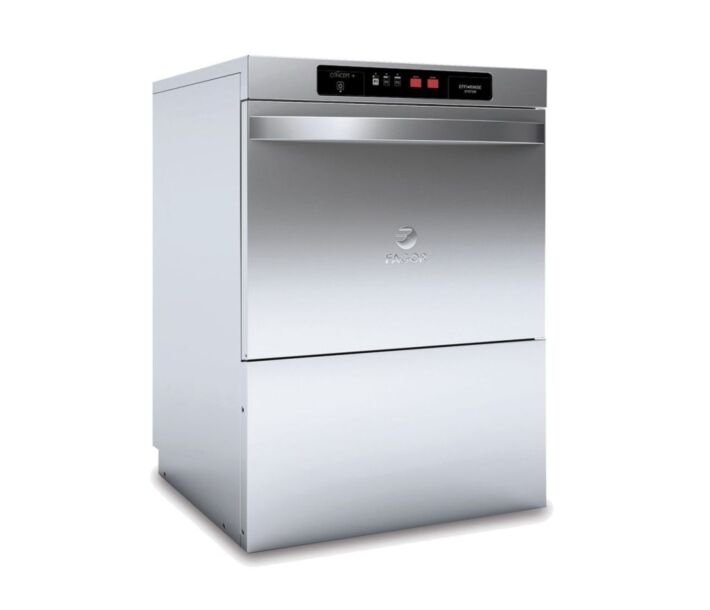

Built to withstand the hard knocks of commercial use, the Fagor CO‑502W EVO Concept pairs toughness with thoughtful design. Its double-layered stainless steel body and door absorb noise and safeguard against wear—ensuring it stays reliable and quiet, even after extended use.

Inside, the Effi Wash system delivers concentrated mechanical cleaning using optimal water flow to lock in high sanitation temperatures. The Smart Soft‑Start adds a layer of care to delicate glassware by gently ramping up pump power. The built-in booster heater means every rinse meets the critical 180 °F mark before the cycle can move forward—no shortcuts on cleanliness.

Equipped with a clear, easy-to-read digital control panel that resists water damage, this machine is as intuitive as it is tough. A roomy 15¼″ wash chamber welcomes large serving pieces, glassware, and tall dishes. Plus, with a flat rack, peg rack, and cutlery container included, you're ready to wash any combination of items from day one.

Technical Specifications

• Wash cycles (seconds): 90-120-180
• Productivity (assume 25 dishes and 36 glasses per rack): 30 racks / hour; 750 dishes / hour; 1080 glasses / hour;
• Standard rack size: 19 3/4" x 19 3/4"
• Net weight: 132 lbs
• Useful loading height (clearance): 15 1/4"
• Capacity (gallons): 5.25 Gal for wash tank; 1.85 Gal for boiler; 0.63 Gal water consumption per cycle
• Wash pump motor: 3/4 HP
• Power: Tank heating element 2.8kW; Boiler/booster 2.8 kW; Wash Pump 0.6kW; total 3.5 kW
• Minimum Working Temperature: 150ºF washing; 180ºF rinsing
• AMP for 60H: 208V (15A); 220V (16A); 240V (17A)
• Water protection Rating: IPx4
• Noise Level: <65 dB

Accessories

• Racks for dishes, glasses, and trays
• Cutlery containers and grids
• 6" & 16" high base stands
• Drain tempering Valve

Construction

• New double skin stainless steel body structure with stamped design (wash tank, rack guides, control panel..), made to resist strong usage.
• AISI-304 Stainless steel double wash/rinsing arms and tray filters.
• Higher clearance: 15 1/4”.
• Rock counterbalanced door. Double spring and stainless steel hinge system tested to resist the strongest usage. Safe 3 step open system: remove steam (1), check rack (2), and remove/place rack (3).
• IPX4 - Stronger protection against water hose cleaning and external humidity.
• Multi-connection box: Conveniently located electrical box for easy access that improves maintenance and allows for multitension.
