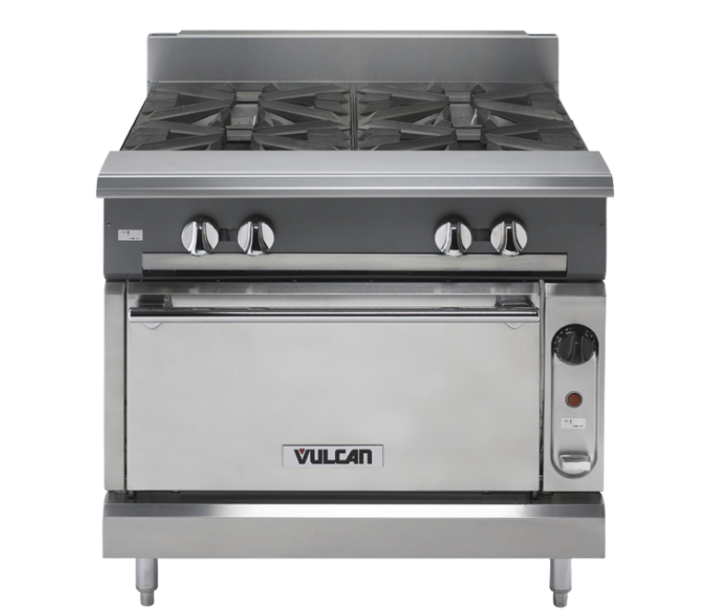

Vulcan V4B36C V Series 36" 4 Burner Gas Range with Convection Oven and 172,000 BTU - Natural Gas/Liquid Propane
Vulcan V4B36C V Series 36" 4 Burner Gas Range with Convection Oven and 172,000 BTU - Natural Gas/Liquid Propane
As low as CAD $775.46/mo. with EconoLease. Learn more
- 172,000 BTU total output – Natural Gas or Liquid Propane
- Four high-output burners with individual controls
- Stainless steel construction for durability and easy cleaning
- Convection oven with porcelain interior, 175°F–550°F range
- Two oven racks with multiple positions
- Heavy-duty cast grates & extra-deep crumb tray
- 6" adjustable legs for stability
Certifications



Resources and Download
V4B36C V Series 36" 4 Burner Gas Range with Convection Oven and 172,000 BTU - Natural Gas/Liquid Propane
The Vulcan V4B36C V Series 36" 4 Burner Gas Range with Convection Oven delivers 172,000 BTU of high-performance cooking power using natural gas or liquid propane. Ideal for busy commercial kitchens, it features four 35,000 BTU/hr. open burners with individual pilots and controls, providing precise heat for a variety of cooking applications.
Built with a stainless steel front, plate ledge, top ledge with pull-out condiment rails, sides, base, and stub back, this heavy-duty range ensures durability and easy cleaning. It's 32,000 BTU/hr. A convection oven features a porcelain interior, an adjustable thermostat ranging from 175°F to 550°F, and two oven racks with three positions for flexible baking and roasting.
Additional features such as heavy-duty cast-iron grates, an extra-deep crumb tray, and 6" adjustable stainless steel legs make the V4B36C a reliable, versatile, and efficient four-burner gas range with convection oven, perfect for restaurants, hotels, and institutional kitchens.
FEATURES:
-
Vulcan V4B36C V Series 36" 4 Burner Gas Range with Convection Oven
-
172,000 BTU total output – Natural Gas or Liquid Propane
-
Four 35,000 BTU/hr. burners with individual pilots and controls
-
Stainless steel construction: front, plate ledge, top ledge with pull-out condiment rails, sides, base, and stub back
-
Convection oven: 32,000 BTU/hr. with porcelain interior, 175°F–550°F temperature range
-
Includes two oven racks with three rack positions for flexible cooking
-
Heavy-duty cast-iron grates with a lift-off design for easy cleaning
-
Extra-deep stainless steel crumb tray for quick maintenance
-
6" adjustable stainless steel legs for stability
-
Ideal for restaurants, hotels, and institutional kitchens needing a reliable and versatile range
Specifications
Manufacturing origin | United States |
---|---|
MFR # | V4B36C |
NEMA | NEMA 5-15P |
Brand | Vulcan |
Total Height | 40.5" |
Total Width | 36" |
Total Depth | 41 7/8" |
BTU per Hour | 172 000 BTU | Burner: 33 000 BTU | Oven: 32 000 BTU |
Top Configuration | Open Burners |
Temperature Range | 175°F – 550°F |
Burner Style | Natural/Propane |
Number of Burners | 4 Burners |
Gas Inlet Size | 1 1/4" |
Base Style | Standard Oven |
Exterior Material | Stainless Steel |
Warranty | 1 Year Limited Parts and Labor Warranty |
Product Type | Gas Range with Convection Oven |
