- 45-50 lb oil capacity
- Stainless steel constructed fry tank
- 200° - 400°F (93°-204°C) temperature range
- Millivolt system requires no electric hook-up
- Twin fry baskets with plastic coated handles
- High-limit shut-off protector shuts off gas combination valve and standing pilot
- 120,000 BTU
- Available in Liquid Propane and Natural Gas



Talk to our experts
1-855-926-3826
Email

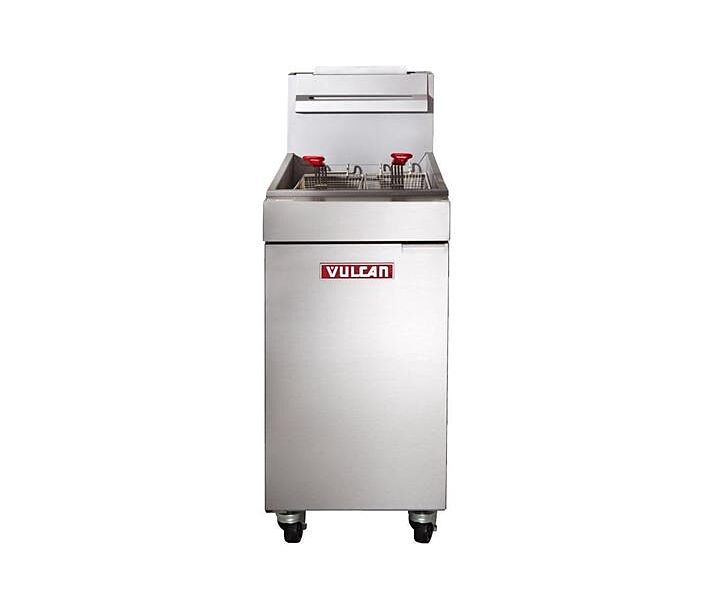

Vulcan LG400 45-50 lb Gas Floor Fryer - 120,000 BTU
The LG400 commercial fryer requires fewer BTUs resulting in lower operating costs for your restaurant.
This freestanding model fryer is available in 45-50 lb oil capacity with 120,000 BTU. It includes twin fry baskets with plastic coated handles and drain extension. This gas fryer is available in Liquid Propane and Natural Gas fuel options and has a large "V" shaped cold zone and 1 1/4" port ball valve that helps preserve oil used in the fryer by catching leftover food particles and cooling them, which prevents them from burning and tainting the oil. A door snap action millivolt thermostat control allows the temperature to be adjusted from 200° to 400°F. This helps in avoiding the requirement of an electric hook-up.
The LG400 is constructed with a stainless steel front top and reinforced door. The stainless steel fry tank has a five five-year limited tank warranty. To ensure the door is closed properly an earth magnet has been used. A door liner has also been added for added stability.
STANDARD FEATURES
- Stainless steel fry tank with 45-50 lb capacity
- Large cold zone area.
- 11⁄4" full port ball type drain valve.
- Stainless steel reinforced door.
- G90 high-grade galvanized non-corrosive finish sides and back.
- Door liner for added stability.
- Set of four nickel-plated adjustable legs.
- Twin fry baskets with plastic coated handles.
- 120,000 BTU’s/hr. input.
- Behind the door snap, action millivolt thermostat control adjusts from 200° to 400°F with standing pilot.
- Millivolt System - Requires no electric hook-up.
- Hi-limit shut-off protector shuts off gas combination valve and standing pilot.
- Built-in flue deflector.
- Nickel-plated tube rack.
- Earth magnet to secure closed door.
- Easily removable stainless steel basket hanger for cleaning.
- Vulcan-Hart (Vulcan) warrants the LG Series gas fryer to be free of defects in materials and workmanship for a period of 1 year from the date of original installation.
- The stainless steel fry tank has a five (5) year limited tank warranty. If during the first year only, the tank is found to have a leak and is verified by an authorized service agency, the entire LG Series fryer will be replaced.
Specification
More Options | Fuel Type |
---|---|
MFR # | LG400 |
Brands | Vulcan |
Height In Inches | 34.625 |
Width in Inches | 15.5 |
Depth In Inches | 29.75 |
BTU per Hour | 120,000 |
Temperature Range | 200 to 400 degree F |
Number of Fryer Baskets | 2 |
Gas Inlet Size | 1/2" and 3/4" |
Control Type | Thermostatic |
Capacity | 45 to 50 lbs of oil |
Product Type | Gas Floor Fryer |
