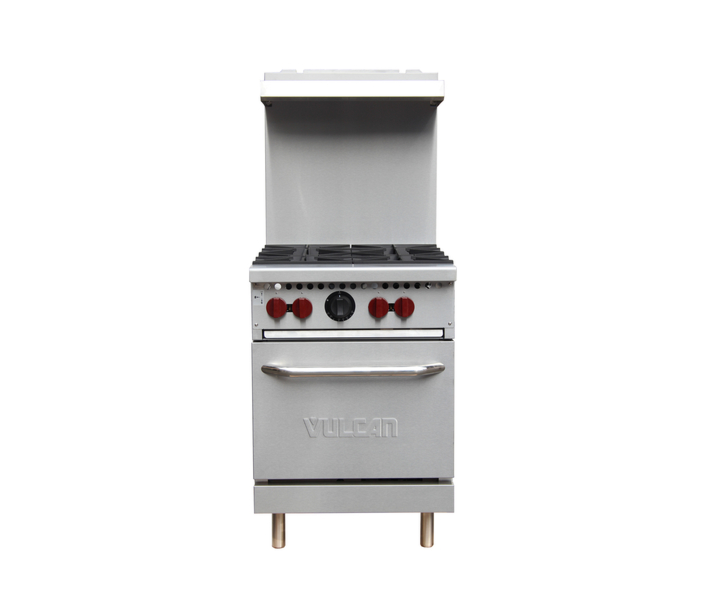

Vulcan SX24-4B 24" 4 Burner Gas Range with Standard Oven - 143,000 BTU
Vulcan SX24-4B 24" 4 Burner Gas Range with Standard Oven - 143,000 BTU
As low as CAD $78.77/mo. with EconoLease. Learn more
- Stainless steel front, sides, backriser, lift-off high shelf
- 6" stainless steel adjustable legs
- 28,000 BTU/hr open-top burners with lift-off heads
- Shrouded flash tube pilot system (one pilot per two burners)
- 12" x 12" cast top grates with aeration bowls
Certifications

Resources and Download
Vulcan SX24-4B 24" 4 Burner Gas Range with Standard Oven - 143,000 BTU
The Vulcan 24" 4 Burner Gas Range with Standard Oven, identified by the model number SX24-4B, is a high-performance appliance designed for light-duty commercial use. Crafted with a durable stainless steel front, sides, backriser, and bullnose, this SX series range exudes functionality and resilience. The 143,000 BTU total input is distributed across four 28,000 BTU/hr. cast top burners, each equipped with lift-off burner heads for easy cleaning. The shrouded flash tube pilot system, featuring one pilot per two burners, ensures efficient ignition.
The 12" x 12" cast top grates with aeration bowls contribute to optimal heat distribution, supported by heavy-duty top grates and burner heads. The 30,000 BTU/hr. standard oven, with a spacious cavity measuring 20.6"W x 25.5"D x 13.7"H, offers versatility with a thermostat adjustable from 250° to 500°F. The oven includes one rack with four positions, enhancing cooking flexibility. With features like a compression spring door hinge system, 6" stainless steel adjustable legs, and a 3⁄4" rear gas connection with a gas pressure regulator, the Vulcan 24" Gas Range guarantees durability and ease of use.
Additionally, the appliance comes with one-year limited parts and labor warranty, underscoring its reliability and quality assurance.
FEATURES:
- Stainless steel construction on front, sides, backriser, and lift-off high shelf
- 6" stainless steel adjustable legs for stability and flexibility
- 28,000 BTU/hr open-top burners with lift-off heads for easy cleaning
- Shrouded flash tube pilot system, with one pilot serving two burners, ensuring efficient ignition
- 12" x 12" cast top grates featuring aeration bowls for optimal heat distribution
- 30,000 BTU/hr standard oven cavity measuring 20.6"W x 25.5"D x 13.7"H
- Oven thermostat adjustable from 250° to 500°F for precise temperature control
- One oven rack with four rack positions for enhanced cooking versatility
- 3⁄4" rear gas connection and gas pressure regulator for safety and convenience
Specifications
MFR # | SX24-4B |
---|---|
Brand | Vulcan |
Total Height | 55 |
Total Width | 24 |
Total Depth | 32.5 |
BTU per Hour | Burner: 28,000 BTU | Oven: 30,000 BTU | Total: 142,000 BTU |
Temperature Range | 250° to 500°F |
Burner Style | Grates |
Number of Burners | 4 Burners |
Number of Ovens | 1 Oven |
Gas Inlet Size | 3/4 Inches |
Exterior Material | Stainless Steel |
