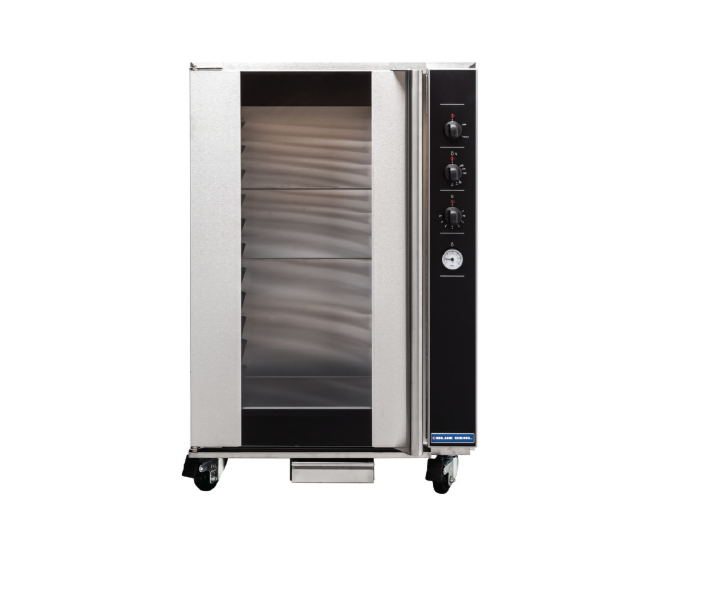

Turbofan P12M 29" Full Size Sheet Pan Manual Electric Proofer and Holding Cabinet
Turbofan P12M 29" Full Size Sheet Pan Manual Electric Proofer and Holding Cabinet
As low as CAD $260.15/mo. with EconoLease. Learn more
-
Dual Function Cabinet – Switchable between proofing and hot holding modes for operational flexibility.
-
12 Full Size Sheet Pan Capacity – Also supports 24 half-size pans with 2⅞″ tray spacing.
-
304 Stainless Steel Interior & Exterior – Durable, professional finish for easy cleaning and long life.
-
Mechanical Thermostat with Temperature Display – Ranges from 65°F to 185°F with analog thermometer.
-
Manual Humidity Control – Independent water tank with ON indicator light.
-
Auto Water Fill System – Optional cold water connection with integrated rear housing.
-
Low-Velocity Circulation Fan – Gently and evenly distributes heat and humidity throughout the cabinet.
-
Three-Mode Control Switch – Choose OFF, PROOF, or HOLD to match your prep cycle.
-
Full-Length Stainless Door with Glass Panel – Field reversible for flexible install options.
-
Heavy-Duty Castors – Includes four 3″ wheels (two front swivel with locks, two rigid rear).
Certifications


Resources and Download
Turbofan P12M | Full Size Manual Proofer and Holding Cabinet for High-Capacity Kitchens
The Turbofan P12M Proofer and Holding Cabinet is a powerful solution for commercial kitchens that need reliable proofing and heated holding in one durable unit. With the ability to handle up to 12 full-size sheet pans or 24 half-size pans, the P12M is built for volume-driven bakeries, restaurants, or commissaries where workflow efficiency is critical.
The cabinet features an easy-to-use mechanical thermostat with a wide temperature range of 65–185°F, along with a visual thermometer to monitor interior conditions. Operators can also manage humidity manually using the water tank system—complete with control panel indicator and optional rear-connected auto-fill for plumbed setups.
The interior chamber benefits from a low-velocity fan system that ensures even heat and humidity, preventing overproofing or dry holding. Cleaning is effortless, thanks to fully removable stainless steel side racks and an accessible, tool-free water tank. With dual halogen cabinet lighting, visibility is optimized for food inspection during service or prep.
Designed to match the footprint and workflow of Turbofan E32D5 and G32D5 ovens, the P12M can be paired below the oven or installed separately on a mobile line. Built on a stainless frame and mounted on durable 3″ castors, it delivers both strength and flexibility where you need it most.
Specifications
Brand | Turbofan |
---|---|
MFR # | P12M |
NEMA | 5-20P |
Wattage | 1.95kW |
Temperature Range | 65-185°F / 20-85°C |
Amps | 15.6 |
Phase | 1 Phase |
Hertz | 50/60 Hz |
Voltage | 110-120V |
Net Weight | 194 lbs / 88kg |
Total Depth | 31 7/8” / 810mm |
Total Width | 28 7/8” / 735mm |
Total Height | 44 1/2" / 1129mm including dia. 3” / 76mm castors |
