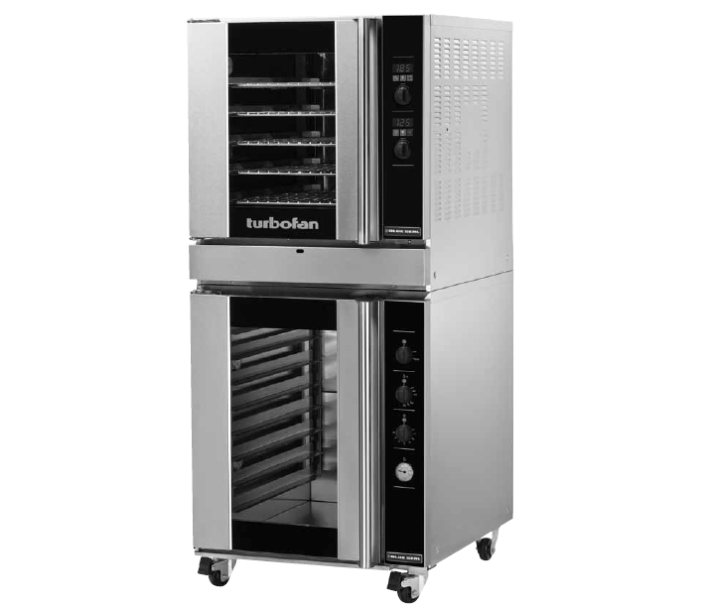

Turbofan G32D5/P8M Full Size Sheet Pan Digital/Gas Convection Oven Double Stacked on an 8-Tray Manual/Electric Proofer/Holding Cabinet
Turbofan G32D5/P8M Full Size Sheet Pan Digital/Gas Convection Oven Double Stacked on an 8-Tray Manual/Electric Proofer/Holding Cabinet
As low as CAD $477.43/mo. with EconoLease. Learn more
- 5 Full-Size Sheet Pan Capacity Oven – Ideal for high-volume commercial baking, with fast, even convection cooking.
- 8-Tray Manual/Electric Proofer/Holding Cabinet – Maintains perfect humidity and temperature for dough proofing or food holding.
- Precise Digital Control with Programmable Cooking – Features 20 programs, 3-stage cooking, moisture injection (5 levels), and optional core probe support.
- Heavy-Duty Stainless Construction – Durable design with porcelain enameled oven chamber and stainless steel cabinet throughout.
- Space-Saving Double-Stack Design – Full-size gas convection oven stacked on compact proofer cabinet for optimal footprint efficiency.
- Advanced Safety and Convenience Features – Safe-Touch doors, reversible hinges, LED displays, continuous oven seal, and removable fan baffle make it safe and easy to use and maintain.
- Versatile Use Modes – Oven supports manual and program modes; proofer supports holding or proofing with mechanical controls.
Certifications
Resources and Download
Turbofan G32D5/P8M | Stacked Full-Size Gas Oven and Electric Proofer for Maximum Performance
The Turbofan G32D5/P8M combines a powerful gas convection oven with a versatile manual/electric proofer to meet the demands of high-output baking environments. The oven offers fast and even convection baking with programmable controls and moisture injection for ultimate flexibility, while the bottom-mounted P8M proofer ensures your dough rises under ideal humidity and temperature.
Engineered for durability, ease of operation, and compact stacking, this solution is perfect for bakeries, pizzerias, and foodservice operations that demand efficiency and performance in one unified footprint.
|
Item |
Specification |
|---|---|
|
Gas Requirements – Oven (G32D5) |
33,000 Btu/hr / 35 MJ/hr burner rating Natural, Propane/Butane models Supplied with gas type conversion kit |
|
Gas Connection – Oven (G32D5) |
½” NPT male |
|
Electrical Requirements – Oven (G32D5) |
110–120V, 60Hz, 1-phase, 1A NEMA 5-15P cordset fitted |
|
Electrical Requirements – Proofer (P8M) |
110–120V, 50/60Hz, 1-phase, 1.45kW, 11.6A NEMA 5-15P cordset fitted |
|
Water Requirements |
Cold water connection: ¾” GHT male Inlet pressure: 20–80 psi Connection to oven optional |
|
External Dimensions |
Width: 28 7/8” / 735mm Height: 57 ¾” / 1715mm Depth: 31 7/8” / 810mm |
Specifications
| Brand | Turbofan |
|---|---|
| Country of Manufacture | New Zealand |
| MFR # | G32D5/P8M |
| NEMA | 5-15P |
| Amps | Oven (G32D5) 1A | Proofer (P8M) 11.6A |
| Phase | 1-phase |
| Hertz | 60Hz |
| Voltage | 110V-120V |
| Net Weight | Oven (G32D5) 250lbs / 113kg | Proofer (P8M) 171lbs / 77.5kg |
| Total Depth | 31 7/8” |810mm |
| Total Width | 28 7/8” |735mm |
| Total Height | 57 3/4" |1715mm |
