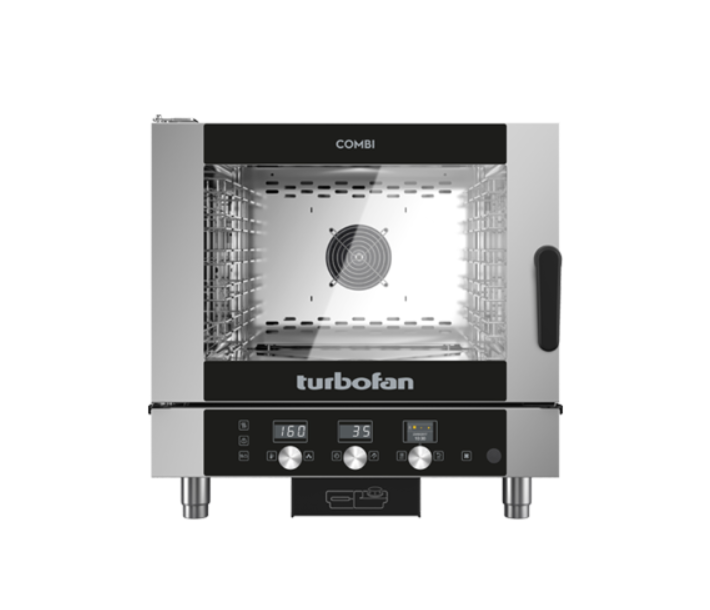

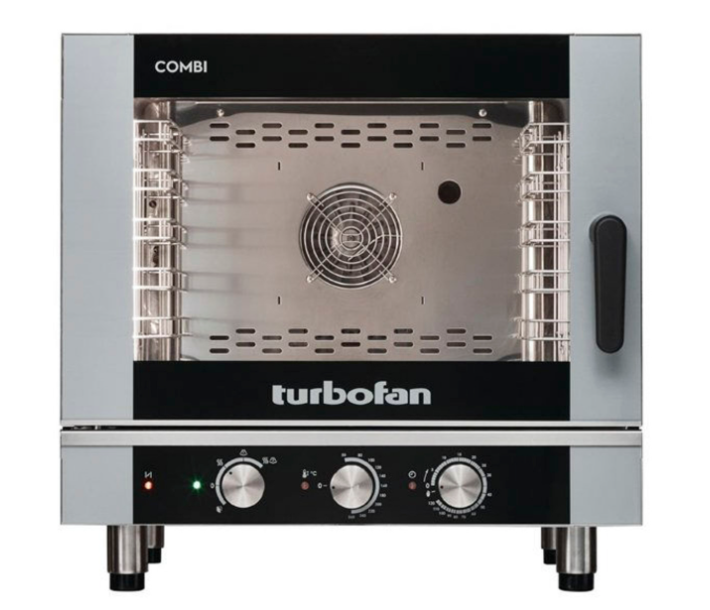

Turbofan EC40M5 Full Size 5-Tray Manual/Electric Combi Oven
Turbofan EC40M5 Full Size 5-Tray Manual/Electric Combi Oven
As low as CAD $429.69/mo. with EconoLease. Learn more
-
3 Cooking Modes (Convection / Steam / Combi) – Manually select the ideal method for roasting, baking, or steaming—all in one unit.
-
5-Tray Capacity (GN 1/1 or 600x400mm) – Handle large volumes with ease; ideal for commercial kitchens needing high throughput.
-
Direct Steam Injection System – Produces steam instantly for improved moisture retention and fast cook times.
-
Dual-Speed Reversing Fan – Ensures even heat distribution and consistent results across all trays.
-
Manual Control with Digital Display – Simple, intuitive settings for time, temperature, and cooking mode.
-
High-Performance Stainless Steel Build – Robust, professional-grade construction suited for continuous commercial use.
Resources and Download
Turbofan EC40M5 | Full-Size Manual Combi Oven with 3-in-1 Cooking Power
The Turbofan EC40M5 is a versatile 5-tray manual electric combi oven designed for chefs who need reliability and performance. With convection, steam, and combi modes available at the turn of a dial, this unit simplifies everything from baking pastries to steaming proteins.
Its direct steam injection, auto-reversing fan, and spacious cavity provide the precision and uniformity required for high-volume environments. Backed by a compact footprint and heavy-duty construction, it’s an ideal fit for bakeries, cafes, and institutional kitchens demanding daily productivity.
Canada Specifications
|
Dimensions |
W 32" x D 28-5/8" x H 31-3/8" |
|
Tray Capacity |
5 full size steam pan capacity |
|
Tray Spacing |
2-3/4" |
|
Power |
1-Phase and 3-Phase connection possible.Specify voltage when ordering. 208V, 60Hz, 3-phase, 7.5kW, 21A/ph, or 208V, 60Hz, 1-phase, 7.5kW, 36A 240V, 60Hz, 3-phase, 7.5kW, 18A/ph, or240V, 60Hz, 1-phase, 7.5kW, 32A |
|
Cordset Fitted |
No cordset supplied |
|
Fan/Heating |
Auto-reversing direction fan |
|
Controls |
|
|
Accessories |
SK40A oven stand |
Specifications
| Brand | Turbofan |
|---|---|
| MFR # | EC40M5 |
| Wattage | 7.5kW |
| Amps | 18/21/32/36 |
| Phase | 1-phase/3-phase |
| Hertz | 60 Hz |
| Voltage | 208V/240V |
| Net Weight | 163 lb. | 74 kg. |
| Total Depth | 28.63 |
| Total Width | 32 |
| Total Height | 31.38 |
