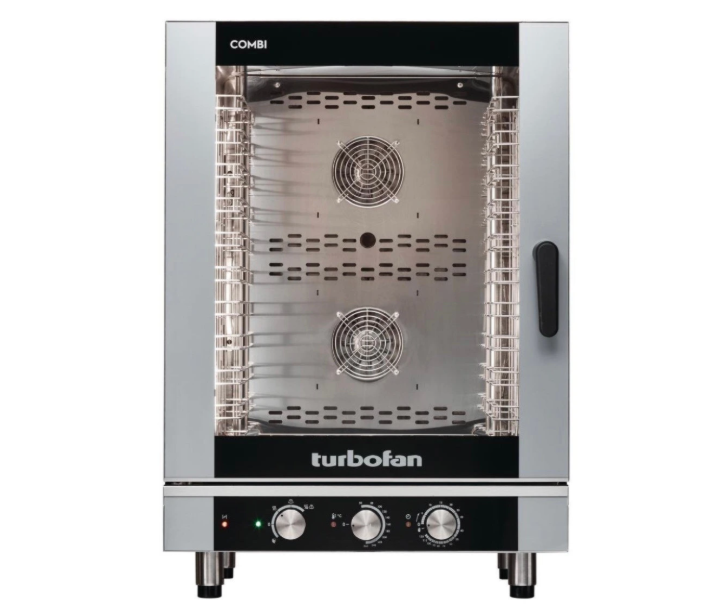

Turbofan EC40M10 Full Size 10-Tray Manual/Electric Combi Oven, 208V/240V, 60Hz
Turbofan EC40M10 Full Size 10-Tray Manual/Electric Combi Oven, 208V/240V, 60Hz
As low as CAD $636.83/mo. with EconoLease. Learn more
-
10 x Full-Size GN Tray Capacity – 70mm spacing supports high-volume cooking.
-
Direct Steam Injection System – Ideal for convection, steam, or combi mode applications.
-
Manual Controls with Mode Selector – Simple dials for time, temp, and cooking type.
-
Autoreverse Twin Fans – Promotes even airflow across all trays.
-
Built-In Hand Shower Included – Aids manual cleaning between batches.
-
Compact 812mm Width – Full functionality in a space-saving footprint.
Resources and Download
Turbofan EC40M10 Combi Oven | 10-Tray Manual Precision for Busy Kitchens
The Turbofan EC40M10 Manual/Electric Combi Oven combines heavy-duty performance with intuitive electro-mechanical controls for full control over cooking without a digital interface. Designed to hold 10 full-size steam pans or 600x400 trays, this unit delivers direct steam injection and selectable modes: Convection, Steam, and Combi—perfect for roasting, baking, steaming, or regenerating.
A powerful 15kW output and twin reversing fans ensure even, fast results, while the manual chamber venting and cool-down door-open mode give added control. Featuring an LED-lit chamber, double-glazed door, and smooth-edged cavity, the EC40M10 emphasizes both hygiene and cooking quality.
Designed to sit on a countertop or the SK40-10A stand, the EC40M10 is a smart, space-saving workhorse ideal for institutions, cafés, and catering kitchens.
Canada Specifications
|
Dimensions |
W 32" x D 28-5/8" x H 46" |
|
Tray Capacity |
10 full size steam pan capacity |
|
Tray Spacing |
2-3/4" |
|
Power |
208V, 60Hz, 3-phase, 15kW, 42A/ph or 240V, 60Hz, 3-phase, 15kW, 36A/ph |
|
Cordset Fitted |
No cordset supplied |
|
Fan/Heating |
2 auto-reversing direction fans |
|
Controls |
|
|
Accessories |
SK40-10A |
Specifications
| Brand | Turbofan |
|---|---|
| MFR # | EC40D10 |
| Wattage | 15kW |
| Product Type | Combi Oven |
| Temperature Range | 122-500°F / 50-260°C |
| Amps | 42/36 |
| Phase | 3 |
| Hertz | 60 Hz |
| Voltage | 208V/240V |
| Net Weight | 229 lbs. |
| Total Depth | 28.625 |
| Total Width | 32 |
| Total Height | 46 |
