TECNA Automatic Kneader Sheeter Double Tank CA 310 E-DV-120
TECNA Automatic Kneader Sheeter Double Tank CA 310 E-DV-120
- The perfect machine to produce cold laminated pasta sheets
- Can be wound on reels for further calibration, or can be used to feed ravioli, tortellini, cappelletti, tagliatelle, and more
- Production: 180 kg / hour
- Sheet width: 310 mm
- Sheet thickness: 5 - 6 mm
Resources and Download
Kneader Sheeter’s CA 310 E-DV - 120

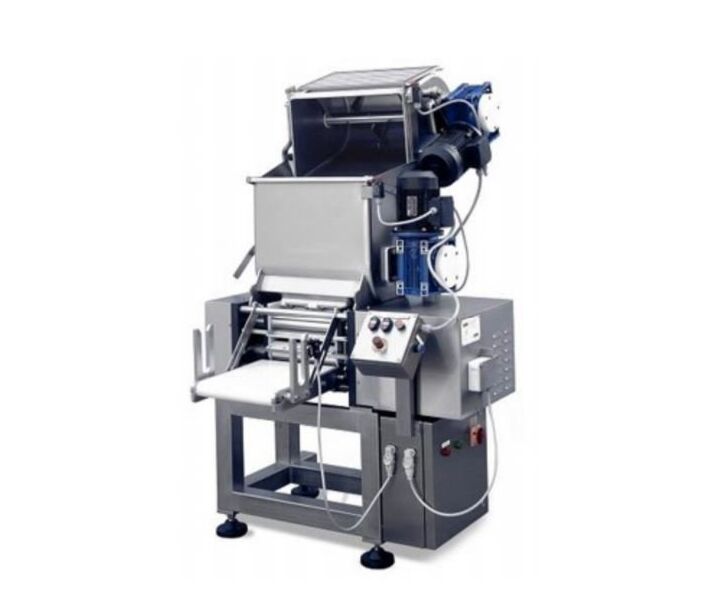

The automatic sheeter CA 310 E-DV - 120 is a machine to produce cold laminated pasta sheets. The sheet can be wound on reels for further calibration or can be used to feed ravioli, tortellini, cappelletti, tagliatelle, and other forming machines set in a continuous production line. The extremely sturdy structure and technical solutions adopted such as tempered and lubricated gears, coaxial and multistage motor-gearbox, sealed bearings lubricated for life, guarantee a noiseless running with reduced maintenance exigencies.
The hygienic design incorporates an openable twin sidewall construction, with external sidewalls in anodized aluminum and internal sidewalls in stainless steel, which creates a distance between the bearings and the working area so any possible pasta contamination is avoided and any product can be easily removed. There are no sharp edges and incorporates a tilting hopper and an openable lower door for deep and quick cleaning. All food contact parts are made in stainless steel or food-grade plastic material.
The machine is provided with 2 motor-driven tanks, one back tipping tank by a pneumatic piston and one front-loading hopper (both with removable shaft), double bearings on external sidewalls, double passage gremola, final calibrating rollers of 120 mm. diameter all in stainless steel and a conveyor belt with a device to wound the pasta on reels automatically. Command, control, and safety devices according to CE standards. On request, it can be provided with an electronic speed variator for the automatic adjustment of the production line. It is also available the version with external sidewalls in stainless steel mod. CA 310 EL-DV – 120.
Features:
- This is a machine that produces cold laminated pasta sheets
- Its external sidewalls are constructed in anodized aluminum and the internal sidewalls are built of stainless steel material
- Its features prevent contamination
- Any product can be easily removed
- There are no sharp edges and incorporates a tilting hopper
- An openable lower door for deep and quick cleaning
- All food contact parts are made in stainless steel or food-grade plastic material
- Provided with 2 motor-driven tanks; a back tipping tank by the pneumatic piston and a front-loading hopper (both with removable shaft)
Specifications
Brand | Tecna |
---|---|
MFR # | CA 310 E-EV-120 |
