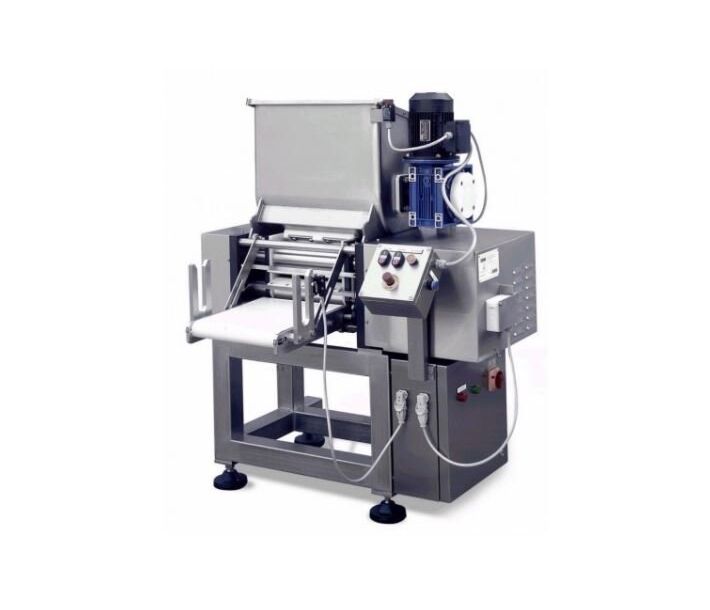

TECNA Automatic Kneader Sheeter CA 540 E-120

SKU
60000-004
  • Produce cold laminated pasta sheet
  • Can be wound on wheels for further calibration or can be used to feed ravioli, tortellini, cappelletti, tagliatelle, and more
  • Openable twin sidewall
  • All food contact parts are made in stainless steel or food-grade plastic material
Free Shipping

Kneader Sheeter CA 540 E-120

The automatic sheeter CA 540 E - 120 is a machine to produce cold laminated pasta sheets. The sheet can be wound on reels for further calibration or can be used to feed ravioli, tortellini, cappelletti, tagliatelle and other forming machines set in a continuous production line, combined with a separate lifting mixer/kneader tank IR 70 E, with a single-shaft discontinuous mixer IS 70 or continuous mixing machines. The extremely sturdy structure and technical solutions adopted such as tempered and lubricated gears, coaxial and multistage motor-gearbox, sealed bearings lubricated for life, guarantee a noiseless running with reduced maintenance exigencies.

The hygienic design incorporates an openable twin sidewall construction, with external sidewalls in anodized aluminum and internal sidewalls in stainless steel, which creates a distance between the bearings and the working area so any possible pasta contamination is avoided and any product can be easily removed. There are no sharp edges and incorporates a tilting hopper and an openable lower door for deep and quick cleaning. All food contact parts are made in stainless steel or food-grade plastic material.

The machine is provided with a motor-driven loading hopper with the removable shaft, double bearings on external sidewalls, double passage gremola, final calibrating rollers of 120 mm. diameter all in stainless steel, and a conveyor belt with a device to wound the pasta on reels automatically. Command, control, and safety devices according to CE standards.

It is also available the version with external sidewalls in stainless steel mod. CA 540 EL – 120.

Features:

  • Produces cold laminated pasta sheets
  • The extremely sturdy structure and technical solutions adopted such as tempered
  • Guarantee a noiseless running with reduced maintenance exigencies
  • The hygienic design incorporates an openable twin sidewall construction, with external sidewalls in anodized aluminum and internal sidewalls in stainless steel
  • No sharp edges and incorporates a tilting hopper
  • Features an openable lower door for deep and quick cleaning
  • All food contact parts are made in stainless steel or food-grade plastic material

Specification

Resources and Download

SPECSHEET ( 189.98 kB)
