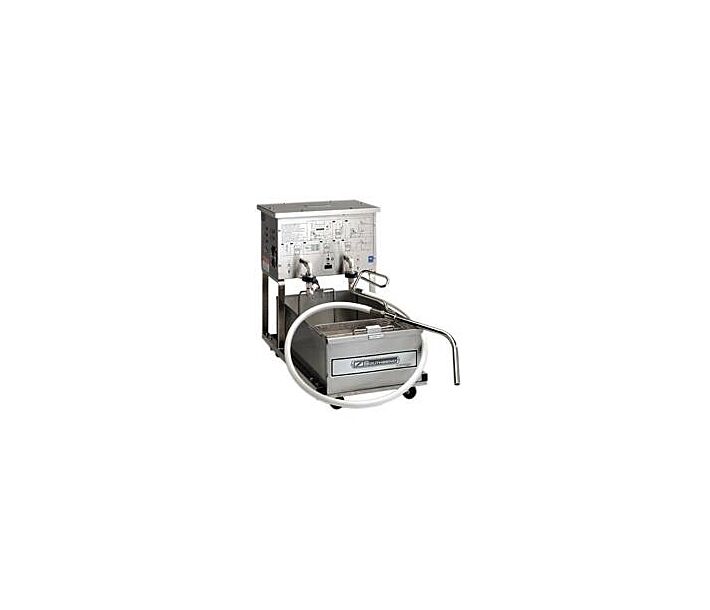

Southbend SBF14 Portable Filter on Casters

CAD $4,936.00
  • 120 V, 1/3 HP heavy duty motor and pump assembly
  • Oil Capacity: 24.95 kg / 55 lbs
  • Welded steel frame mounted on four ball-bearing swivel casters for easy movement
  • Stainless steel construction and nickel-plated finish
This product qualifies for Free Shipping
icon-0 icon-1 icon-2 icon-3

Southbend SBF14 Portable Filter on Casters


  • The filter pan and pump assembly enclosure are constructed of polished stainless steel
  • All other surfaces are a nickel-plated finish
  • Welded steel frame mounted on four ball-bearing swivel casters for easy movement
  • 1/3 HP heavy-duty motor and pump assembly
  • 5 foot flexible, sanitary, high-temperature return hose equipped with a nozzle
  • The return hose nozzle is nickel-plated steel with a non-heat conducting handle
  • Extra-large filter area for large fryer filtering
  • 10 Foot oil-proof supply cord
  • Comes standard with a filter pan, cover, filter catch basket, sample filter paper (flat), sample filter powder packets, (1) sediment cleanout scoop, and (1) 7-inch drain nipple.

Typical Application:

  • Mobile filtering of all of your frying appliances
  • The filter can be used with gravity drain fryers

Standard Construction Specifications:

  • Controls:
    • On/Off switch for operating pump
  • Operations:
    • Four swivel caster design allows for easy movement and storage of the filter
    • Quick disconnect hose connections make it easy to assemble and disassemble
    • Low profile allows for easy placement under the fryer drain
    • Easy to remove filter media assembly for quick and easy filter paper replacement
    • Lift out filter pan for easy cleaning


More Information
NEMA 5-15P
Brands Southbend
Height In Inches 24
Width in Inches 17
Depth In Inches 30
Horsepower 1/3
Voltage 120V
Hertz 60
Amps 10
Product Type Oil Filtering Machine

Resources and Download

SPECSHEET ( 436.13 kB)
