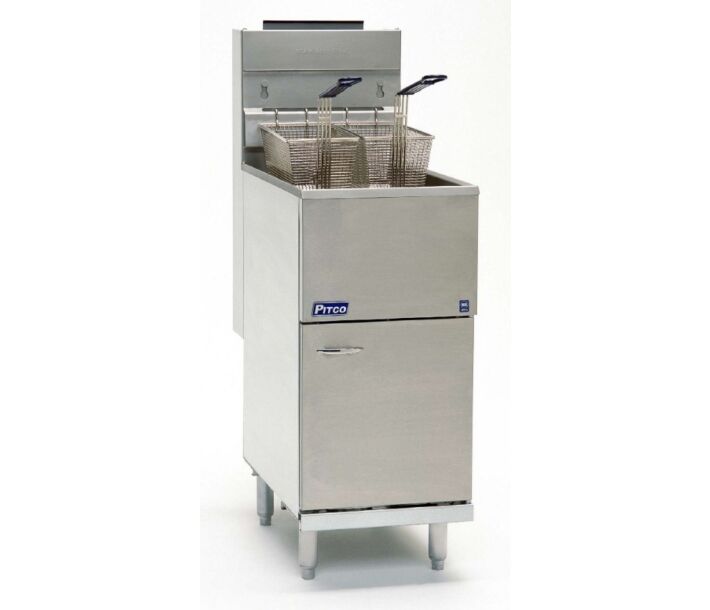

Pitco 40C+S Gas Fryer

Pitco quality at a value price, the model 40C+ is a Freestanding, stand-alone fryer with the welded tank. Smooth machine peened finish ensures easy cleaning. Long-lasting, high-temperature alloy stainless steel heat baffles are mounted in the heat exchanger tubes to provide maximum heating and combustion efficiency.

STANDARD SPECIFICATIONS

CONSTRUCTION

• Welded tank with an extra smooth peened finish ensures easy cleaning
• Long-lasting, high-temperature alloy stainless steel heat baffles are mounted in the heat exchanger tubes to provide maximum heating and combustion
• The standing pilot light design provides a ready flame when heat is required.
• Stainless steel front, door, sides, and back.

CONTROLS

• The thermostat maintains selected temperature automatically between 200°F (93°C) and 400°F (190°C).
• Integrated gas control valve acts as a manual and pilot valve, automatic pilot valve, gas filter, pressure regulator, and automatic main valve.
• The gas control valve prevents gas flow to the main burner until the pilot is established and shuts off all gas flow automatically if the pilot flame goes out.
• The temperature limit switch safely shuts off all gas flow if the fryer temperature exceeds the upper limit.

STANDARD ACCESSORIES

• Tank-stainless steel
• Cabinet-stainless steel front, door, sides, and back
• One tube rack
• One built-in flue deflector
• Two twin size baskets
• One drain extension
• One drain line clean-out rod
• Removable basket hanger for easy cleaning
• 6” (15.2 cm) adjustable legs

OPERATIONS

• Front 1-1/4″ NPT drain valve, for quick draining
