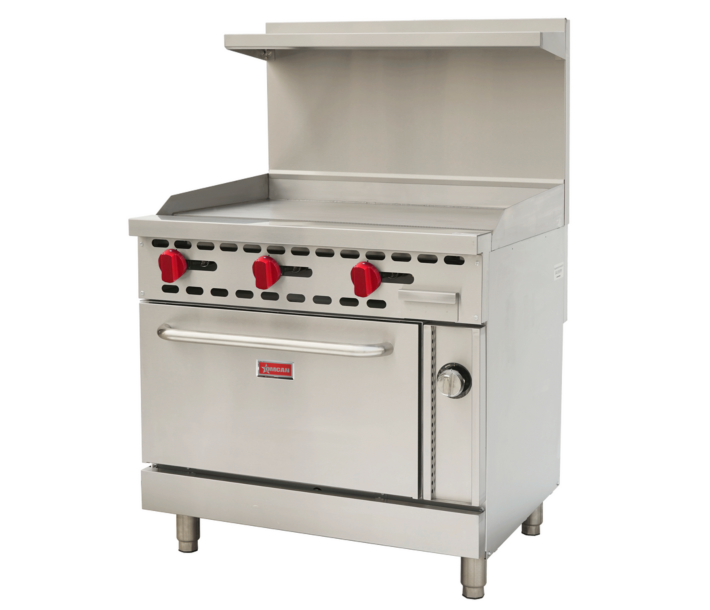

Omcan 36" Commercial Natural Gas Range with 36" Griddle and Standard Oven - 93,000 BTU

SKU
34000-190
Free Shipping within GTA

Omcan 36" Commercial Natural Gas Range with 36" Griddle and Standard Oven - 93,000 BTU

SKU
34000-190
CAD $2,937.52

As low as CAD $110.45/mo. with EconoLease. Learn more

Have Questions? Talk to our experts.
chat-icon
Mon-Fri 8:30AM -
7:00PM EST
Product Highlights
  • Stainless steel front and galvanized sides
  • U shape griddle burner with 21,000 BTU/hr for natural gas and 23,000 BTU/hr for LPG
  • Thermostat (250℉- 550 ℉ ) controlled oven
  • Welded frame structure for best stability
  • 36 ” x 22″ griddle plate(5/8″ thickness) with splash guard

Certifications

icon-0 icon-1

Resources and Download

SPECSHEET ( 711.39 kB)
INSTRUCTION MANUAL ( 1.63 MB)
PARTS BREAKDOWN ( 1.06 MB)
TECHNICAL DRAWINGS ( 436.54 kB)
Product Overview

36" Commercial Natural Gas Range with 36" Griddle and Standard Oven - 93,000 BTU

The Omcan 36" Commercial Natural Gas Range is a powerhouse in any professional kitchen, featuring a robust 36" griddle and a high-performance standard oven. With a total output of 93,000 BTU, this range boasts a U-shaped griddle burner that delivers 21,000 BTU/hr for natural gas and 23,000 BTU/hr for LPG. The oven's thermostat ranges from 250℉ to 550℉, ensuring precise temperature control for all your baking needs. Constructed with a welded frame for optimal stability, the range also includes a 36" x 22" griddle plate with a 5/8" thickness and splash guard, adjustable heavy-duty legs, and a convenient oil collector with a handle.

The U-shaped oven burner provides 30,000 BTU/hr, complemented by a thermal coupling safety valve for enhanced security. Additional features include a stainless steel oven door with superior insulation, a durable stainless steel handle for the bottom oven, and an easy-access kick plate for servicing. Compatible with a ¾” NPT gas connection (gas hose sold separately), this range is a versatile and reliable choice for any commercial kitchen.

FEATURES:

  • Stainless steel front and galvanized sides
  • U shape griddle burner with 21,000 BTU/hr for natural gas and 23, BTU/hr for LPG
  • Thermostat (250℉- 550 ℉ ) controlled oven
  • Welded frame structure for best stability
  • 36 ” x 22″ griddle plate(5/8″ thickness) with splash guard
  • Adjustable heavy-duty legs
  • Oil collector with handle
  • U-Shape oven burner with 30,000 BTU/hr
  • Thermal coupling safety valve for the oven
  • Stainless steel oven door with good insulation
  • Stainless steel handle for bottom oven
  • Kick plate at the bottom, easy access for servicing
  • Compatible with ¾” NPT gas connection (Gas Hose sold separately)

Specifications

More Information
Country of ManufactureChina
Fuel TypeNatural Gas
MFR #48189
BrandOmcan
Total Height56.7
Total Width36
Total Depth32.6
BTU per HourTotal: 93,000 BTU | Griddle: 21,000 BTU x 3 | Oven: 30,000 BTU
Temperature Range250°F - 550°F | OVEN TEMP. RANGE: 121.1°C - 287.8°C (250 - 550°F)
Burner StyleNatural Gas (NG)
Number of Burners3 Burner
Number of Ovens1 Standard Oven
Gas Inlet Size¾” NPT gas connection
Exterior MaterialStainless Steel Front and Galvanized Sides
Net Weight456 lbs. | 207 kg.
Warranty1 YEAR PARTS AND LABOR
Product TypeNatural Gas Range
