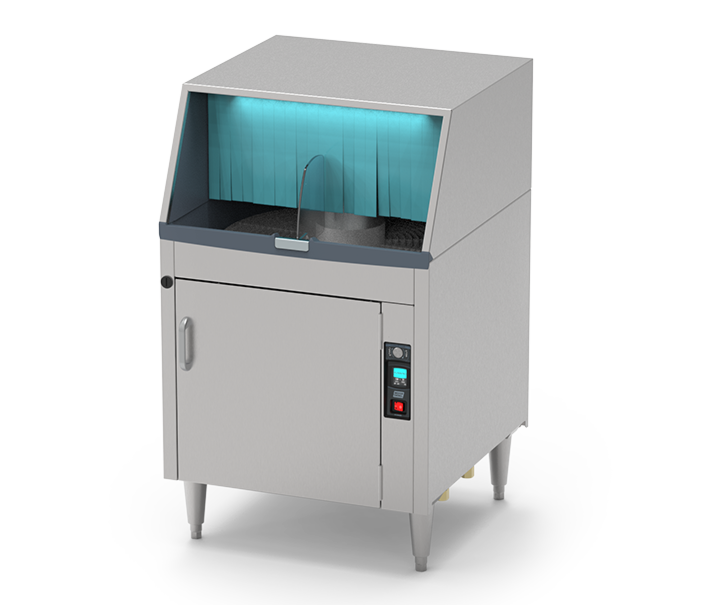

Moyer Diebel DFM8 Rotary Type Fully Automatic Glasswashing Machine 208/230V/60/1
Moyer Diebel DFM8 Rotary Type Fully Automatic Glasswashing Machine 208/230V/60/1
As low as CAD $400.67/mo. with EconoLease. Learn more
-
Integrated Tank & Wash Chamber – Operator-centric design for easy access during daily use.
-
Auto Fill, Clean, & Drain – Requires no operator action.
-
AI Water Quality Monitoring - Refreshes wash water as needed during operation without interruption.
-
Revolutionary EZ-Clip Wash & Rinse Arms – Design for easy removal and cleaning.
-
38% Less Water Consumption – Industry-leading water savings.
-
Compact 24”Wide Design
-
Smart Controls – On board machine diagnostics.
-
2” LCD Screen – For intuitive operation.
-
Multi Speed System (low/med/high) – Direct drive conveyor motor with anti-jam, and adjustable speed control to produce premium results for all soil conditions for all glassware.
-
Touchless Conveyor Shut-Off – Advanced sensor technology reduces risk of damage to delicate glassware.
-
Self-Flushing Rinse Chamber – Reduces cleaning requirements during operation due to channeling water to reduce soil build up.
-
Solid State Sensors – No mechanical switches and no adjustments required.
*Product also comes in 115V/60/1, must be specified at the time of purchase.
Lead time is required for the order, please contact Sales for more details.
Certifications
Resources and Download
Moyer Diebel DF 8M is a high‑efficiency, fully automatic rotary glasswashing machine engineered for busy bars and restaurants. It features an integrated tank and wash chamber with auto fill/clean/drain, plus AI‑driven water quality monitoring. The compact 24″‑wide unit uses EZ‑Clip wash and rinse arms and consumes 38% less water. Smart, multi‑speed conveyor controls (low/med/high) allow optimal cleaning for various glassware, while touchless conveyor shutdown protects fragile items. Additional highlights include a self‑flushing rinse chamber, solid‑state sensors, double‑walled construction for quieter operation, 12″ glass clearance, cool final rinse, polypropylene conveyor, LED lighting, and optional integrated chemical monitoring. It delivers approximately 1,200 pieces of 2.5" glasses per hour.
Best-In-Class Core Features:
- 12" Glass clearance - fits taller stemware
- Double-walled Construction - for quiet operation
- Cool Final Rinse - glasses are ready for immediate use
- Polypropylene Conveyor - Prevents chipping of delicate glassware
- Smart LED lights - Customizable lighting for operator conditions and integrated notifications
Optional Premium Feature:
- Intergrated Chemical Monitoring - Optimal results for washing and snitizing (factory installed only)
Accessories (sold separately):
- Drain Tray and waste collector (DFWC) - SKU 72000-482
- Quick disonnect package (incl. casters)
- casters; set of four - 2 locking, 2 regular
- Bar Mat (size 23 5/8" x 17")
Technical specifications:
- Electrical: 230V/60/1
- Hot water connection: 1/2" IPS. Flow Pressure 25-95 PSI
- Cold water connection: 1/2" IPS. Flow pressure 25-95 psi
- Water consumption:
- Cold water (appx.) 6.06 Liter / Minute
- Hot water (intial fill) 11.35 Liter
- Max use (appx) 45.42 liters / hour
- Temperature:
- inlet water (hot): 61-69ºC / 140-160ºF
- inlet water (cold): 24ºC / 75ºF
- Heating: Tank heat, electric
- Conveyor Movement: Clockwise
UPC: 62828801270000662
Specifications
| Country of Manufacture | Canada |
|---|---|
| MFR # | DF M8 |
| Brand | Moyer Diebel |
| Total Depth | 24 1/2" |
| Total Width | 23 7/8" |
| Total Height | 39" |
| Capacity | wash up to 1200 glasses / hour if your glasses are 2.5" in diameter (actual capacity may vary depending on the size of the glass opening) |
| NEMA | 6-15P with 6 ft plug in cord |
| Amps | 15amp breaker |
| Hertz | 60 |
| Voltage | 230 |
| Phase | 1 |
| Drain Size | 1-1/2 tailpiece (Connect to drain size according to local plumbing code) |
| Water Usage | Max. use 45.42 Liters / h or 12 US Gal / hr |
| Warranty | 1 Year Limited Warranty |
| Product Type | Rotary automatic Glasswasher |
