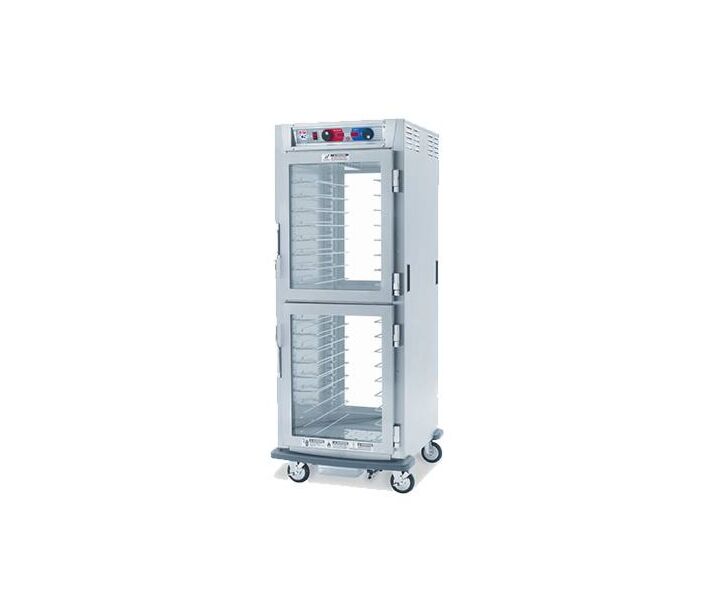

9 Series Controlled Humidity Heated Holding and Proofing Cabinet

• Control: The intuitive 9 Series solid state controller provides continuous monitoring of both temperature and humidity, providing accurate control over the internal environment of the cabinet, resulting in better food quality. Actual temperature and relative humidity are measured, displayed, and controlled.
• Performance: Rapid heat-up and recovery times, and precise humidity control, are achieved with a digitally controlled dual-element ducted heating and humidity system. Intelligent power distribution maximizes efficiency and assures food is held at the desired temperature. Low water sensor and low temperature alarm assure cabinet is performing safely.
• Temperature Priority: The C5 9 Series controller prioritizes heat generation over humidity generation assuring the cabinet holds food at the desired temperature, promoting food safety.
• Configurations:
  • Sizes: Full Height, 3 /4 Height, 1 /2 Height, and Under Counter.
  • Doors: Full Length Solid, Full Length Clear, Dutch Solid, Dutch Clear. All are lift off and field reversible.
  • Reach-In or Pass-Thru (not available on under counter and 3 /4 height).
  • Materials: Stainless Steel and Aluminum.
• Capacity: Universal slides hold 18"x26" sheet pans or 12"x20" steam table pans on adjustable 11 /2" increments. Lip load slides hold 18"x26" sheet pans on 11 /2" increments. Optional Wire Shelf interfaces with universal slide system to accommodate small items and pans.
• Reliability: Reliability and durability are designed into C5 from the ground up. High-quality components and robust construction provide a long life of service and worry-free use.
• Top-Mounted Controls: Ergonomic user-friendly controls are mounted at the top of the cabinet for easier access, better readability, to prevent damage, and to simplify cleaning.
• NAFEM Data Protocol: The C5 controller is NDP capable.
• ENERGY STAR: Full Height, 3 /4 Height, and 1 /2 Height Stainless Steel reach-in models with solid doors are ENERGY STAR rated

9 Series Controller:

• Temperature: Measures & displays actual cabinet temperature
• Intuitive: Easy-to-use controls that anyone can understand.
• Humidity: Measures and displays actual cabinet relative humidity.
• Temperature Priority: 9 Series controller generates heat before humidity for food safety.
• Low-Water Alarm: A safety feature that indicates when water is needed. Water element will not be energized when water is low.
• Low-Temp Alarm: Assures cabinet is operating at desired temperature.
• Recall & Memory: View settings at the touch of a button. Settings are saved when turned off.
