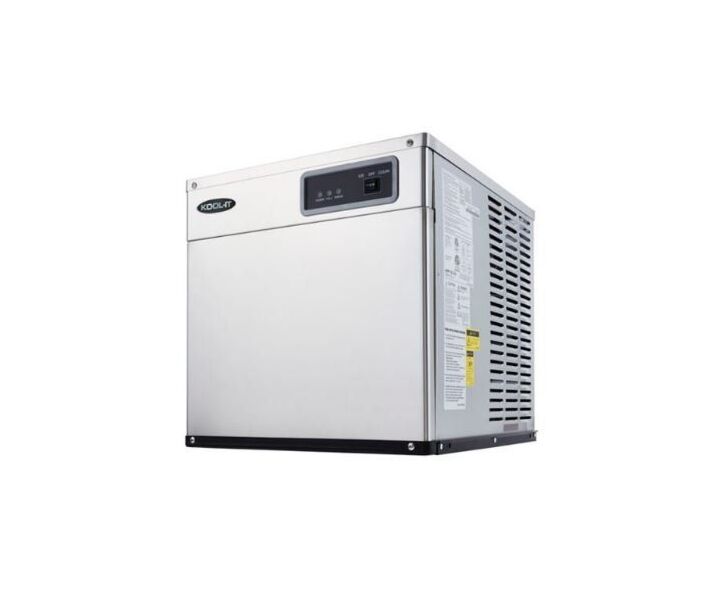

Kool It 22" Modular Ice Maker with 436lbs Ice Production per Hr - KCM-450-AH

This product is no longer available. We have left this page up for reference only
Product Status:
icon-0 icon-1 icon-2


  • Created to endure the every day use of your commercial environment
  • Simple plug-in installation
  • High quality construction to ensure reliability, longevity and product durability



  • Improved evaporator freezing surface allowing for increased production and lower operating costs



  • Designed for efficiency and dependability
  • Stainless steel exterior for superior resilience to rust
  • Simple to use
  • Control board with on-board self-diagnostics
  • Internal safety switches monitor and protect the refrigeration system
  • Up to 446 lbs of ice production per 24 hrs
  • 10 foot cord set with a NEMA 5-15P

*50 Hz comes without a cord set or plug



Model number: KCM-450-AH

Electrical: 115 / 60 / 1

BTU’s per hour: 5200

Max fuse size or HACR circuit breaker amps: 15 A

Net weight lb/kgs: 163/74

Shipping weight:  192/87

Refrigerant: R-404a

Energy consumption kWh / 100 lb 90 ?F (32 ?C) / 70 ?F (21 ?C): 6.34 KWH

Water usage / 100 lb of ice @ 90°F air / 70°F water: 19 gallons / 72 litres

Plumbing: Water Inlet: 3/8” Drain: 3/4”

Cabinet WDH: 30” x 24” x 23.50”

Shipping WDH: 32.50” x 27” x 30.25”

Clearance around the unit: left, right and top: 8”, rear: 8”

Do not place near ovens, grills or any high heat producing equipment

Warranty: 3 years parts and labor

Compressor: 5 years parts and 3 years labor

Resources and Download

SPECSHEET ( 651.34 kB)
WARRANTY ( 103.24 kB)
