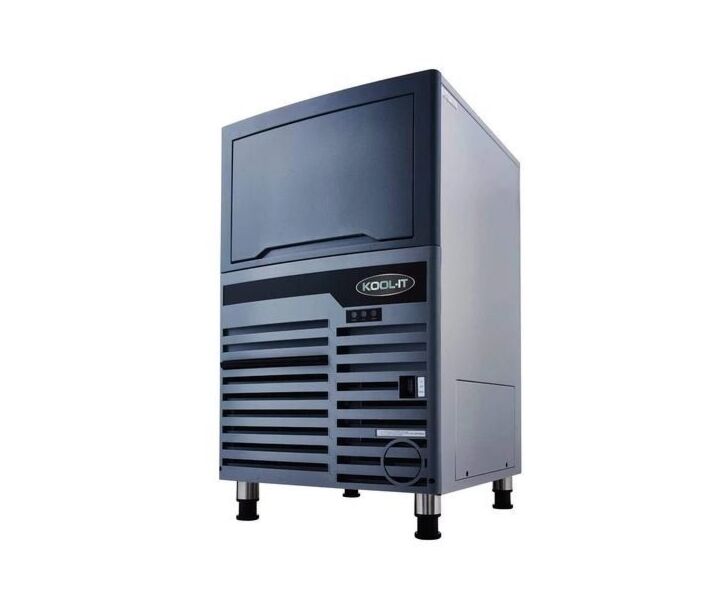

Kool It 21" Undercounter Ice Maker with 107lbs Ice Production per Hr KCU-110-AH

This product is no longer available. We have left this page up for reference only
Product Status:
icon-0 icon-1 icon-2


  • Created to endure the every day use of your commercial environment
  • Simple plug-in installation
  • Fits easily under standard countertops
  • High quality construction to ensure reliability, longevity and product durability
  • 4.5” adjustable stainless steel feet included (can be adjusted to a height of 6” high)



  • High density urethane insulation reduces the ice melting inside the bin
  • Improved evaporator freezing surface allowing for increased production and lower operating costs



  • Designed for efficiency and dependability
  • Built in carbon water filter
  • Stainless steel exterior for superior resilience to rust
  • Simple to use
  • Control board with on-board self-diagnostics
  • Internal safety switches monitor and protect the refrigeration system
  • Easy maintenance - removable bin cover allows for easy access to the inner components
  • Up to 107 lbs of ice production per 24 hrs
  • 27 lbs of ice storage
  • Ice scoop included
  • 10 foot cord set with a NEMA 5-15P

*50 Hz comes without a cord set or plug




Model number: KCU-110-AH

Electrical: 115 / 60 / 1

BTU’s per hour: 1750

Max fuse size or HACR circuit breaker amps: 15 A

Net weight lb/kgs: 113/52

Shipping weight:  128/58

Refrigerant: R-134a

Energy consumption kWh / 100 lb 90 ?F (32 ?C) / 70 ?F (21 ?C): 9.39 KWH

Water usage / 100 lb of ice @ 90°F air / 70°F water: 19 gallons / 72 litres

Plumbing: Water Inlet: 3/8” Drain: 3/4”

Cabinet WDH: 21” x 23” x 34.70”

Shipping WDH: 24” x 25.75” x 34.25”

Clearance around the unit: left, right and top: 1”, rear: 3”

Do not place near ovens, grills or any high heat producing equipment

Warranty: 3 years parts and labor

Compressor: 5 years parts and 3 years labor
