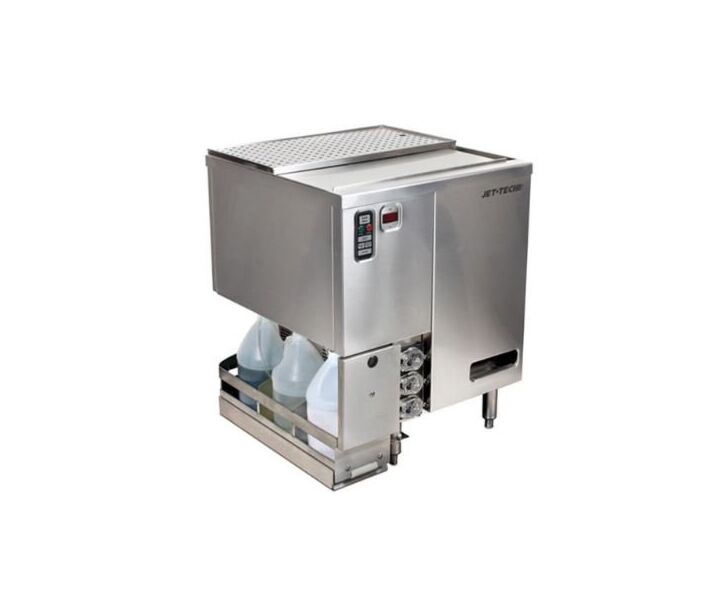

Jet-Tech XG-37 Low Temp Potary Glasswasher - 26 Racks/hr

SKU
41000-177
This product is no longer available. We have left this page up for reference only
  • Glass Washer - Underbar type
  • Low temperature - chemical sanitizing
  • 2 minute and 15-second cycle
  • Rotary design
  • 24" x 24" footprint cabinet
  • Stainless steel finish
Product Status:
Discontinued
Certifications
icon-0 icon-1

XG-37 Low Temp Potary Glasswasher - 26 Racks/hr

Whether you operate a bakery, hotel, supermarket, school, meat department, hospital, or laboratory, these highly productive dishwashers will ensure perfect kitchenware hygiene; specially designed to effectively ensure total coverage and contribute to impeccable cleanliness. Ensure washing of every kind of wares, which is how our Total Clean Concept will make your life a whole lot easier!

Ideally suited for smoothie and ice-cream shops, small spaces, counter-top bars, mobile carts, food courts, lounges, boats, caterers, dental offices, day-care operators, guest houses, room service, espresso bars, kiosks, laboratories, and much more!!

FEATURES:

  • Glass Washer - Underbar type
  • Low temperature - chemical sanitizing
  • 2 minute and 15-second cycle
  • Rotary design
  • 24" x 24" footprint cabinet
  • Clockwise rotation
  • Removable sliding cover & drainboard
  • Automatic detergent, sanitizer, rinse aid dispensers
  • Stainless steel finish

STANDARD FEATURES:

  • Fill and dump style cycle uses less water and energy than traditional rotary glasswashers.
  • Conveyor easily lifts out for cleaning access.
  • Drain stopper is controlled by a quiet and reliable gear motor with a linkage cam instead of a noisy solenoid valve.
  • Chemical fill is easily visible by sliding the cover open during the fill portion of the wash and rinse cycle.
  • Stationary spray box simply unlatches for easy visual inspection and cleaning.
  • Incoming water line has a built-in air gap so no separate vacuum breaker accessory is required.
  • Special mounting bracket allows for easy service access to the water recirculating pump.
  • Unit plugs into standard 120V electrical outlet for an easy installation.
  • Computer controlled fill cycle allows for 75°F (24°C) rinse, providing clean glasses that are cool to the touch.
  • The sliding cover and cold water rinse prevent steam from escaping during and after the cycle.
  • Unique drainboard top provides an integrated glassware landing area. Exclusive design with side notch provides space for three one-gallon chemical containers within the 24" by 24" footprint.
  • Conveyor advance switch rotates conveyor one-half turn for easy loading and unloading of glassware Covers and drainboard top are easily removable for cleaning access.
  • Pre-programmed de-liming cycle for easy removal of mineral deposits during maintenance (de-liming agent must be added).
  • Conveyor and stationary spray boxes are easily removed for cleaning and visual inspection.
  • Automatic peristaltic metering pumps accurately dispense detergent, sanitizer, and rinse aid.

Specification

More Information
MFR # XG-37
Brands JET-TECH
Depth In Inches 24
Width in Inches 24
Height In Inches 30.8
Amps 3.5
Hertz 60
Voltage 120V
Phase 1
Door Style Solid Door
Drain Size 1.5"
Water Inlet Size 1/2"
Water Usage 3.0 gal/cycle
Warranty 1-Year Parts & Labour
Product Type Dishwashing Equipment
Meat Slicer Size 34.22

Resources and Download

SPECSHEET ( 1.48 MB)
PARTS ( 1.33 MB)
ELECTRICAL ( 186.42 kB)
