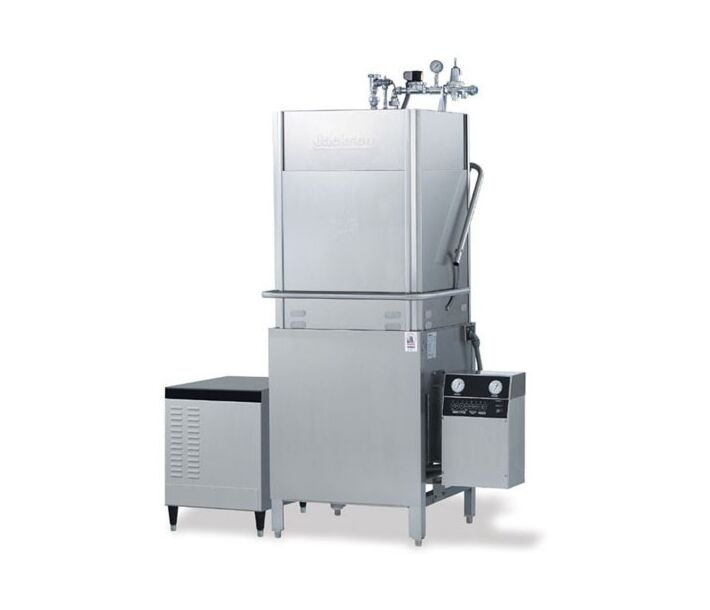

Jackson TempStar® HH/GPX Dishwasher

SKU
27000-040
This product is no longer available. We have left this page up for reference only

Special Order Item

Product Status:
Discontinued

The TempStar® HH/GPX’s high hood allows it to function as both a dishwasher and a small pan washer. With four selectable time cycles, the TempStar HH/GPX is capable of cleaning 53 racks per hour, while using 1.36 gallons of water per rack. All TempStar models are field convertible from straight through to corner, are constructed from stainless steel, and include adjustable bullet feet.

  • High temperature sanitizing door-type dishmachine
  • Gas tank heat
  • Cleans 53 racks per hour
  • Only 1.36 gallon of water per rack
  • Four selectable time cycles

High temperature sanitizing, single rack door-type dishmachine.  Higher hood, single rack with dual functionality-serves as a dishwasher and a small pan washer.  Cleans 53 racks per hour, using only 1.36 gallon of water per rack.  Fully automatic 62-second cycle.  Four selectable time cycles for warewashing flexibility and performance.  27" clearance accommodates large sheet pans and 60qt mixing bowls.  Exclusive dual counter-rotating lower wash arms.  Auto-fill/auto-start.  Specially designed stainless steel nozzles provide superior cleaning action.  Self-draining stainless steel pump (no cast iron or plastics) assures no detergent residue between wash and final rinse cycles.  Top mounted controls are easy to read and access.  Built-in pressure regulator comes standard.  Hi-l;imit thermostat and low water protection.  External gas booster heater-capable of minimum 70°F(21°C) temperature rise-recirculates water through stainless steel coils in wash tank to maintain 150°F (66°C) degree minimum temperature.  Large scrap tray.  Uses standard 20"x20"racks.  Door safety switch.  Delime/manual wash switch.  Exhaust vent fan control.  Field convertible for straight-throughto corner and vice versa.  Front stainless steel dress panel.  Efficient 2 HP wash pump motor.  Durable 304 stainless steel construction.  Adjustable bullet feet.



STANDARD FEATURES:

  • Multi-cycle timer (Extra Heavy, Heavy, Medium, Normal)
  • Extended 15 second high tempera- ture rinse provides superior cover- age and rapid drying
  • 20-3/4" wide X 27" high (527 mm X 686 mm) opening accommodates 18" X 26" (457 mm X 660 mm) sheet pans and 60 quart mixing bowls
  • Auto-ll/auto-start
  • Door switch
  • External gas booster heater - Capable of minimum 70?F (38.9?C) degree temperature rise - Recirculates water through stain- less steel coils in wash tank to maintain 150?F (66?C) degree minimum temperature
  • Hi-limit thermostat and low water protection
  • Pressure regulator
  • Side mounted controls
  • Unique lower counter-rotating wash arms and upper wash arm provide optimum spray coverage and superior cleaning action
  • Unique split-door design for insta- llations with low ceiling heights
  • Large scrap basket
  • Self-draining stainless steel pump
  • Detergent/rinse additive signal connection fuse box
  • Vent fan contro
  • Delime/manual wash switch
  • Adjustable bullet feet
  • Uses standard 20” X 20” (508 mm X 508 mm) racks
  • Front dress panel


SPECIFICATIONS:

  • Uses 1.36 gallons (5 liters) of 180?F (82?C) water per rack
  • Total automatic normal cycle - 62 seconds
  • 53 racks per hour normal cycle
  • 2 hp wash pump motor
  • Single point connections for all utilities
  • Field convertible from straight through to corner and vice versa
  • Durable stainless steel construction

Specification

More Information
MFR # TempStar HH/GPX
Brands Jackson Warewashing Systems
Width in Inches 25.25
Height In Inches 76.75

Resources and Download

SPECSHEET ( 385.74 kB)
