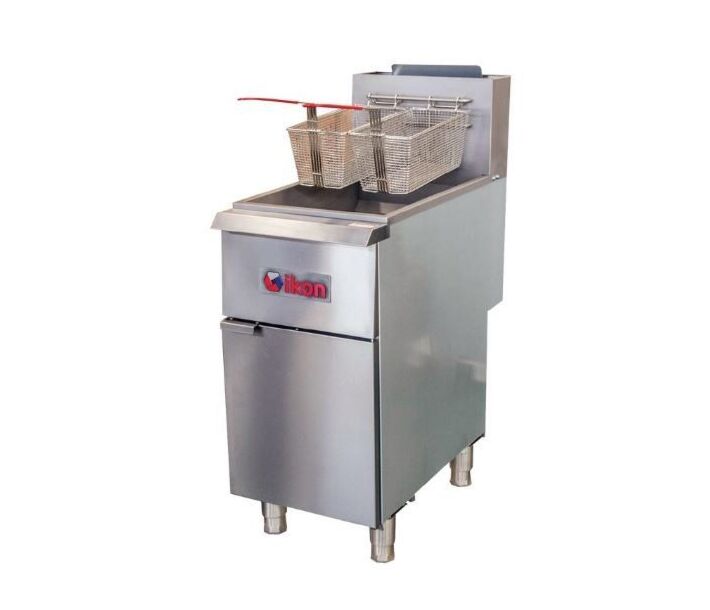

Ikon IGF-75/80 Gas Fryer Floor Model

SKU
16000-242
CAD $1,586.64
  • Oil Capacity: 34.02 - 36.29 kg / 75 - 80 lbs
  • Two fryer baskets with snap action thermostatic control from 200 - 400°F
  • Five 30,000 BTU tube burners
  • Stainless steel construction and galvanized steel sides, four 6" adjustable stainless steel legs
Certifications
icon-0 icon-1

Ikon IGF-75/80 Gas Fryer Floor Model

The Ikon all-purpose fryers feature outstanding reliability and durability, capable of cooking a wide variety of fried foods with consistent uniformity and great taste. Three highly efficient cast iron burners and stainless steel tubes create a large heat transfer area for even heat distribution. Our durable temperature probe senses temperature changes and activates a quick burner response.

The temperature for the IGF-75/80 ranges from 200°F (93°C) to 400°F (204°C). Includes Millivolt safety control system.

Every inch of the frypot and cold zone can be cleaned and wiped down by hand. The large cold zone and forward sloping bottom help collect and remove sediment from the frypot to safeguard oil quality and support routine frypot cleaning.

***This commercial deep gas fryer has 6" swivel casters that are optional (2 lockings, 2 non-locking)***

STANDARD FEATURES

  • The Ikon Gas Fryer line has a tube heat exchange design that incorporates fast temperature recovery and a large cold zone.
  • Stainless steel fry tanks are completely pressure blasted (peened) for a smoother finish and easy cleaning.
  • 30,000 BTU / burner
  • Models: 3, 4, & 5 tube
  • Millivolt (snap action) thermostat, 200°F - 400°F
  • Stainless steel front and door
  • The sides and back are galvanized steel
  • Large cold zone to trap food particles
  • 1-1/4” dia. full port drain valve for fast and complete oil draining
  • 4, 6” adjustable Stainless Steel legs standard, casters optional
  • Tank is fully peened for smoother welds & easy cleaning
  • Drainpipe holder attached to the inside door
  • Twin nickel-plated baskets
  • Superior construction, finish, & appearance
  • Available in Natural gas (NG) or Liquid Propane (LP)

barcodeUPC: 6997390009321

Specification

More Information
MFR # IGF-75/80
Brands IKON
Height In Inches 39.4
Width in Inches 21
Depth In Inches 34.3
BTU per Hour 150,000
Temperature Range 200 to 400 degree F
Number of Burners 5
Number of Fryer Baskets 2
Gas Inlet Size 3/4"
Control Type Thermostatic
Capacity 75 to 80 lbs of oil
Net Weight 210 lbs / 95.5 kg
Product Type Gas Floor Fryer

Resources and Download

SPECSHEET ( 647.53 kB)
